33-08BP01 (A-85) - Toro Rear-Engine Riding Mower (1985) ELECTRICAL SYSTEM Parts Diagram

Rear-Engine Riding Mower

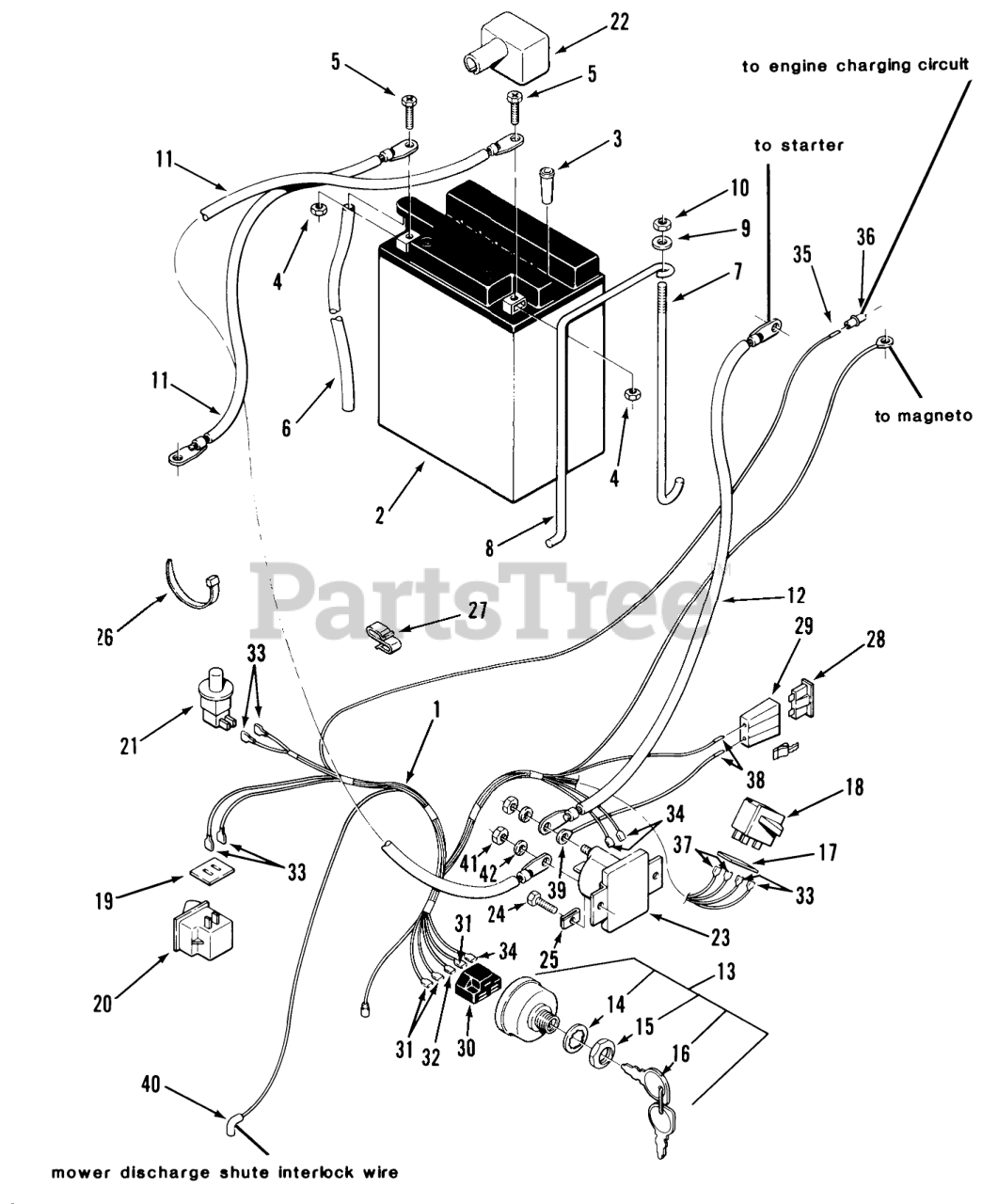

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Toro 110382

Wiring Harness

$

$

Not available

2

Toro 110379

BATTERY 120CCA

$

$

Not available

3

Toro 110427

ADAPTER

$

$

Not available

4

Toro 110377

Metric Nut 6mm x 1.Omm

$

$

Not available

5

Toro 110378

Metric Bolt 6mm x 1.Omm x 12mm
(Superseded to 111185)

$

$

Not available

6

Toro 110424

HOSE BATTERY DRAIN

$

$

Not available

7

Toro 106911

HOOK-BATTERY RETAINR

$

$

Not available

8

Toro 110381

Front Battery Hold Down Rod

$

$

Not available

9

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

10

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 10

0

11

Toro 108281

Wire
(Superseded to 111078)

$22.99

$

Usually ships in 3-6 days

0

12

Toro 109548

Solenoid To Engine Starter Cable

$

$

Currently unavailable

13

Toro 103991

ASSY-SWITCH IGNITION

$47.99

$

In Stock, only 3 left!

0

14

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 4 left!

0

15

Toro 101884

NUT

$7.49

$

In Stock, only 2 left!

0

16

Toro 7262

Key-EL
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 12

0

17

Toro 110501

SHIELD-DIRT (DPDT)

$

$

Not available

18

Toro 109327

PTO Interlock Switch
(Superseded to 98-2392)

$67.99

$

Usually ships in 3-6 days

0

19

Toro 110502

SHIELD-DIRT SPST

$7.99

$

Usually ships in 3-6 days

0

20

Toro 103480

SWITCH INTERLOCK

$

$

Not available

21

Toro 109329

SWITCH (N.C.)

$

$

Not available

22

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

23

Toro 110167

Solenoid
(Superseded to 740207)

$34.99

$

In Stock, Qty 11

0

24

Toro 960151

Screw
(Superseded to 3234-13)

$1.49

$

In Stock, only 4 left!

0

25

Toro 106370

Speed Nut

$

$

Not available

26

Toro 100571

PLASTIC TIE

$

$

Not available

27

Toro 519337

CLIP-CABLE

$1.99

$

Usually ships in 3-6 days

0

28

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

29

Toro 109117

AUTO-FUSEBLOCK TERM

$

$

Not available

30

Toro 105302

CONNECTOR-5 WAY-SERV
(Superseded to 32160-014)

$5.99

$

In Stock, Qty 7

0

31

Toro 102651

Terminal

$

$

Not available

32

Toro 105306

TERMINAL-TAB RCPT

$3.49

$

Usually ships in 3-6 days

0

33

Toro 518077

Terminal

$

$

Currently unavailable

34

Toro 8765

Connector

$

$

Not available

35

Toro 518074

Terminal

$

$

Not available

36

Toro 107831

SOCKET HOUSING

$

$

Not available

37

Toro 109378

Wire Terminal (Part of 1)

$

$

Currently unavailable

38

Toro 108995

TERMINAL-FUSE

$

$

Not available

39

Toro 518007

Wire Terminal (Part of 1)

$

$

Not available

40

Toro 518246

Terminal Part of 5

$

$

Not available

41

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 10

0

42

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, Qty 5

0
