33-08BP01 (A-85) - Toro Rear-Engine Riding Mower (1985) ENGINES Parts Diagram

Rear-Engine Riding Mower

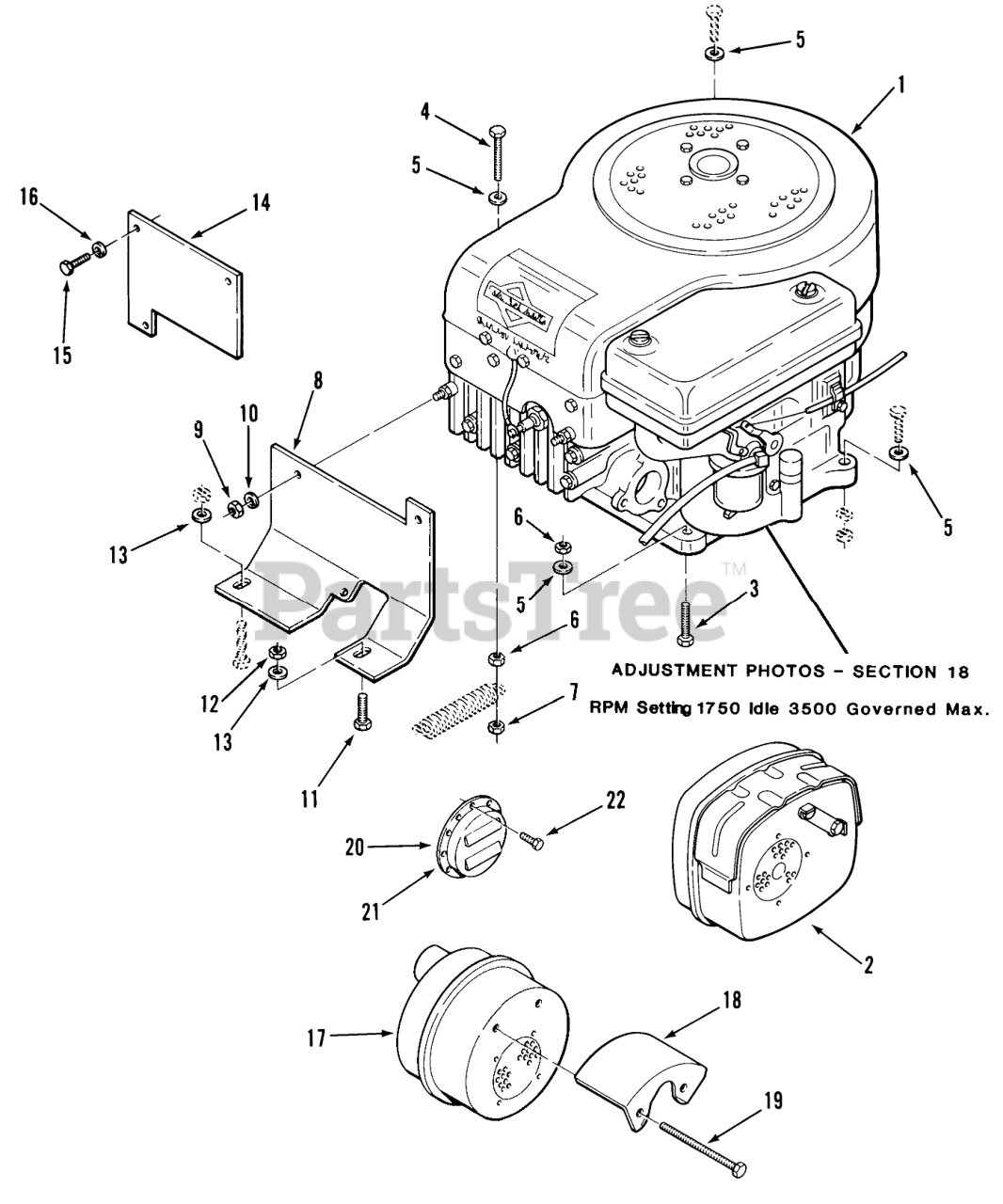

ENGINES Parts Diagram

  • Title

1

Toro 110357

Engine-08 HP B&S Model 190707 Type 2167-01 A-85 ONLY

$

$

Currently unavailable

1

Toro 110358

Engine-11 HP B&S Model 252707 Type 0682-01 A-115 ONLY

$

$

Currently unavailable

2

Toro 107805

Muffler A-85 ONLY

$

$

Currently unavailable

3

Toro 908021

Bolt
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

4

Toro 908023

Bolt 5/16-18 x 2
(Superseded to 322-10)

$0.99

$

In Stock, Qty 10

0

5

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 10

0

6

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

7

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

8

Toro 110360

BRACKET ENGINE HE R

$

$

Not available

9

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

10

Toro 90082

Lockwasher

$

$

Currently unavailable

11

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 7

0

12

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

13

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

14

Toro 110439

PLATE SPRING B

$

$

Not available

15

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

16

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, Qty 5

0

17

Toro 110465

Muffler With Shield A-115 ONLY

$

$

Not available

18

Toro 110466

Heat Shield A-115 ONLY

$

$

Not available

19

Toro 908146

Bolt, 5/16-18 x 1/4
(Superseded to 322-20)

$1.99

$

Usually ships in 3-6 days

0

20

Louvered Deflector A-115 ONLY

$

$

Not available

21

Louvered Deflector A-85 ONLY

$

$

Not available

22

Screw

$

$

Not available
