33-08BP01 (A-85) - Toro Rear-Engine Riding Mower (1985) WHEELS AND TIRES Parts Diagram

Rear-Engine Riding Mower

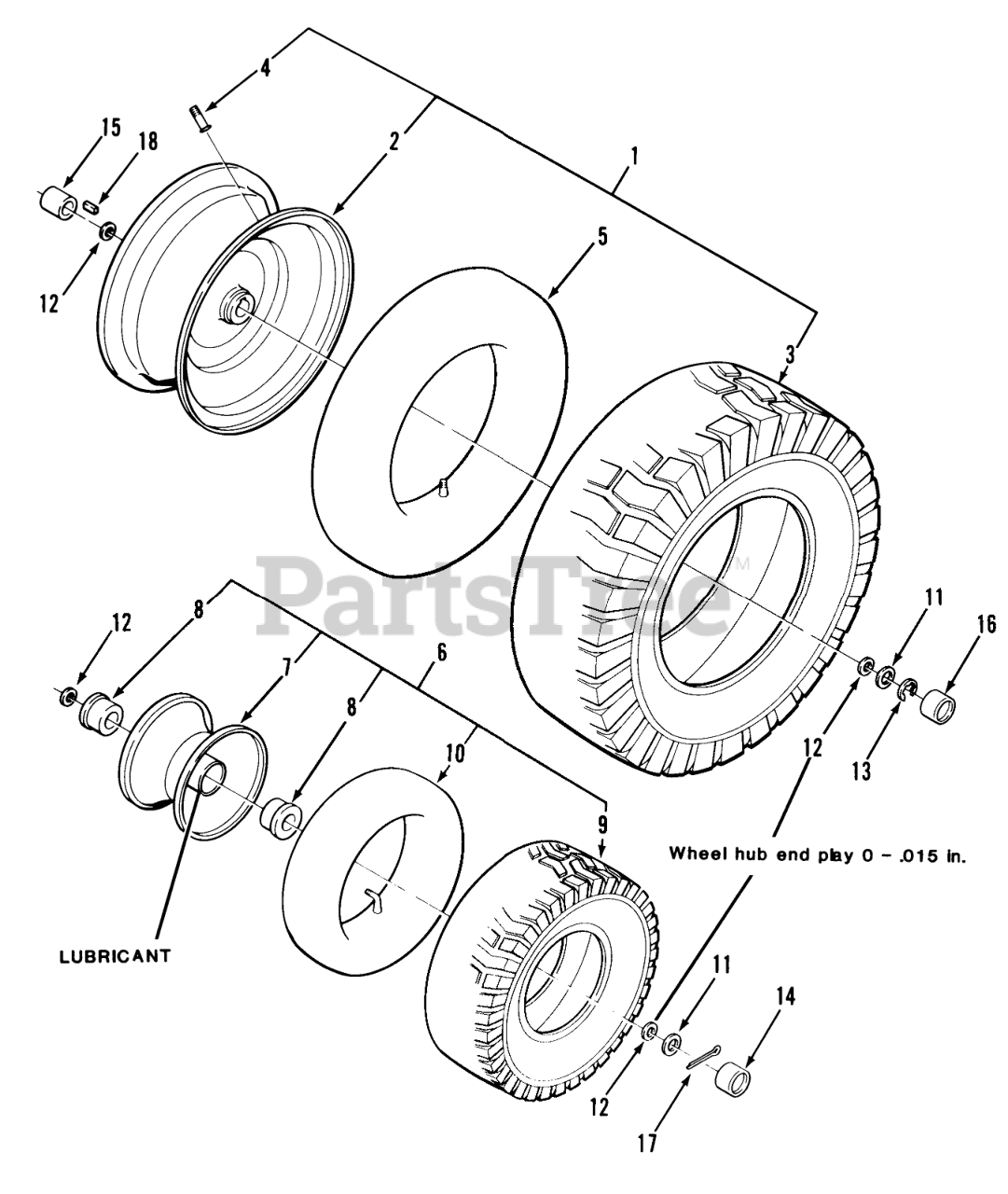

WHEELS AND TIRES Parts Diagram

  • Title

1

Toro 110385

Rear Wheel And Tire Assy

$

$

Not available

2

Toro 110386

Rear Wheel

$

$

Not available

3

Toro 9792

TIRE TURF SAVER 16X6.50-8

$

$

Not available

4

Toro 5108

VALVE

$6.99

$

In Stock, Qty 13

0

5

Toro 105293

TUBE-INNER
(Superseded to 11-2819)

$

$

Not available

6

Toro 110388

Front Wheel And Tire Assy

$

$

Not available

7

Toro 110389

Front Wheel (Includes Bushings And Grease Fitting)

$

$

Not available

8

Toro 110391

BEARING-WHEEL

$7.99

$

In Stock, Qty 6

0

9

Toro 100030

TIRE TURF SAVER FT

$

$

Not available

10

Toro 100041

TUBE

$

$

Not available

11

Toro 109262

WASHER-FLAT

$3.49

$

In Stock, only 2 left!

0

12

Toro 920250

WASHER

$

$

Not available

13

Toro 104636

E Ring
(Superseded to 32151-48)

$1.99

$

In Stock, Qty 20+

0

14

Toro 109154

HUB CAP-FLAT BLACK

$

$

Not available

15

Toro 110387

LH AXLE SPACER

$

$

Not available

16

Toro 109261

HUB CAP

$

$

Not available

17

Toro 932018

Cotter Pin
(Superseded to 3272-12)

$0.99

$

In Stock, Qty 20+

0

18

Toro 1120

SQ KEY

$2.99

$

Usually ships in 3-6 days

0
