33-08X301 (108-R) - Toro Rear-Engine Riding Mower (1985)

Rear-Engine Riding Mower

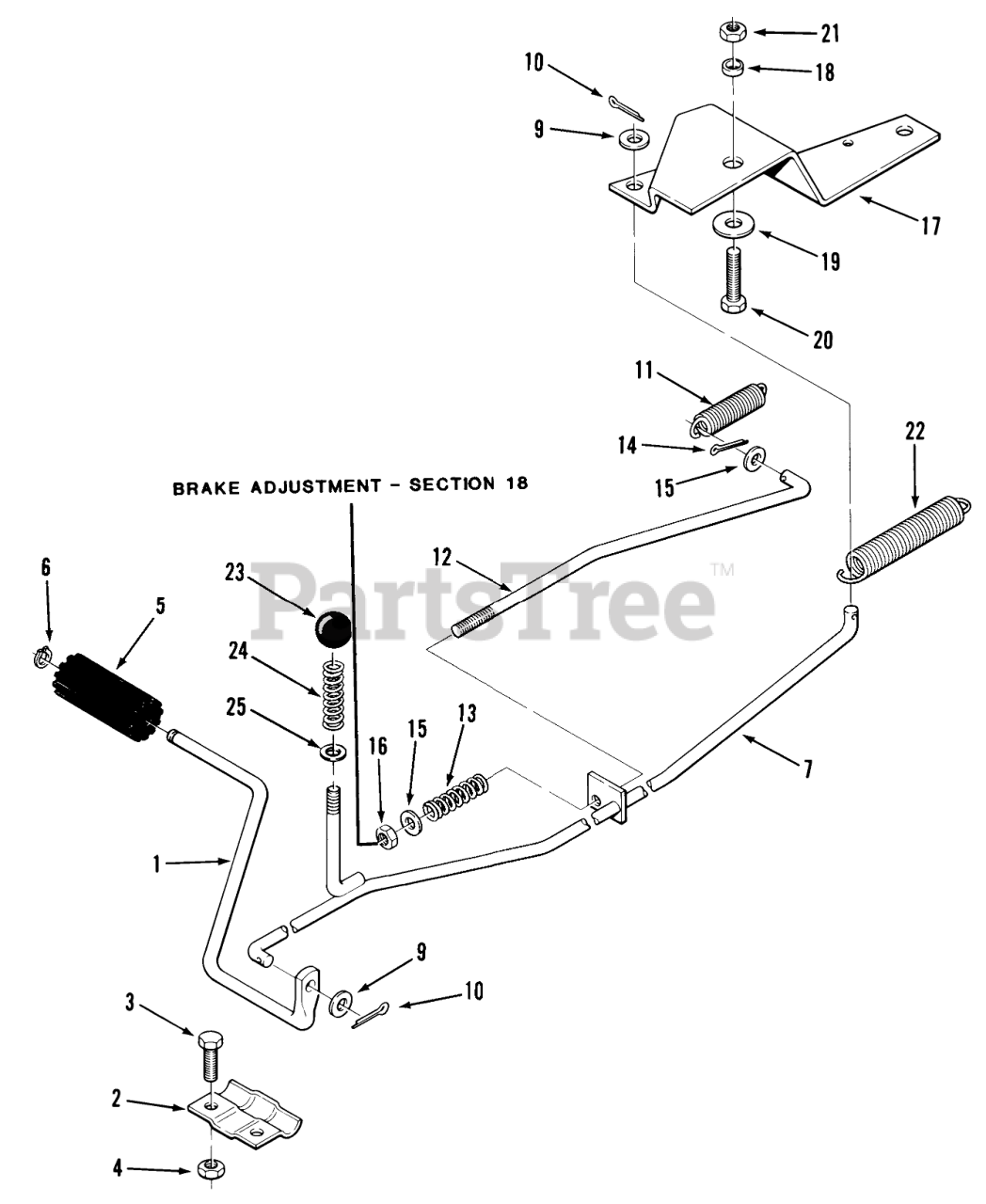

33-08X301 (108-R) - Toro Rear-Engine Riding Mower (1985) > Parts Diagrams (16) > CLUTCH, BRAKE LINKAGE

  • Title
110340

1

ROD-BRAKE PEDAL R

Part# 110340

OEM Warranty Repair Part for Toro

Not available

108861

2

SPINDAL SUPPORT R

Part# 108861

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 3 to 5 business days

Your price: $25.48

908032

3

Bolt

Part# 908032 (Superseded to 323-4)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.86

915663

4

NUT

Part# 915663 (Superseded to 3296-39)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.00

108854

5

PAD-CLUTCH/BRKE PDL

Part# 108854

OEM Warranty Repair Part for Toro

Not available

106649

6

Grip Ring

Part# 106649 (Superseded to 32151-11)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.06

111068

7

Clutch Rod Assy

Part# 111068 (Superseded to 111715)

OEM Warranty Repair Part for Toro

Not available

920009

9

Washer

Part# 920009 (Superseded to 3256-24)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.49

932008

10

Cotter Pin

Part# 932008 (Superseded to 3272-6)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.21

103628

11

SPRING-EXTENSION

Part# 103628

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.98

110911

12

ROD BRAKE

Part# 110911

OEM Warranty Repair Part for Toro

Not available

110912

13

Brake Spring

Part# 110912

OEM Warranty Repair Part for Toro

Not available

932008

14

Cotter Pin

Part# 932008 (Superseded to 3272-6)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.21

920009

15

Washer

Part# 920009 (Superseded to 3256-24)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.49

915663

16

NUT

Part# 915663 (Superseded to 3296-39)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.00

110363

17

LEVER CLUTCH R

Part# 110363

OEM Warranty Repair Part for Toro

Not available

111108

18

SPACER

Part# 111108

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 3 to 5 business days

Your price: $45.63

2844

19

WASHER

Part# 2844

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.95

908035

20

Bolt

Part# 908035 (Superseded to 323-7)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.16

915663

21

NUT

Part# 915663 (Superseded to 3296-39)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.00

111159

22

SPRING EXTENSION

Part# 111159

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 3 to 5 business days

Your price: $8.58

111070

23

KNOB

Part# 111070 (Superseded to 93-5312)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 3 to 5 business days

Your price: $6.68

104841

24

SPRING

Part# 104841

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.36

920230

25

WASHER NYLON

Part# 920230

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 3 to 5 business days

Your price: $1.47
