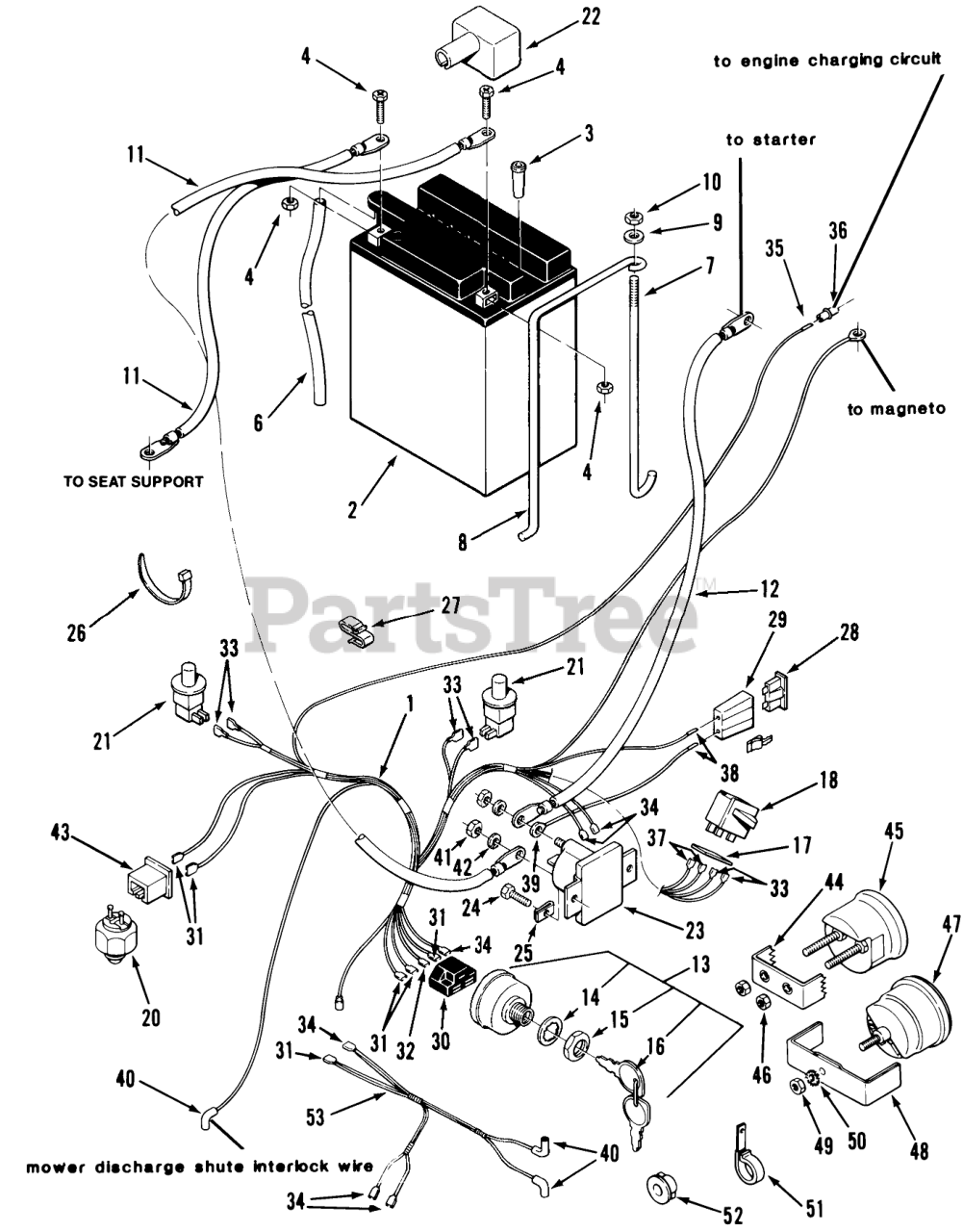

33-08X301 (108-R) - Toro Rear-Engine Riding Mower (1985) > All Diagrams & Kits (16) > ELECTRICAL SYSTEM-ELECTRIC START

  • Title
111133

1

WIRING HARNESS

Part# 111133

OEM Warranty Repair Part for Toro

Not available

110379

2

BATTERY 120CCA

Part# 110379

OEM Warranty Repair Part for Toro

Not available

110427

3

ADAPTER

Part# 110427

OEM Warranty Repair Part for Toro

Not available

111185

4

ASSY BATTERY HDW

Part# 111185

OEM Warranty Repair Part for Toro

Not available

110424

6

HOSE BATTERY DRAIN

Part# 110424

OEM Warranty Repair Part for Toro

Not available

106911

7

HOOK-BATTERY RETAINR

Part# 106911

OEM Warranty Repair Part for Toro

Not available

110381

8

Front Battery Hold Down Rod

Part# 110381

OEM Warranty Repair Part for Toro

Not available

920007

9

USE 920007P WASHER

Part# 920007 (Superseded to 3256-22)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

915111

10

Nut

Part# 915111 (Superseded to 3217-5)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.53

111078

11

WIRE -BLACK

Part# 111078

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 3 to 5 business days

Your price: $14.76

111075

12

WIRE ASM

Part# 111075

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 3 to 5 business days

Your price: $15.23

103991

13

ASSY-SWITCH IGNITION

Part# 103991

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $39.12

920160

14

LOCKWASHER

Part# 920160 (Superseded to 9201604)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.37

101884

15

NUT

Part# 101884

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 3 to 5 business days

Your price: $5.02

7262

16

Key-EL

Part# 7262 (Superseded to 62-7770)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.34

110501

17

SHIELD-DIRT (DPDT)

Part# 110501

OEM Warranty Repair Part for Toro

Not available

109327

18

PTO Interlock Switch

Part# 109327 (Superseded to 98-2392)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 3 to 5 business days

Your price: $43.73

109330

20

SWITCH-BALL

Part# 109330

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 3 to 5 business days

Your price: $42.89

109329

21

SWITCH (N.C.)

Part# 109329

OEM Warranty Repair Part for Toro

Not available

111045

22

COVER-TERMINAL

Part# 111045

OEM Warranty Repair Part for Toro

Not available

110167

23

Solenoid

Part# 110167 (Superseded to 740207)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $26.82

960151

24

Screw

Part# 960151 (Superseded to 3234-13)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.00

106370

25

Speed Nut

Part# 106370

OEM Warranty Repair Part for Toro

Not available

100571

26

PLASTIC TIE

Part# 100571

OEM Warranty Repair Part for Toro

Not available

519337

27

CLIP-CABLE

Part# 519337

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.24

109355

28

FUSE-BLADE, 15 AMP

Part# 109355

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.14

109117

29

AUTO-FUSEBLOCK TERM

Part# 109117

OEM Warranty Repair Part for Toro

Not available

105302

30

CONNECTOR-5 WAY-SERV

Part# 105302 (Superseded to 32160-014)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.28

102651

31

Terminal

Part# 102651

OEM Warranty Repair Part for Toro

Not available

105306

32

TERMINAL-TAB RCPT

Part# 105306

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.09

518077

33

Terminal

Part# 518077

Not available

8765

34

Connector

Part# 8765

OEM Warranty Repair Part for Toro

Not available

518074

35

Terminal

Part# 518074

OEM Warranty Repair Part for Toro

Not available

107831

36

SOCKET HOUSING

Part# 107831

OEM Warranty Repair Part for Toro

Not available

109378

37

Wire Terminal (Part of 1)

Part# 109378

Not available

108995

38

TERMINAL-FUSE

Part# 108995

OEM Warranty Repair Part for Toro

Not available

518007

39

Wire Terminal (Part of 1)

Part# 518007

OEM Warranty Repair Part for Toro

Not available

518246

40

Terminal Part of 5

Part# 518246

OEM Warranty Repair Part for Toro

Not available

915111

41

Nut

Part# 915111 (Superseded to 3217-5)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.53

920081

42

Washer

Part# 920081 (Superseded to 3253-3)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 3 to 5 business days

Your price: $0.10

106035

43

Connector Housing M

Part# 106035

OEM Warranty Repair Part for Toro

Not available

109650

44

CLAMP MOUNTING

Part# 109650

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 3 to 5 business days

Your price: $9.35

110741

45

Voltmeter (w/109650)

Part# 110741 (Superseded to 117176)

OEM Warranty Repair Part for Toro

Not available

5924

46

HEX NUT 10-32 E.S.

Part# 5924

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 3 to 5 business days

Your price: $1.15

110853

47

Hourmeter 111-5 Only (Includes Clamp & Hdrw.)

Part# 110853 (Superseded to 113469)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 3 to 5 business days

Your price: $275.32

108768

48

HOUR METER CLAMP

Part# 108768

OEM Warranty Repair Part for Toro

Not available

915538

49

Hex Nut

Part# 915538 (Superseded to 3217-26)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 3 to 5 business days

Your price: $1.14

920120

50

Lockwasher

Part# 920120 (Superseded to 3255-17)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.35

105490

51

CLAMP

Part# 105490

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.19

938018

52

BUSHING-NYLON .75

Part# 938018

OEM Warranty Repair Part for Toro

Not available

110893

53

Volt & Hourmeter Harness

Part# 110893

OEM Warranty Repair Part for Toro

Not available
