33-08X301 (108-R) - Toro Rear-Engine Riding Mower (1985) SHEET METAL Parts Diagram

Rear-Engine Riding Mower

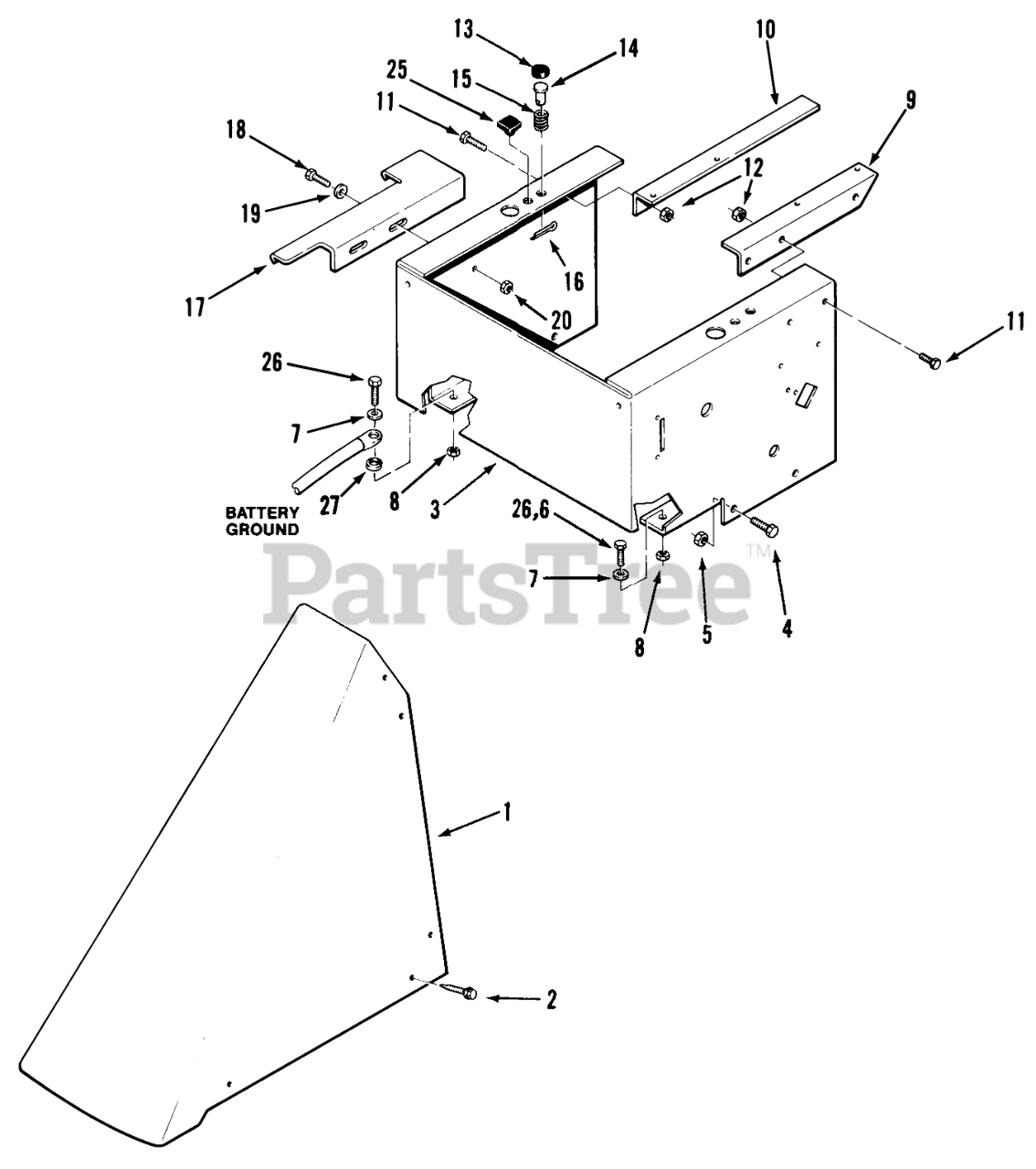

SHEET METAL Parts Diagram

  • Title

1

Toro 110323

COVER CONSOLE R

$

$

Not available

2

Toro 110430

HEX WASHER STS

$

$

Not available

3

Toro 111065

Seat Support

$

$

Not available

4

Toro 913182

Bolt 3/8-16 x 3/4 GRD 5

$

$

Currently unavailable

5

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

6

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

7

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 10

0

8

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

9

Toro 110353

ANGLE TANK SUPP. R

$

$

Not available

10

Toro 110354

ANGLE TANK SUPP. R

$

$

Not available

11

Toro 908016

Bolt
(Superseded to 322-2)

$2.49

$

In Stock, Qty 20+

0

12

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

13

Toro 106331

CUP

$

$

Not available

14

Toro 106449

PIN

$6.99

$

Usually ships in 3-6 days

0

15

Toro 104841

SPRING

$2.49

$

In Stock, Qty 5

0

16

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

17

Toro 110470

PLATE SHIFT R

$

$

Not available

18

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

19

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 10

0

20

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

25

Toro 111071

BUMPER SJ5514 BLACK

$3.49

$

In Stock, Qty 5

0

26

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0
