33-11B502 (111-5) - Toro Rear-Engine Riding Mower (1986) Frame Parts Diagram

Rear-Engine Riding Mower

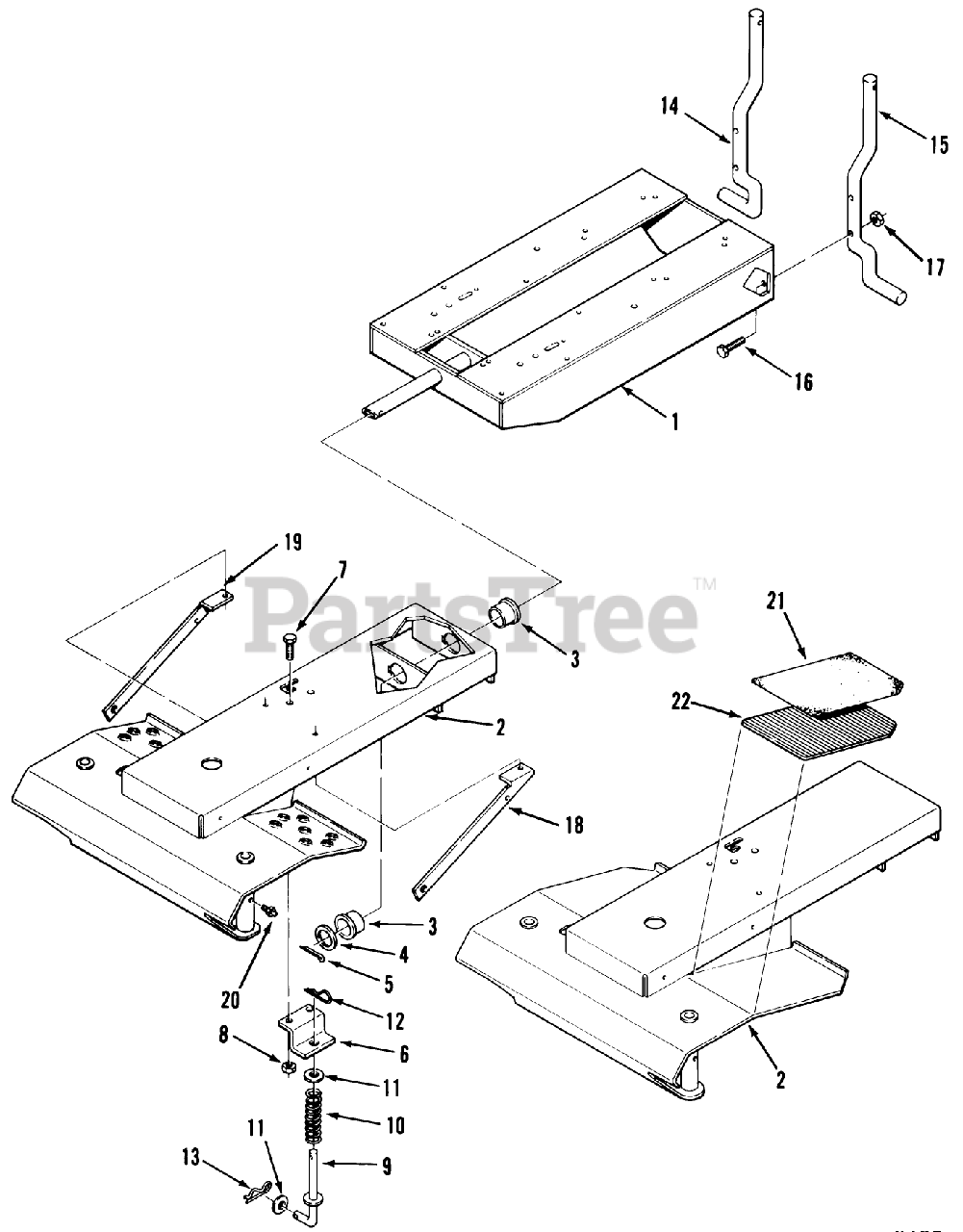

Frame Parts Diagram

  • Title

1

Toro 111151

DISCONTINUED

$

$

Not available

1

Toro 111301

See Supercession: 112502
(Superseded to 112502)

$982.99

$

Usually ships in 3-6 days

0

2

Toro 111085

DISCONTINUED

$

$

Not available

2

Toro 111303

DISCONTINUED

$

$

Not available

3

Toro 110311

DISCONTINUED

$

$

Not available

4

Toro 110426

DISCONTINUED

$

$

Not available

5

Toro 932037

DISCONTINUED
(Superseded to 9320374)

$

$

Not available

6

Toro 110406

DISCONTINUED

$

$

Not available

7

Toro 908033

See Supercession: 110242
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

8

Toro 915663

See Supercession: 3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

9

Toro 110913

DISCONTINUED

$

$

Not available

10

Toro 109229

SPRING-COMPRESSION

$71.99

$

Usually ships in 3-6 days

0

11

Toro 920009

See Supercession: 3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

12

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

13

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 5

0

14

Toro 111088

REAR ROD RH *B

$

$

Not available

15

Toro 111087

REAR ROD LH *B

$256.99

$

Usually ships in 3-6 days

0

16

Toro 911439

DISCONTINUED

$

$

Not available

17

Toro 915662

See Supercession: 3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

18

Toro 110961

DISCONTINUED

$

$

Not available

19

Toro 110962

DISCONTINUED

$

$

Not available

20

Toro MW1455

See Supercession: 302-26
(Superseded to 302-26)

$7.49

$

Usually ships in 3-6 days

0

21

Toro 111300

DISCONTINUED

$

$

Not available

21

Toro 111299

DISCONTINUED

$

$

Not available

22

Toro 111324

PAD FOOTREST RH

$63.99

$

Usually ships in 3-6 days

0

22

Toro 111325

DISCONTINUED

$

$

Not available
