33-11B502 (111-5) - Toro Rear-Engine Riding Mower (1986) Front Axle And Steering Parts Diagram

Rear-Engine Riding Mower

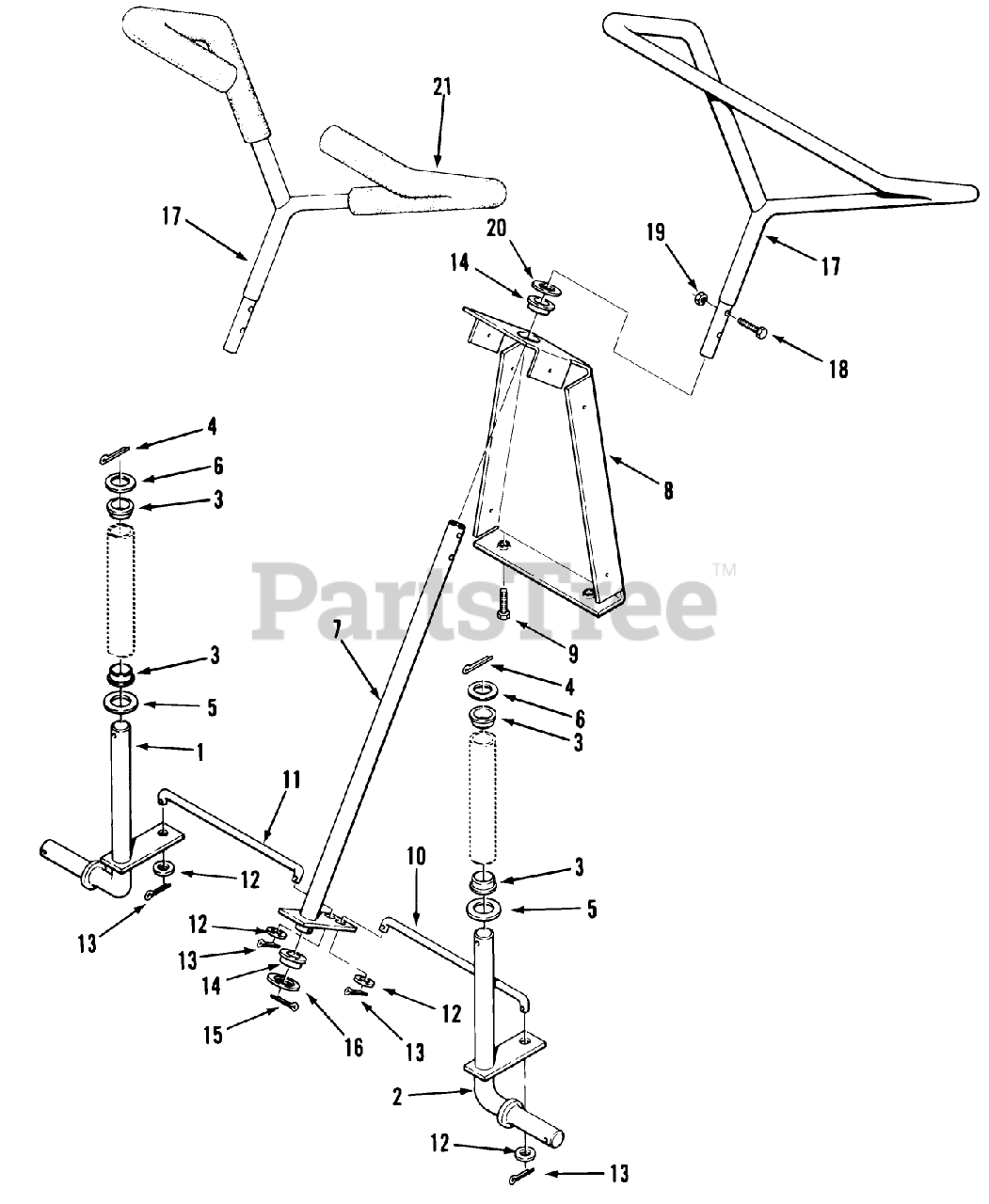

Front Axle And Steering Parts Diagram

  • Title

1

Toro 110314

SPINDLE ASSY RH *R

$224.99

$

Usually ships in 3-6 days

0

2

Toro 110313

SPINDLE ASSY LH *R

$224.99

$

Usually ships in 3-6 days

0

3

Toro 111102

BUSHING

$

$

Not available

4

Toro 932018

See Supercession: 3272-12
(Superseded to 3272-12)

$0.99

$

In Stock, Qty 8

0

5

Toro 920015

See Supercession: 3256-28
(Superseded to 3256-28)

$3.99

$

In Stock, Qty 20+

0

6

Toro 1278

WASHER

$2.49

$

In Stock, Qty 20+

0

7

Toro 110317

DISCONTINUED

$

$

Not available

8

Toro 110320

DISCONTINUED

$

$

Not available

8

Toro 110923

DISCONTINUED

$

$

Not available

8

Toro 110924

DISCONTINUED

$

$

Not available

9

Toro 926720

Screw
(Superseded to 9264964)

$1.99

$

Usually ships in 3-6 days

0

10

Toro 110321

DISCONTINUED

$

$

Not available

11

Toro 110322

DISCONTINUED

$

$

Not available

12

Toro 920224

Washer-3/8

$

$

Currently unavailable

13

Toro 932008

See Supercession: 3272-6
(Superseded to 3-2726)

$

$

Not available

14

Toro 110324

BEARING

$

$

Not available

15

Toro 932018

See Supercession: 3272-12
(Superseded to 3272-12)

$0.99

$

In Stock, Qty 8

0

16

Toro 109262

WASHER-FLAT

$4.49

$

In Stock, only 1 left!

0

17

Toro 110384

DISCONTINUED
(Superseded to 112303)

$

$

Not available

17

Toro 110889

STEERING WHEEL

$367.99

$

Usually ships in 3-6 days

0

18

Toro 908006

See Supercession: 321-8
(Superseded to 321-8)

$4.49

$

In Stock, Qty 20+

0

19

Toro 915661

See Supercession: 3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

20

Toro 920215

See Supercession: 9202154
(Superseded to 9202154)

$3.49

$

In Stock, Qty 14

0

21

Toro 110892

DISCONTINUED

$

$

Not available
