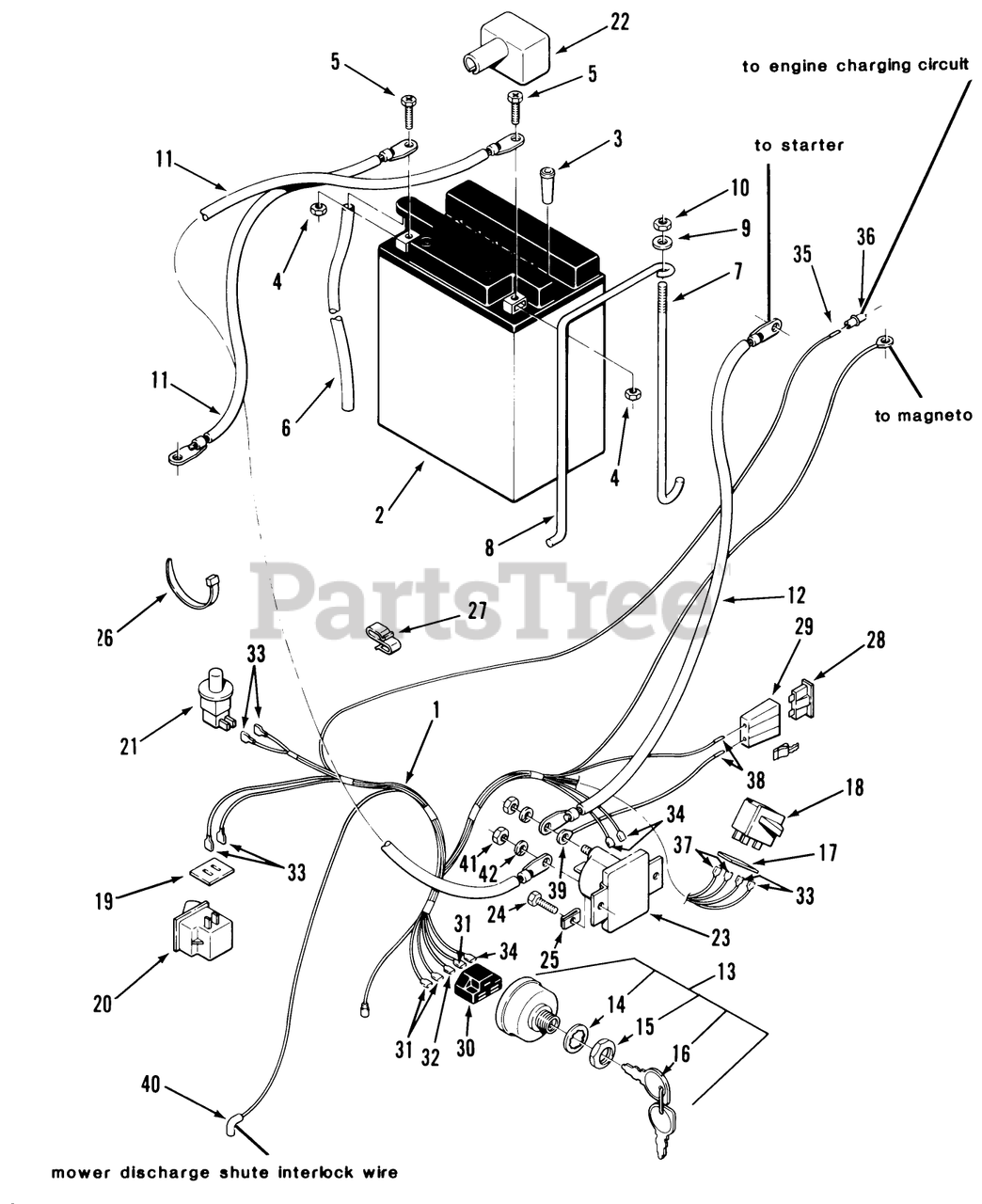

33-11BP01 (A-115) - Toro Rear-Engine Riding Mower (1985) Electrical System Parts Diagram

Rear-Engine Riding Mower

Electrical System Parts Diagram

  • Title

1

Toro 110382

DISCONTINUED

$

$

Not available

2

Toro 110379

DISCONTINUED

$

$

Not available

3

Toro 110427

DISCONTINUED

$

$

Not available

4

Toro 110377

DISCONTINUED

$

$

Not available

5

Toro 110378

DISCONTINUED
(Superseded to 111185)

$

$

Not available

6

Toro 110424

DISCONTINUED

$

$

Not available

7

Toro 106911

DISCONTINUED

$

$

Not available

8

Toro 110381

DISCONTINUED

$

$

Not available

9

Toro 920007

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 15

0

10

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 6

0

11

Toro 108281

See Supercession: 111078
(Superseded to 111078)

$28.99

$

Usually ships in 3-6 days

0

12

Toro 109548

Solenoid To Engine Starter Cable

$

$

Currently unavailable

13

Toro 103991

ASSY-SWITCH IGNITION

$52.99

$

In Stock, only 2 left!

0

14

Toro 920160

See Supercession: 9201604
(Superseded to 9201604)

$0.99

$

In Stock, only 2 left!

0

15

Toro 101884

NUT

$7.99

$

In Stock, only 1 left!

0

16

Toro 7262

See Supercession: 62-7770
(Superseded to 62-7770)

$5.49

$

In Stock, Qty 14

0

17

Toro 110501

DISCONTINUED

$

$

Not available

18

Toro 109327

See Supercession: 98-2392
(Superseded to 98-2392)

$84.99

$

Usually ships in 3-6 days

0

19

Toro 110502

SHIELD-DIRT SPST

$

$

Not available

20

Toro 103480

DISCONTINUED

$

$

Not available

21

Toro 109329

DISCONTINUED

$

$

Not available

22

Toro 109553

See Supercession: 28-8080
(Superseded to 28-8080)

$26.99

$

Usually ships in 3-6 days

0

23

Toro 110167

See Supercession: 740207
(Superseded to 740207)

$36.99

$

In Stock, only 1 left!

0

24

Toro 960151

See Supercession: 3234-13
(Superseded to 3234-13)

$1.49

$

In Stock, only 1 left!

0

25

Toro 106370

DISCONTINUED

$

$

Not available

26

Toro 100571

DISCONTINUED

$

$

Not available

27

Toro 519337

CLIP-CABLE

$

$

Not available

28

Toro 109355

FUSE-BLADE, 15 AMP

$3.99

$

In Stock, only 2 left!

0

29

Toro 109117

DISCONTINUED

$

$

Not available

30

Toro 105302

See Supercession: 32160-014
(Superseded to 32160-014)

$6.49

$

In Stock, Qty 12

0

31

Toro 102651

DUP PART SEE $BOOK

$

$

Not available

32

Toro 105306

TERMINAL-TAB RCPT

$4.49

$

Usually ships in 3-6 days

0

33

Toro 518077

Terminal

$

$

Currently unavailable

34

Toro 8765

DISCONTINUED

$

$

Not available

35

Toro 518074

DISCONTINUED

$

$

Not available

36

Toro 107831

DISCONTINUED

$

$

Not available

37

Toro 109378

Wire Terminal (Part of 1)

$

$

Currently unavailable

38

Toro 108995

DISCONTINUED

$

$

Not available

39

Toro 518007

DISCONTINUED

$

$

Not available

40

Toro 518246

DISCONTINUED

$

$

Not available

41

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 6

0

42

Toro 920081

See Supercession: 3253-3
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0
