33-11BP01 (A-115) - Toro Rear-Engine Riding Mower (1985) SEAT AND SUSPENSION Parts Diagram

Rear-Engine Riding Mower

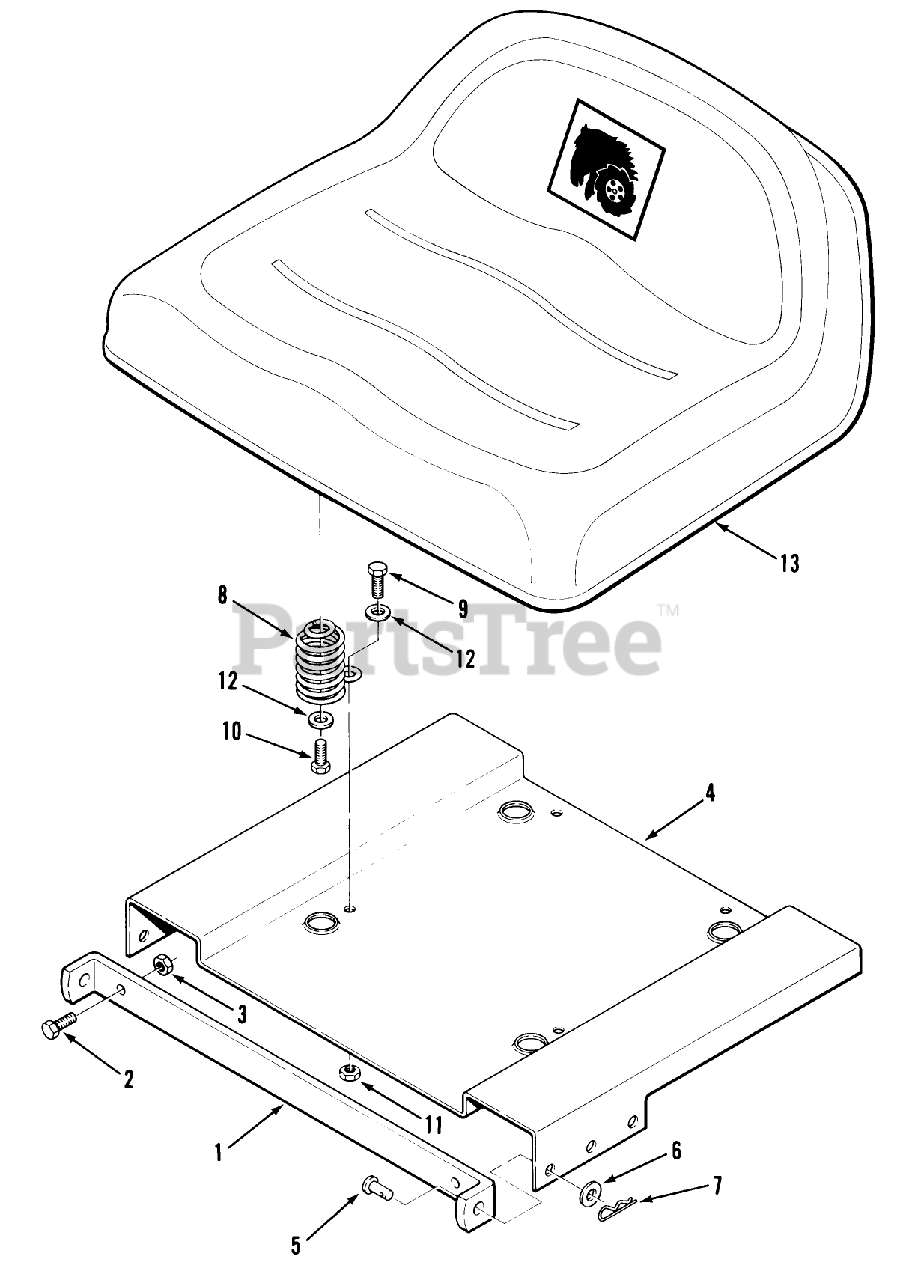

SEAT AND SUSPENSION Parts Diagram

  • Title

1

Toro 110438

Seat Mounting Bracket

$

$

Currently unavailable

2

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

3

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

4

Toro 110349

Seat Pivot Plate

$

$

Not available

5

Toro 932960

PIN

$

$

Not available

6

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

7

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 14

0

8

Toro 110350

Spring
(Superseded to 111090)

$

$

Not available

9

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

10

Toro 908016

Bolt
(Superseded to 322-2)

$2.49

$

In Stock, Qty 20+

0

11

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

12

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 10

0

13

Toro 107016

ASSY-SEAT

$

$

Not available
