330 - Poulan Chainsaw, Type 1 (2006-09) Chain Brake & Clutch Parts Diagram

Chainsaw, Type 1

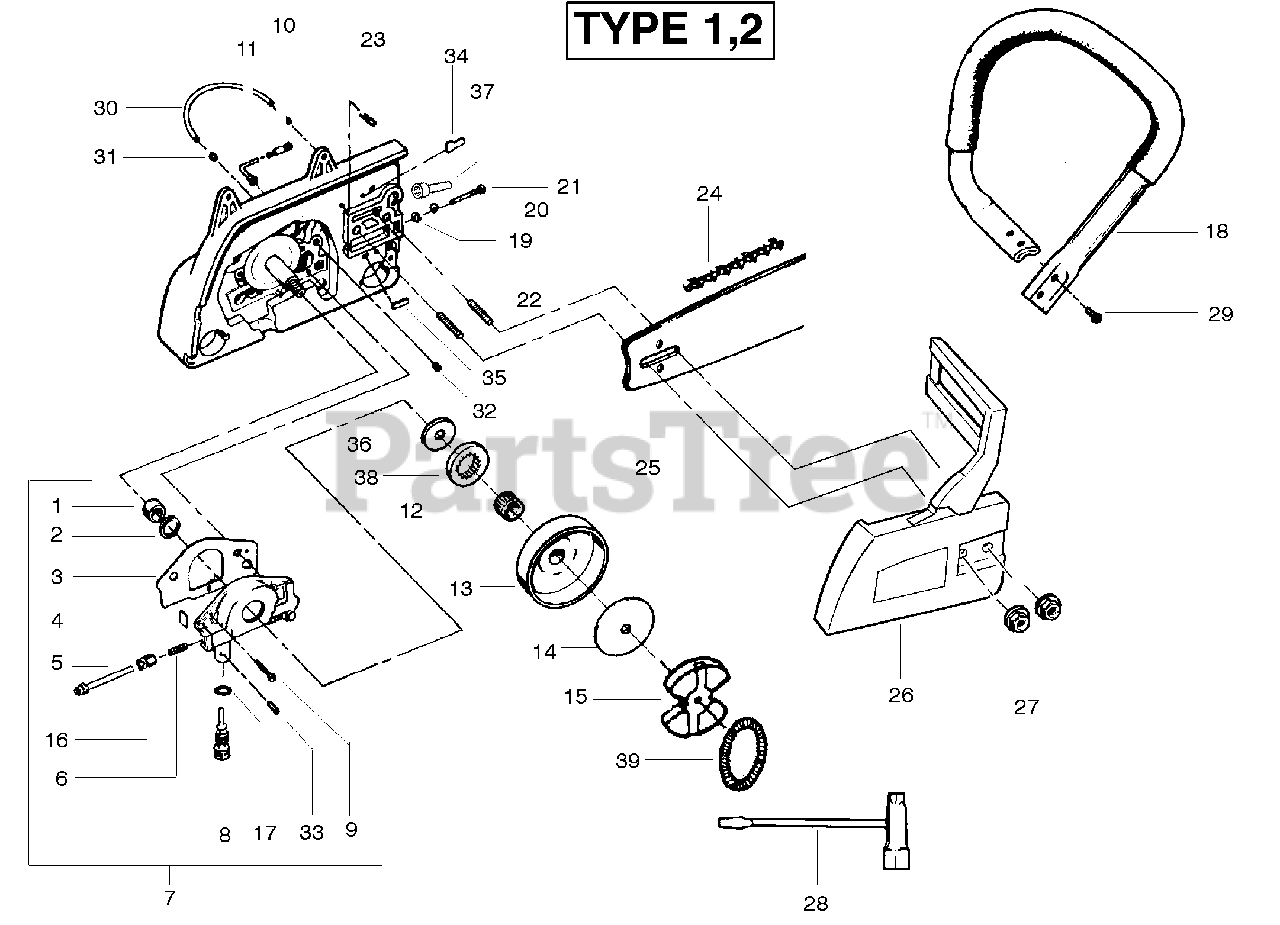

Chain Brake & Clutch Parts Diagram

  • Title

1

Electrolux/AYP 530027140

Wire Worm Gear

$

$

Not available

2

Electrolux/AYP 530019147

Seal-Oil Pump

$

$

Not available

3

Electrolux/AYP 530019148

Gasket - Oil Pump
(Superseded to 530069487)

$

$

Not available

4

Electrolux/AYP 530027128

Dust Plug

$

$

Not available

5

Electrolux/AYP 530014204

Shaft Ass’y.

$

$

Not available

6

Electrolux/AYP 530027126

Spring-Plunger

$2.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 530069218

Oil Pump Ass’y.

$

$

Not available

8

Electrolux/AYP 530015873

Screw Oiler Adjusting

$8.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 530015871

Screw
(Superseded to 530015650)

$

$

Not available

10

Electrolux/AYP 530027272

Oil & Filter Pickup

$

$

Not available

11

Electrolux/AYP 530027192

Oiler Intake Line

$3.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 530032049

Bearing

$

$

Not available

13

Electrolux/AYP 530048083

Drum & Adaptor Ass’y.

$

$

Not available

14

Electrolux/AYP 530027161

Clutch Plate

$1.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 530014161

Clutch Ass’y.

$

$

Not available

16

Electrolux/AYP 530027129

Gear Spur

$

$

Not available

17

Electrolux/AYP 530019079

O" Ring

$3.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 530047163

Handlebar Ass’y.
(Superseded to 530053350)

$27.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 530023064

Guide Bar Pin

$8.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 530038593

Retainer-Bar Adjust

$4.99

$

In Stock, Qty 20+

0

21

Electrolux/AYP 530016110

Screw

$4.99

$

In Stock, Qty 20+

0

22

Electrolux/AYP 530016238

Bar Stud

$

$

Not available

23

Electrolux/AYP 530015108

Cotter Pin

$3.99

$

In Stock, only 2 left!

0

24

Electrolux/AYP 952051266

Chain 20"

$

$

Not available

24

Electrolux/AYP 952051459

Chain 22"

$30.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 952044561

Bar 20"

$

$

Not available

25

Electrolux/AYP 530044833

Bar 22"
(Superseded to 530044698)

$

$

Not available

26

Electrolux/AYP 952069321

Chain Brake Kit

$

$

Not available

27

Electrolux/AYP 530015251

Nut-Bar Mounting

$

$

Not available

28

Electrolux/AYP 530031135

Scrench Silver finish (1/2" x 3/4")
(Superseded to 530031163)

$9.99

$

In Stock, Qty 17

0

28

Electrolux/AYP 530031146

Scrench Gold finish (9/16" x 3/4")
(Superseded to 545006011)

$

$

Not available

29

Electrolux/AYP 530016058

Screw

$3.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 530021061

Oiler Line

$

$

Not available

31

Electrolux/AYP 530002464

Ferrule

$3.99

$

In Stock, only 1 left!

0

32

Electrolux/AYP 530015422

Nut-Slotted Tube

$

$

Not available

33

Electrolux/AYP 530015752

Pin-Adjustment Screw

$

$

Not available

34

Electrolux/AYP 530027222

Chain Pad - Top

$

$

Not available

35

Electrolux/AYP 530027223

Chain Pad

$

$

Not available

36

Electrolux/AYP 530015733

Thrust Washer

$4.99

$

In Stock, Qty 5

0

37

Electrolux/AYP 530029236

Crankcase Plug

$

$

Not available

38

Electrolux/AYP 530048098

Rim Floating (3/8)

$12.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 530027160

Spring - Clutch

$4.99

$

Usually ships in 3-10 days

0
