330 - Poulan Chainsaw, Type 1 (2006-09) Engine Type 1-2 Parts Diagram

Chainsaw, Type 1

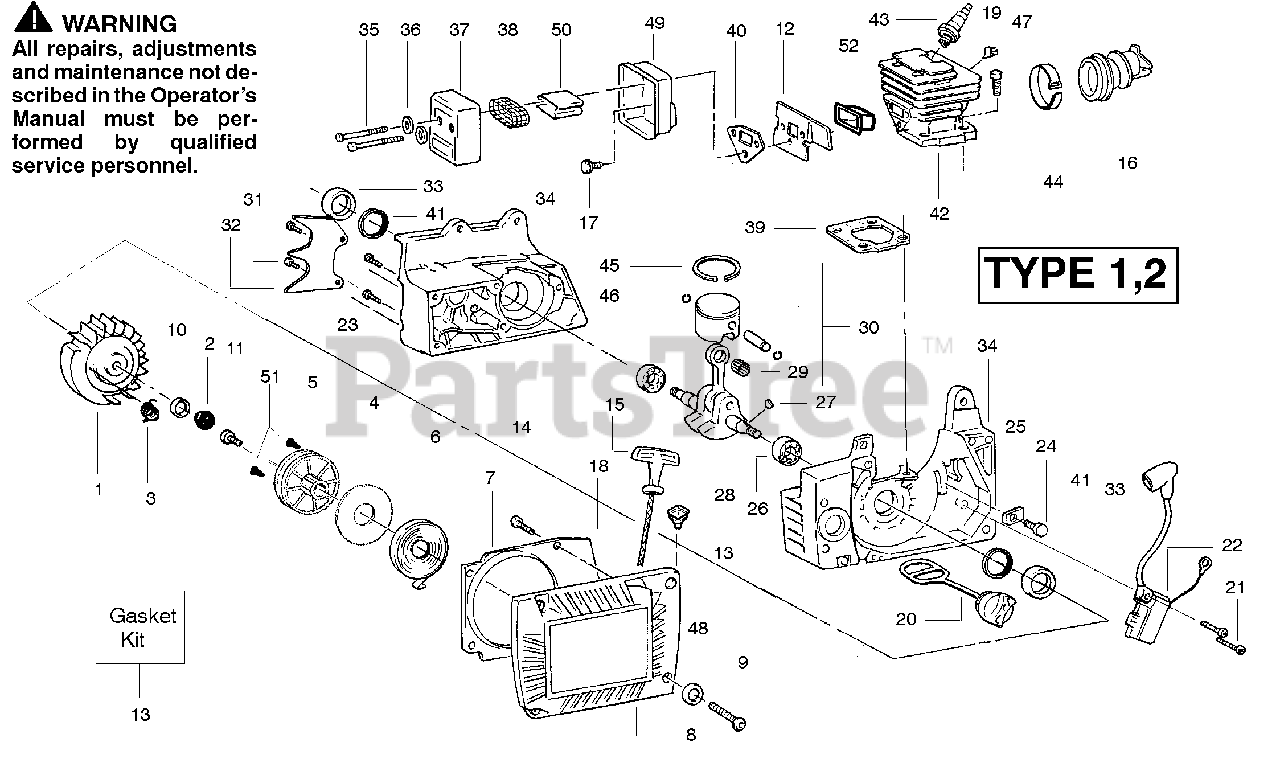

Engine Type 1-2 Parts Diagram

  • Title

1

Electrolux/AYP 530069890

Flywheel Ass’y. Kit
(Superseded to 530054182)

$36.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 530049819

Nut-Flywheel

$1.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 530023817

Spring-Starter Dog

$6.49

$

In Stock, Qty 5

0

4

Electrolux/AYP 530016242

Washer

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 530053728

Starter Pulley

$

$

Not available

6

Electrolux/AYP 530042087

Starter Spring
(Superseded to 545008012)

$8.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 530052435

Baffle Plate

$3.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 530049938

Fan Housing Ass’y.

$15.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 530015812

Screw

$

$

Not available

10

Electrolux/AYP 530015441

Washer-Conical

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 530015920

Screw

$6.49

$

In Stock, Qty 8

0

12

Electrolux/AYP 530053595

Muffler Back Plate

$4.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 530069487

Kit - Gasket

Note: (incl. 39,40 pg.1 : 13 pg.2 : 2,3 pg.3)

$

$

Not available

14

Electrolux/AYP 530015241

Screw

$3.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 530049797

Starter Handle
(Superseded to 530056422)

$

$

Not available

16

Electrolux/AYP 530030202

Boot-Intake

$

$

Not available

17

Electrolux/AYP 530016291

Screw

$3.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 530069919

Rope Kit

$6.49

$

In Stock, only 4 left!

0

19

Electrolux/AYP 530015696

Clip

$

$

Not available

20

Electrolux/AYP 530010846

Oil Cap Ass’y.
(Superseded to 530057236)

Note: (Incl. "O" Ring)

$

$

Not available

21

Electrolux/AYP 530015708

Screw
(Superseded to 530015425)

$1.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 530039128

Ignition Module

$

$

Not available

23

Electrolux/AYP 530015707

Screw

$4.99

$

In Stock, only 2 left!

0

24

Electrolux/AYP 530015306

Screw

$3.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 530027264

Clamp

$2.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 530032093

Crankshaft Bearing

$

$

Not available

27

Electrolux/AYP 530002595

Flywheel Key

$4.99

$

In Stock, Qty 7

0

28

Electrolux/AYP 530027143

Crankshaft & Rod Ass’y.

$157.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 530032111

Piston Pin Bearing

$

$

Not available

30

Electrolux/AYP 530071321

Piston Kit

Note: (Incl. 29, 45 & 46)

$78.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 530015875

Screw

$4.99

$

In Stock, only 3 left!

0

32

Electrolux/AYP 952027846

Spur

$

$

Not available

33

Electrolux/AYP 530019146

Crankshaft Seal

$4.99

$

In Stock, only 2 left!

0

34

Electrolux/AYP 530069893

Crankcase Ass’y.

$

$

Not available

35

Electrolux/AYP 530016259

Screw

$4.99

$

In Stock, Qty 10

0

36

Electrolux/AYP 530015722

Washer

$4.99

$

In Stock, only 3 left!

0

37

Electrolux/AYP 530053465

Muffler Cover

$

$

Not available

38

Electrolux/AYP 530030205

Spark Arrestor Screen

$

$

Not available

39

Electrolux/AYP 530069487

Gasket Kit

$

$

Not available

40

Electrolux/AYP 530069487

Muffler Gasket

$

$

Not available

41

Electrolux/AYP 530001516

Snap Ring

$3.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 530403749

Cylinder Ass’y.

$84.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 952030164

Spark Plug (RCJ-6Y)
(Superseded to 952030249)

$4.99

$

In Stock, Qty 20+

0

44

Electrolux/AYP 530027285

Clamp Ass’y.

$

$

Not available

45

Electrolux/AYP 530030176

Piston Ring

$

$

Not available

46

Electrolux/AYP 530015697

Retainer

$6.49

$

In Stock, Qty 6

0

47

Electrolux/AYP 530001624

Screw

$3.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 530015629

Washer

$3.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 530053596

Muffler Body

$

$

Not available

50

Electrolux/AYP 530049362

Muffler Diffuser

$

$

Not available

51

Electrolux/AYP 530016080

Screw

$6.49

$

In Stock, Qty 11

0

52

Electrolux/AYP 530053710

Exh Port Insulator

$4.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 545123577

Operator Manual

Note: Not Shown

$6.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 530047839

Warning Decal

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 530047941

Kickback Warning Decal

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0
