330 X - Husqvarna Automower Robotic Lawn Mower (2013-03) CHASSIS UPPER Parts Diagram

Automower Robotic Lawn Mower

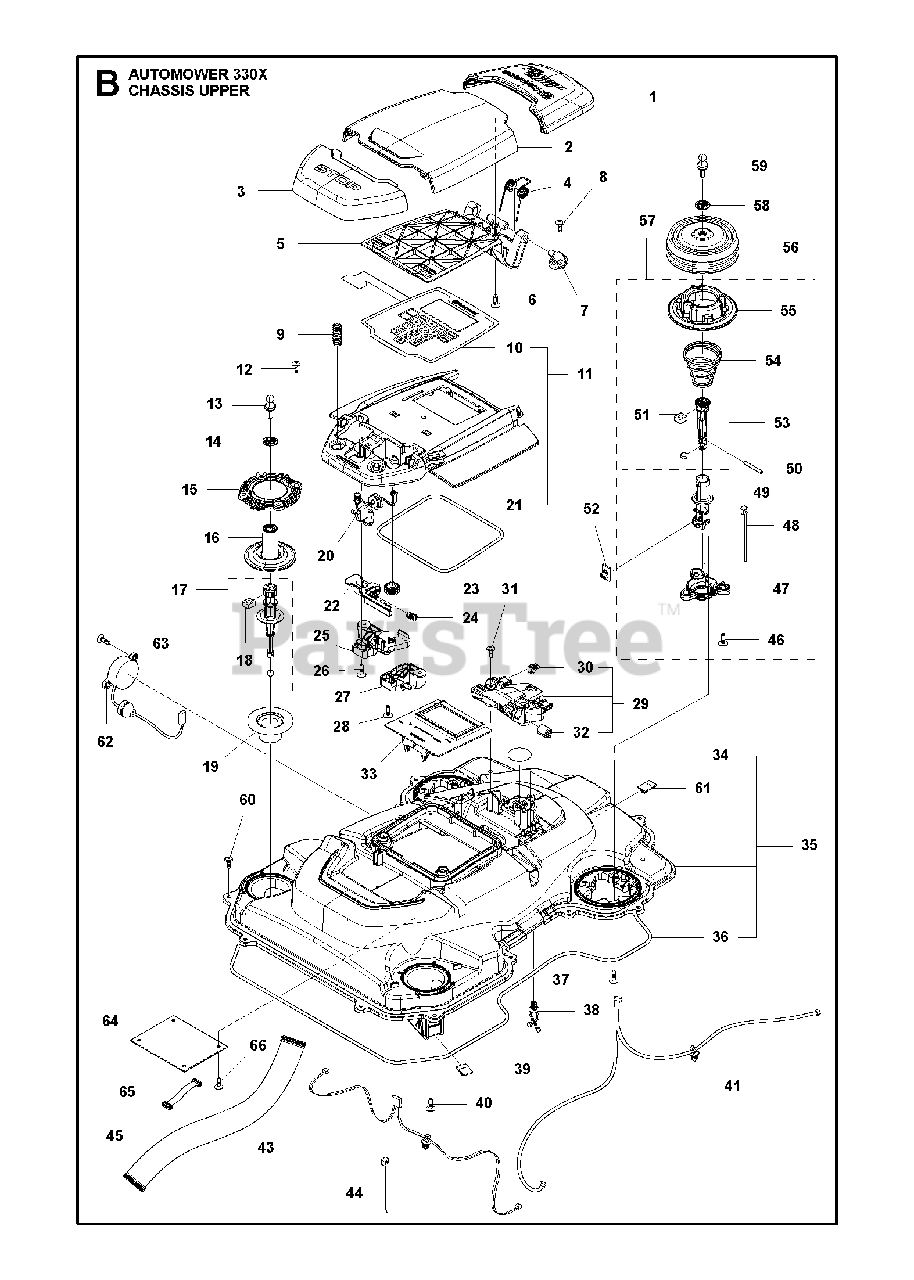

CHASSIS UPPER Parts Diagram

  • Title

1

Husqvarna 579458303

$

$

Currently unavailable

2

Husqvarna 579458501

HATCH ROBOTIC GREY

$28.99

$

Usually ships in 3-10 days

0

3

Husqvarna 579458101

BUTTON STOP

$22.99

$

Usually ships in 3-10 days

0

4

Husqvarna 580673001

$

$

Currently unavailable

5

Husqvarna 579458601

$

$

Currently unavailable

6

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0

7

Husqvarna 579458701

$

$

Currently unavailable

8

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0

9

Husqvarna 535130101

SPRING

$5.99

$

Usually ships in 3-10 days

0

10

Husqvarna 579627901

Note: . 11

$

$

Currently unavailable

11

Husqvarna 583943701

COVER KIT DISPLAY ILLUMINATED

$74.99

$

Usually ships in 3-10 days

0

12

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 580526701

STUD SNAPLOC

$5.99

$

Usually ships in 3-10 days

0

14

Husqvarna 579525701

WASHER JOYSTICK

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 579525901

$

$

Currently unavailable

16

Husqvarna 577525801

RUBBER GAITERS

$

$

Not available

17

Husqvarna 579248801

COLUMN ASSY
(Superseded to 501122602)

$22.99

$

In Stock, only 1 left!

0

18

Husqvarna 503226601

NUT

Note: . 17

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 535143201

MOVEMENT LIMITER

$12.99

$

Usually ships in 3-10 days

0

20

Husqvarna 574480301

SWITCH STOP BUTTON

$37.99

$

Usually ships in 3-10 days

0

21

Husqvarna 574874706

Sealing Strip

Note: . 11

$28.99

$

In Stock, only 1 left!

0

21

Husqvarna 581903202

SEALING STRIP CHASSIS UPPER 10
(Superseded to 574874706)

$28.99

$

In Stock, only 1 left!

0

22

Husqvarna 579458801

$

$

Currently unavailable

23

Husqvarna 579458401

$

$

Currently unavailable

24

Husqvarna 576242201

SPRING LOCK STOP BUTTON

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 579505001

$

$

Currently unavailable

26

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0

27

Husqvarna 579505002

$

$

Currently unavailable

28

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0

29

Husqvarna 581620701

SUPPORT KIT FRONT

$34.99

$

Usually ships in 3-10 days

0

30

Husqvarna 580354501

Note: . 29

$

$

Currently unavailable

31

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0

32

Husqvarna 580352301

Note: . 29

$

$

Currently unavailable

33

Husqvarna 578127101

$

$

Currently unavailable

34

Husqvarna 577753701

KIT AIR FILTER KIT 305 - 10 PC

Note: (10 pcs). 35

$68.99

$

Usually ships in 3-10 days

0

35

Husqvarna 581620801

CHASSIS KIT UPPER
(Superseded to 581620802)

$79.99

$

Usually ships in 3-10 days

0

36

Husqvarna 574874705

Sealing Strip

Note: . 35

$7.99

$

In Stock, Qty 7

0

36

Husqvarna 581903201

SEALING STRIP CHASSIS 10 PCS
(Superseded to 574874705)

$7.99

$

In Stock, Qty 7

0

37

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 580682901

HOLDER TWIST LOCK

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 579669101

PRINTED CIRCUIT ASSY COLLISION
(Superseded to 592852401)

$29.99

$

Usually ships in 3-10 days

0

40

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0

41

Husqvarna 581660901

LOOM KIT COLLISION SENSOR

$22.99

$

Usually ships in 3-10 days

0

43

Husqvarna 581621101

LOOM KIT LIFT SENSOR

$22.99

$

Usually ships in 3-10 days

0

44

Husqvarna 900238708

BAND

Note: . 43

$

$

Not available

45

Husqvarna 579706201

LOOM MMI

$56.99

$

Usually ships in 3-10 days

0

46

Husqvarna 575543314

SCREW 14MM

Note: . 57

$4.99

$

In Stock, Qty 18

0

47

Husqvarna 579484701

Note: . 57

$

$

Currently unavailable

48

Husqvarna 900238708

BAND

Note: . 57

$

$

Not available

49

Husqvarna 579484601

Note: . 57

$

$

Currently unavailable

50

Husqvarna 720127706

Note: . 57

$

$

Currently unavailable

51

Husqvarna 503226601

NUT

Note: . 57

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 579669001

PRINTED CIRCUIT ASSY PCBA LIFT
(Superseded to 592852301)

$35.99

$

Usually ships in 3-10 days

0

53

Husqvarna 583943301

Note: . 57

$

$

Currently unavailable

54

Husqvarna 580672501

SPRING COLLISION JOYSTICK

Note: . 57

$

$

Not available

55

Husqvarna 579484801

RETAINER COLLISION SPRING

Note: . 57

$

$

Not available

56

Husqvarna 579474601

BELLOWS LIFT-COLLISION

$13.99

$

Usually ships in 3-10 days

0

57

Husqvarna 581620901

$

$

Currently unavailable

58

Husqvarna 579525701

WASHER JOYSTICK

$3.49

$

Usually ships in 3-10 days

0

59

Husqvarna 580526701

STUD SNAPLOC

$5.99

$

Usually ships in 3-10 days

0

60

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

61

Husqvarna 579669101

PRINTED CIRCUIT ASSY COLLISION
(Superseded to 592852401)

$29.99

$

Usually ships in 3-10 days

0

62

Husqvarna 579706301

$

$

Currently unavailable

63

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0

64

Husqvarna 581014001

PRINTED CIRCUIT ASSY GPS BOARD
(Superseded to 581014002)

$182.99

$

Usually ships in 3-10 days

0

65

Husqvarna 581291801

$

$

Currently unavailable

66

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0
