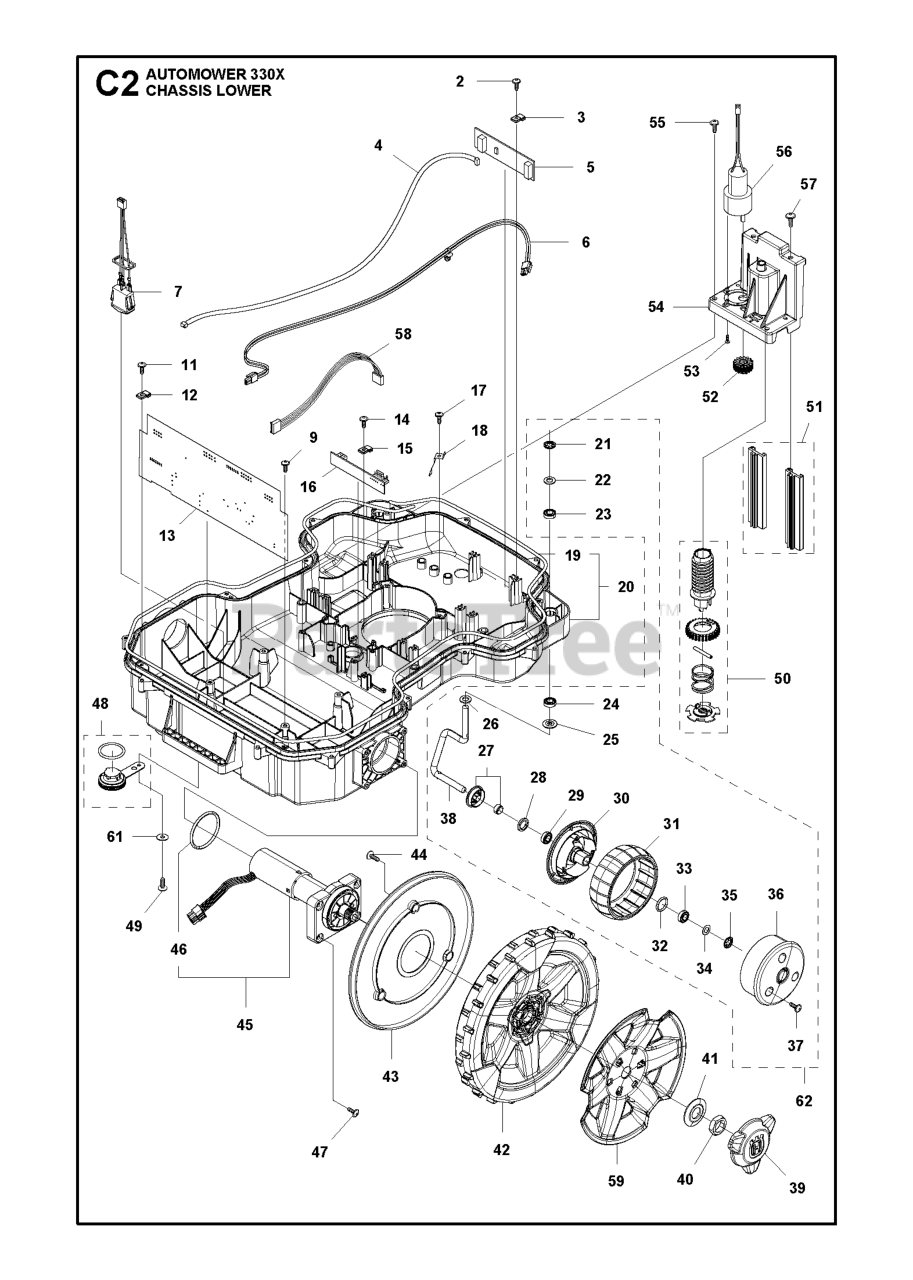

330 X - Husqvarna Automower Robotic Lawn Mower (Original) CHASSIS LOWER Parts Diagram

Automower Robotic Lawn Mower

CHASSIS LOWER Parts Diagram

  • Title

1

Husqvarna 589585201

BATTERY LI-ION

$227.99

$

Usually ships in 3-10 days

0

2

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0

3

Husqvarna 579529401

CLAMP PCB

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 579708201

LOOM LOOP SENSOR

$17.99

$

Usually ships in 3-10 days

0

5

Husqvarna 579660201

PRINTED CIRCUIT ASSY PCBA LOOP

$

$

Not available

6

Husqvarna 580370701

$

$

Currently unavailable

7

Husqvarna 579708701

LOOM ON/ OFF

$39.99

$

Usually ships in 3-10 days

0

8

Husqvarna 580609601

$

$

Currently unavailable

9

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 580682901

HOLDER TWIST LOCK

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0

12

Husqvarna 579529401

CLAMP PCB

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 592841401

NEEDS DESCRIPTION

$

$

Currently unavailable

14

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0

15

Husqvarna 579529401

CLAMP PCB

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 579728501

$

$

Currently unavailable

17

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0

18

Husqvarna 581556101

SPRING GUIDE HEIGHT ADJUSTMENT

$6.99

$

Usually ships in 3-10 days

0

19

Husqvarna 574874705

SEALING STRIP

Note: Ø5 mm

$7.99

$

In Stock, Qty 7

0

20

Husqvarna 583944501

$

$

Currently unavailable

21

Husqvarna 576019301

LOCK WASHER PUSH-ON TYPE P 8 S

$3.49

$

Usually ships in 3-10 days

0

22

Husqvarna 580764601

WASHER DIN 988 13X8X0.5

$4.99

$

In Stock, only 1 left!

0

23

Husqvarna 597795601

NEEDS DESCRIPTION

Note: Tube 50 pcs

$

$

Currently unavailable

23

Husqvarna 580605101

BALL BEARING SINGLE ROW S688

$11.99

$

In Stock, only 2 left!

0

24

Husqvarna 580605101

BALL BEARING SINGLE ROW S688

$11.99

$

In Stock, only 2 left!

0

24

Husqvarna 597795601

NEEDS DESCRIPTION

Note: Tube 50 pcs

$

$

Currently unavailable

25

Husqvarna 535087803

WASHER FRONT WHEEL CENTER HOLE

$5.99

$

Usually ships in 3-10 days

0

26

Husqvarna 580764601

WASHER DIN 988 13X8X0.5

$4.99

$

In Stock, only 1 left!

0

27

Husqvarna 581621501

SHIELD KIT

$10.99

$

In Stock, only 3 left!

0

28

Husqvarna 580487101

SEALING 12X18X3

$7.99

$

In Stock, only 3 left!

0

29

Husqvarna 597795601

NEEDS DESCRIPTION

Note: Tube 50 pcs

$

$

Currently unavailable

29

Husqvarna 580605101

BALL BEARING SINGLE ROW S688

$11.99

$

In Stock, only 2 left!

0

30

Husqvarna 579457101

WHEEL FRONT WHEEL INSIDE

$7.99

$

In Stock, only 2 left!

0

31

Husqvarna 574449801

WHEEL RUBBER TYRE

$9.49

$

In Stock, only 2 left!

0

32

Husqvarna 580445101

O-RING 2,62X15,54

$5.99

$

In Stock, only 2 left!

0

33

Husqvarna 580605101

BALL BEARING SINGLE ROW S688

$11.99

$

In Stock, only 2 left!

0

33

Husqvarna 597795601

NEEDS DESCRIPTION

Note: Tube 50 pcs

$

$

Currently unavailable

34

Husqvarna 580764601

WASHER DIN 988 13X8X0.5

$4.99

$

In Stock, only 1 left!

0

35

Husqvarna 576019301

LOCK WASHER PUSH-ON TYPE P 8 S

$3.49

$

Usually ships in 3-10 days

0

36

Husqvarna 579457201

WHEEL FRONT WHEEL OUTSIDE

$10.99

$

Usually ships in 3-10 days

0

37

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0

38

Husqvarna 580336101

SPINDLE SPINDLE FRONT WHEEL RI

$17.99

$

Usually ships in 3-10 days

0

39

Husqvarna 579505502

HUB CAP REAR WHEEL NO CENTER P

$7.99

$

Usually ships in 3-10 days

0

40

Husqvarna 731432401

HEXAGON THIN NUT

$17.99

$

Usually ships in 3-10 days

0

41

Husqvarna 586210601

WASHER WASHER REAR WHEEL 16X40

$9.49

$

Usually ships in 3-10 days

0

42

Husqvarna 582280202

WHEEL ASSY D249 BLACK

$42.99

$

Usually ships in 3-10 days

0

43

Husqvarna 579505602

COVER REAR WHEEL
(Superseded to 582280201)

$42.99

$

In Stock, only 2 left!

0

44

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0

45

Husqvarna 581621306

NEEDS DESCRIPTION

Note: For 2015 models

$340.99

$

Usually ships in 3-10 days

0

45

Husqvarna 583944401

Note: For 2014 & 2013 models

$

$

Currently unavailable

46

Husqvarna 580443901

$

$

Currently unavailable

47

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

48

Husqvarna 581621201

PLUG KIT

$

$

Not available

49

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0

50

Husqvarna 581621601

SCREW KIT

$31.99

$

Usually ships in 3-10 days

0

51

Husqvarna 581621801

BEARING KIT

$10.99

$

Usually ships in 3-10 days

0

52

Husqvarna 579564701

$

$

Currently unavailable

53

Husqvarna 510018703

$

$

Currently unavailable

54

Husqvarna 579565101

$

$

Currently unavailable

55

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0

56

Husqvarna 580342101

$

$

Currently unavailable

57

Husqvarna 510722901

$

$

Currently unavailable

58

Husqvarna 579708001

LOOM HEIGHT ADJUSTMENT

$26.99

$

In Stock, only 1 left!

0

59

Husqvarna 579505701

WHEEL COVER REAR WHEEL

$17.99

$

In Stock, only 1 left!

0

60

Husqvarna 581822501

$

$

Currently unavailable

61

Husqvarna 734113741

WASHER

$5.99

$

Usually ships in 3-10 days

0

62

Husqvarna 581621401

WHEEL KIT FRONT

$

$

Not available
