3300/72SRDCE (5901932) - Ferris 72" Mower Deck 72" Mower Deck Group - Pulleys, Belts, and Idler Arms (2 Belt System) S/N: 4002179792 and Above Parts Diagram

72" Mower Deck

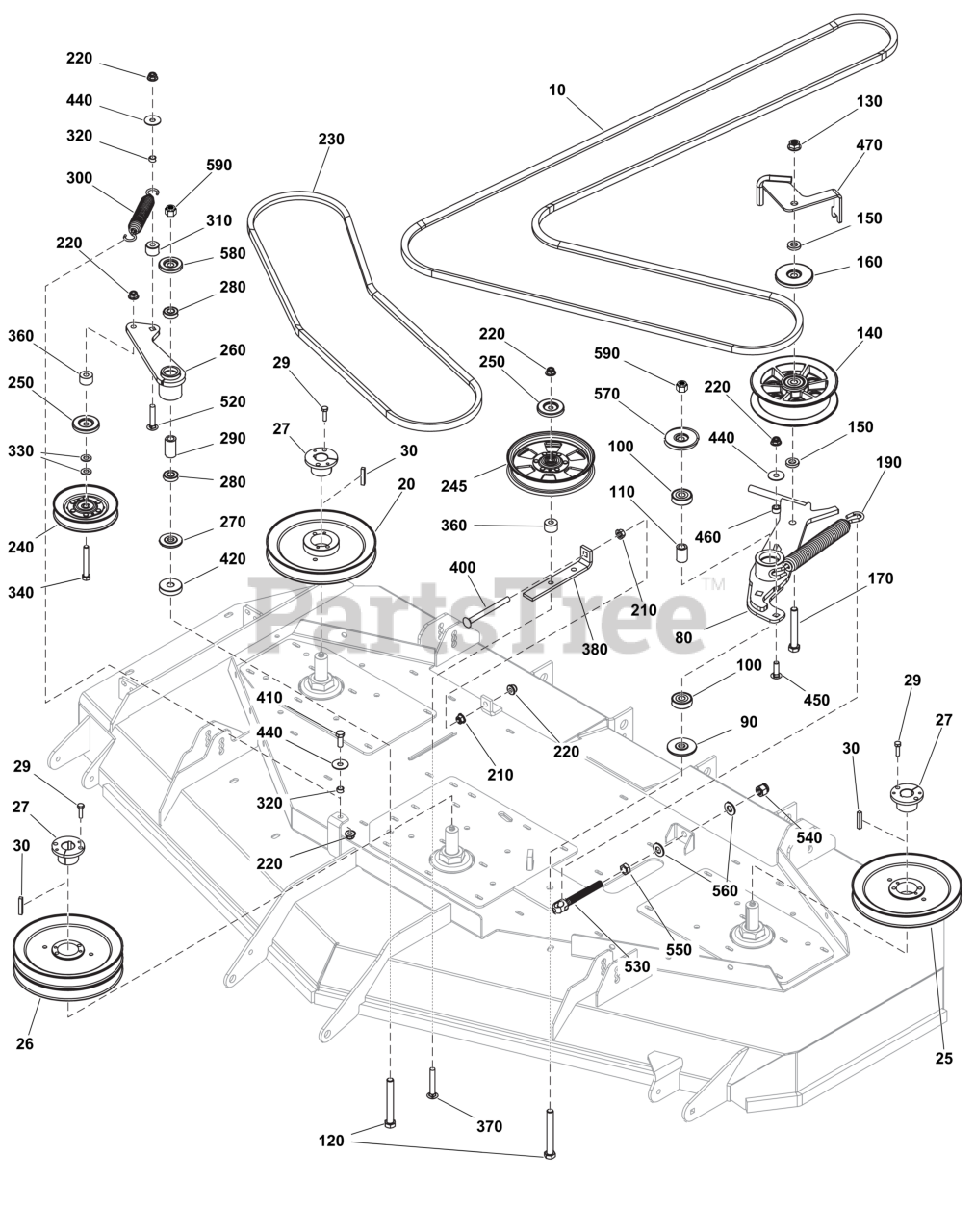

72" Mower Deck Group - Pulleys, Belts, and Idler Arms (2 Belt System) S/N: 4002179792 and Above Parts Diagram

  • Title

10

Ferris 5105035

BELT, 5V/SPB, 156.70 EL, LG ARAMID, WRPD
(Superseded to 84003292)

$105.99

$

Usually ships in 2-12 days

0

20

Ferris 5105052

PULLEY, SPNDL, 8.37"OB, HQ BORE -RH
(Superseded to 84003286)

$58.99

$

Usually ships in 2-12 days

0

25

Ferris 5105053

PULLEY, SPNDL, 8.37"OB, HQ BORE -LH
(Superseded to 84003287)

$58.99

$

Usually ships in 2-12 days

0

26

Ferris 5105054

PULLEY, SPNDL, 8.37"OB-DBL, HQ BORE
(Superseded to 84003288)

$101.99

$

Usually ships in 2-12 days

0

27

Ferris 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

In Stock, only 1 left!

0

29

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

30

Ferris 5022726

KEY 1/4 SQ X 1 1/2 LONG
(Superseded to 5022726YP)

$4.99

$

In Stock, only 2 left!

0

80

Ferris 5415997AA

WELD, IDLER ARM, 2B DECK DRIVES - BLK
(Superseded to 84003252)

$100.99

$

In Stock, only 1 left!

0

90

Ferris 5104379

SPACER, IDLER ARM, 1/2 X 2.25
(Superseded to 5104379YP)

$8.99

$

Usually ships in 2-12 days

0

100

Ferris 5104383

BEARING, 6203-1/2", SEALED
(Superseded to 5104383YP)

$9.99

$

In Stock, only 3 left!

0

110

Ferris 5104456

SPACER, .51 X .84 X 1.22, PM, CZ
(Superseded to 5104456YP)

$4.49

$

Usually ships in 2-12 days

0

120

Ferris 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

$6.49

$

In Stock, only 2 left!

0

130

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, only 4 left!

0

140

Ferris 5109029

PULLEY, IDLER, 5.50, CI
(Superseded to 84007049)

$84.99

$

In Stock, only 1 left!

0

150

Ferris 5100520

SPACER, .52 X 1.00 X .22, PM, CZ
(Superseded to 5100520SM)

$6.49

$

Usually ships in 2-12 days

0

160

Ferris 5105041

SHIELD, PULLEY, 1/2"ID X 2-7/8"OD, CZ
(Superseded to 5105041YP)

$3.49

$

Usually ships in 2-12 days

0

170

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 1 left!

0

190

Ferris 5105068

SPRING, EXT1.22"ODX10.5"FLX.192"WIRE BLK
(Superseded to 5105068YP)

$75.99

$

Usually ships in 2-12 days

0

210

Ferris 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

220

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 7

0

230

Ferris 5105036

BELT, B-SEC, 76.40 EL, ARAMID, WRPD
(Superseded to 5105036FS)

$42.99

$

Usually ships in 2-12 days

0

240

Ferris 5108772

PULLEY, V-IDLER, 5"OD X 3/8", CZ, TE
(Superseded to 84004874)

$33.99

$

In Stock, only 1 left!

0

245

Ferris 5105109

PULLEY, FLT IDLR, 6.0 X 1.0 X .38, CZ
(Superseded to 84003290)

$66.99

$

In Stock, only 1 left!

0

250

Ferris 5105033

SHIELD, PULLEY, 3/8"ID X 2"OD, CZ
(Superseded to 5105033YP)

$3.49

$

In Stock, only 3 left!

0

260

Ferris 5416161AA

NLA - WELD, IDLER ARM, 2 BELT DRIVE -BLK
(Superseded to 5416161AYP)

$62.99

$

In Stock, only 1 left!

0

270

Ferris 5103262

SPACER, IDLER ARM, 1/2, PM
(Superseded to 5103262YP)

$7.99

$

In Stock, Qty 5

0

280

Ferris 7078243

BEARING, BALL, AXLE
(Superseded to 7078243YP)

$10.99

$

In Stock, Qty 6

0

290

Ferris 5103812

SPACER, .52 X .84 X 1.53, PM
(Superseded to 5103812YP)

$7.99

$

In Stock, only 2 left!

0

300

Ferris 5022847

SPRING-EXT, 1.04 ODX6.935LGX.148WR, BLK
(Superseded to 5022847SM)

$34.99

$

Usually ships in 2-12 days

0

310

Ferris 5043815

SPACER, .39 X 1.00 X .75, CZ
(Superseded to 5043815YP)

$10.99

$

Usually ships in 2-12 days

0

320

Ferris 5041930

SPACER, .38 X .50 X .27, CZ
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

330

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

340

Ferris 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, only 2 left!

0

360

Ferris 5100334

SPACER, .39 X 1.00 X .63, CZ
(Superseded to 5100334SM)

$7.49

$

Usually ships in 2-12 days

0

370

Ferris 5025146X20

BOLT, 3/8-16 X 2-1/2, CARRIAGE, GD5, CZ
(Superseded to 84005878)

$2.49

$

Usually ships in 2-12 days

0

380

Ferris 5415508AA

PLATE, IDLER PUSHER, 72 - BLK
(Superseded to 84003284)

$13.99

$

Usually ships in 2-12 days

0

400

Ferris 5025146X36

BOLT, 3/8-16 X 4-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X36YP)

$4.49

$

In Stock, only 1 left!

0

410

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

420

Ferris 5105066

SPACER, .52 X 1.75 X .420, CZ
(Superseded to 84003251)

$5.49

$

Usually ships in 2-12 days

0

440

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 1 left!

0

450

Ferris 80003604

BOLT,3/8-16X1-1/4,GR5,CARRIAGE,ZC/CL
(Superseded to 703130)

$3.99

$

In Stock, Qty 15

0

460

Ferris 5105297

SPACER, .39 X .63 X .375M DOM CZ
(Superseded to 5105297YP)

$5.99

$

In Stock, only 2 left!

0

470

Ferris 5415996AA

WELD, UPPER ARM GUIDE - BLK
(Superseded to 84003253)

$43.99

$

Usually ships in 2-12 days

0

520

Ferris 5025146X16

BOLT, 3/8-16 X 2, CARRIAGE, GD5, CZ
(Superseded to 5025146X16SM)

$4.49

$

Usually ships in 2-12 days

0

530

Ferris 5105844

SPRING PULLER, 1/2-20, 5.00
(Superseded to 5105844YP)

$16.99

$

Usually ships in 2-12 days

0

540

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

Usually ships in 2-12 days

0

550

Ferris 5025089

NUT, 1/2-20 Hex Jam
(Superseded to 5025089SM)

$3.99

$

In Stock, only 1 left!

0

560

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 5

0

570

Ferris 5110119

SHIELD, BEARING, 1/2" ID-2.5"

$

$

Currently unavailable

580

Ferris 5110147

SHIELD, BEARING, 1/2" ID-1.75"

$

$

Currently unavailable

590

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0
