331 (190-331-100) - Cub Cadet 38" Mower Deck, Manual PTO att Deck & Attachments Parts Diagram

38" Mower Deck, Manual PTO

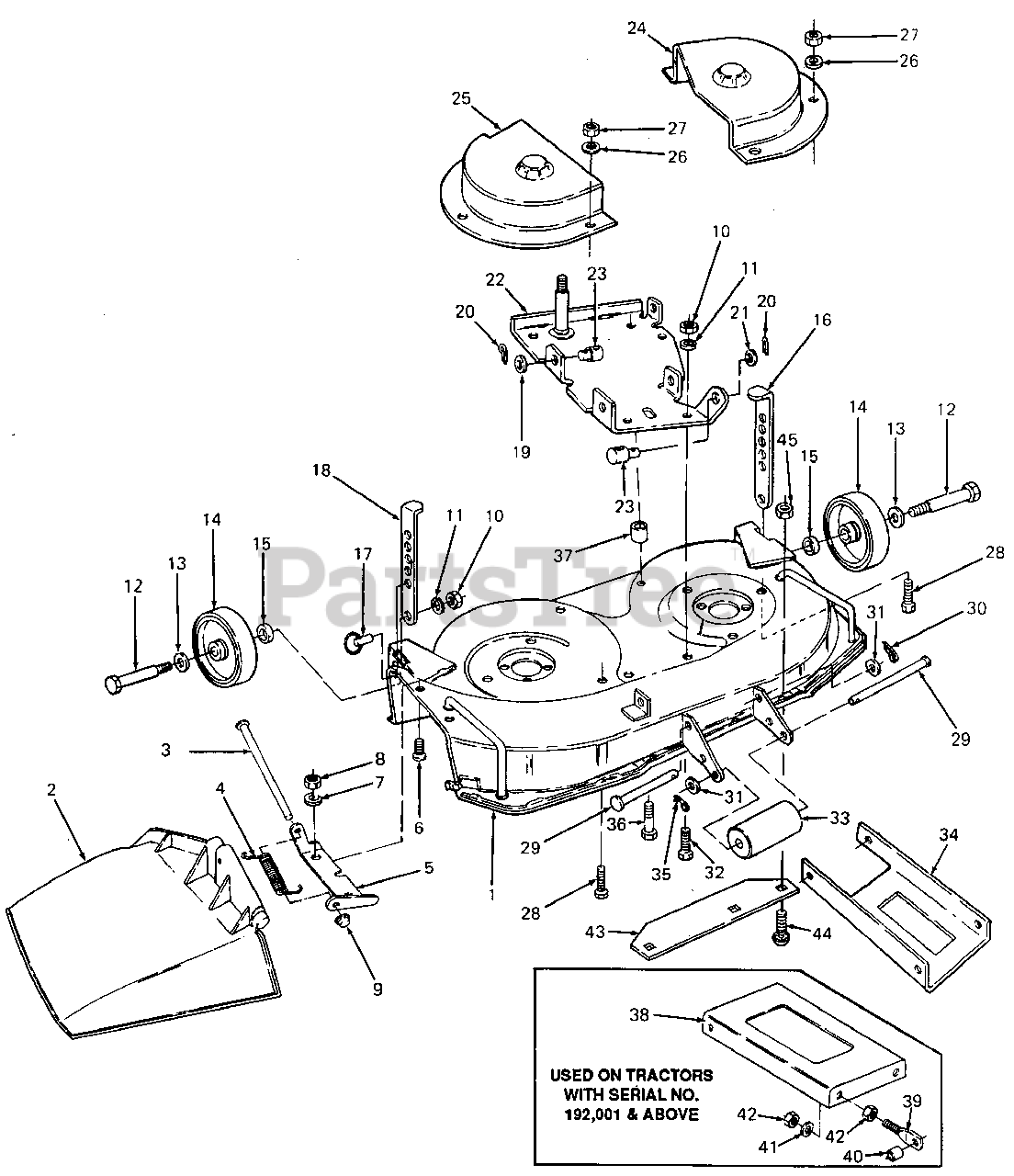

Deck & Attachments Parts Diagram

  • Title

1

Cub Cadet 759-3356

Deck Assembly w/Graphics

Variations

Cub Cadet 759-3356-0498

DECK ASSEMBLY W/GRAPHICS - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 759-3356-0499

DECK ASSEMBLY W/GRAPHICS - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 759-3356-0716

DECK ASSEMBLY W/GRAPHICS - CUB YELLOW-99 (0716)

$

$

Not available

$

$

Cub Cadet 777-2549

Graphic, 38" Do Not Step
(Superseded to 777S30018)

$7.99

$

In Stock, only 1 left!

0

Cub Cadet 777-6275

Graphic, Thrown Object

$

$

Currently unavailable

Cub Cadet 779-3454

Graphic, Manual PTO Warning

$

$

Not available

2

Cub Cadet 759-3492

Chute Kit w/Graphic
(Superseded to 759-3492P)

Note: [Includes Ref No. 2, 3, 4, 5, 6 (Qty 2), 7 (Qty 2), 8 (Qty 2) & 9]

$

$

Not available

Cub Cadet 777-2196

Graphic, Danger
(Superseded to 977S30145)

$9.49

$

In Stock, only 1 left!

0

3

Cub Cadet 711-0792

Pin, Hinge, 0.25 Dia X 6.75 Lg
(Superseded to 911-0792)

$4.49

$

In Stock, only 2 left!

0

4

Cub Cadet 732-0602

Spring, Torsion
(Superseded to 732-0602A)

$11.99

$

In Stock, Qty 5

0

5

Cub Cadet 703-1693

Bracket, Hinge Mtg
(Superseded to 703-1693A)

$21.99

$

In Stock, only 4 left!

0

6

Cub Cadet 710-0255

Screw, Truss Machine, 1/4-20 X .75 Lg, Phillips
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 736-0329

Washer, Lock, 1/4 Dia
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

8

Cub Cadet 712-0287

Nut, Hex, 1/4-20 GR5
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

9

Cub Cadet 726-0106

Nut, Cap Speed

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR5

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0169

Washer, Lock, 3/8 Dia

$3.49

$

In Stock, Qty 20+

0

12

Cub Cadet 738-3058

Bolt, Shld, 0.50 Dia X 1.62 Lg X 3/8-16
(Superseded to 938-3058)

$21.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 736-3087

Washer, Flat, 0.510 ID X 1.12 OD X 0.1000 Thk

$

$

Not available

14

Cub Cadet 734-3062

Wheel, Gauge, 5" Dia

$20.99

$

In Stock, Qty 20+

0

15

Cub Cadet 711-3226

Spacer, 0.385 X .075 X 0.75 Lg

$

$

Not available

16

Cub Cadet 703-1411

Bar, Height Adjustment LH

$

$

Not available

17

Cub Cadet 711-3222

Pin, Clevis w/Detent Ball
(Superseded to 911-3222)

$16.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 703-1412

Bar, Height Adjustment RH

$

$

Not available

19

Cub Cadet 736-0101

Washer, Flat, .406 X 1.0 X .03
(Superseded to 936-0101)

$4.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 714-0144

Pin, Cotter, 1/8 Dia X 1.0 Lg

$

$

Not available

21

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .06

$3.49

$

In Stock, Qty 16

0

22

Cub Cadet 703-1613

Deck Plate Assembly

Variations

Cub Cadet 703-1613-0498

PLATE ASSEMBLY-DECK CUB YELO - OLD CUB YELLOW (0498)

$

$

Not available

$

$

23

Cub Cadet 711-0198

Ferrule
(Superseded to 911-0198)

$12.99

$

In Stock, Qty 20+

0

24

Cub Cadet 703-1413

Cover, Belt LH

$

$

Not available

25

Cub Cadet 703-1414

Cover, Belt RH

$

$

Not available

26

Cub Cadet 736-0275

Washer, Flat, 0.34 X 0.68 X 0.06

$6.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 710-3021

Screw, Hex Head Cutting, 5/16-18 X 0.62 Lg

$

$

Not available

29

Cub Cadet 711-3068

Pin, Clevis, 1/2 X 7.68

$21.99

$

In Stock, only 2 left!

0

30

Cub Cadet 714-0149B

Pin, Internal Cotter

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0272

Washer, Flat, 0.510 X 1.0 X 0.06

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 710-3178

Bolt, Short Neck Carr, 3/8-16 X 0.75 Lg GR5

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 731-3005

Roller, Front

$26.99

$

In Stock, Qty 20+

0

34

Cub Cadet 703-1293

Bracket, Deck Front Support
(Superseded to 703-1999-0498)

Note: (Used on Tractors w/Serial No. 192,000 & below)

$88.99

$

In Stock, only 2 left!

0

35

Cub Cadet 714-3002

Pin, Cotter, 3/16 Dia X 1.0 Lg

$3.49

$

In Stock, Qty 7

0

36

Cub Cadet 710-3034

Bolt, Carriage, 3/8-16 X 1.25

$3.99

$

In Stock, Qty 7

0

37

Cub Cadet 711-3224

Spacer, 0.390/0.400 ID X 0.75 OD X 0.44 Lg

$

$

Not available

38

Cub Cadet 703-2108

Bracket, Deck Front Support

Note: (Used on Tractors w/Serial No. 192,001 & above)

$

$

Not available

39

Cub Cadet 711-3216

Eye Bolt

Note: (Used on Tractors w/Serial No. 192,001 & above)

$

$

Not available

40

Cub Cadet 711-0313

Sleeve

Note: (Used on Tractors w/Serial No. 192,001 & above)

$

$

Not available

41

Cub Cadet 736-0921

Washer, Lock, 1/2

Note: (Used on Tractors w/Serial No. 192,001 & above)

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 712-0206

Nut, Hex, 1/2-13 GR5

Note: (Used on Tractors w/Serial No. 192,001 & above)

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 17863

Skirt, Extension
(Superseded to 17863-0637)

Variations

Cub Cadet 17863-0637

SKIRT-EXTENSION - POWDER BLACK (0637)

$

$

Not available

$

$

44

Cub Cadet 710-0167

Bolt, Carriage, 1/4-20 X .50 Lg
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

45

Cub Cadet 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0
