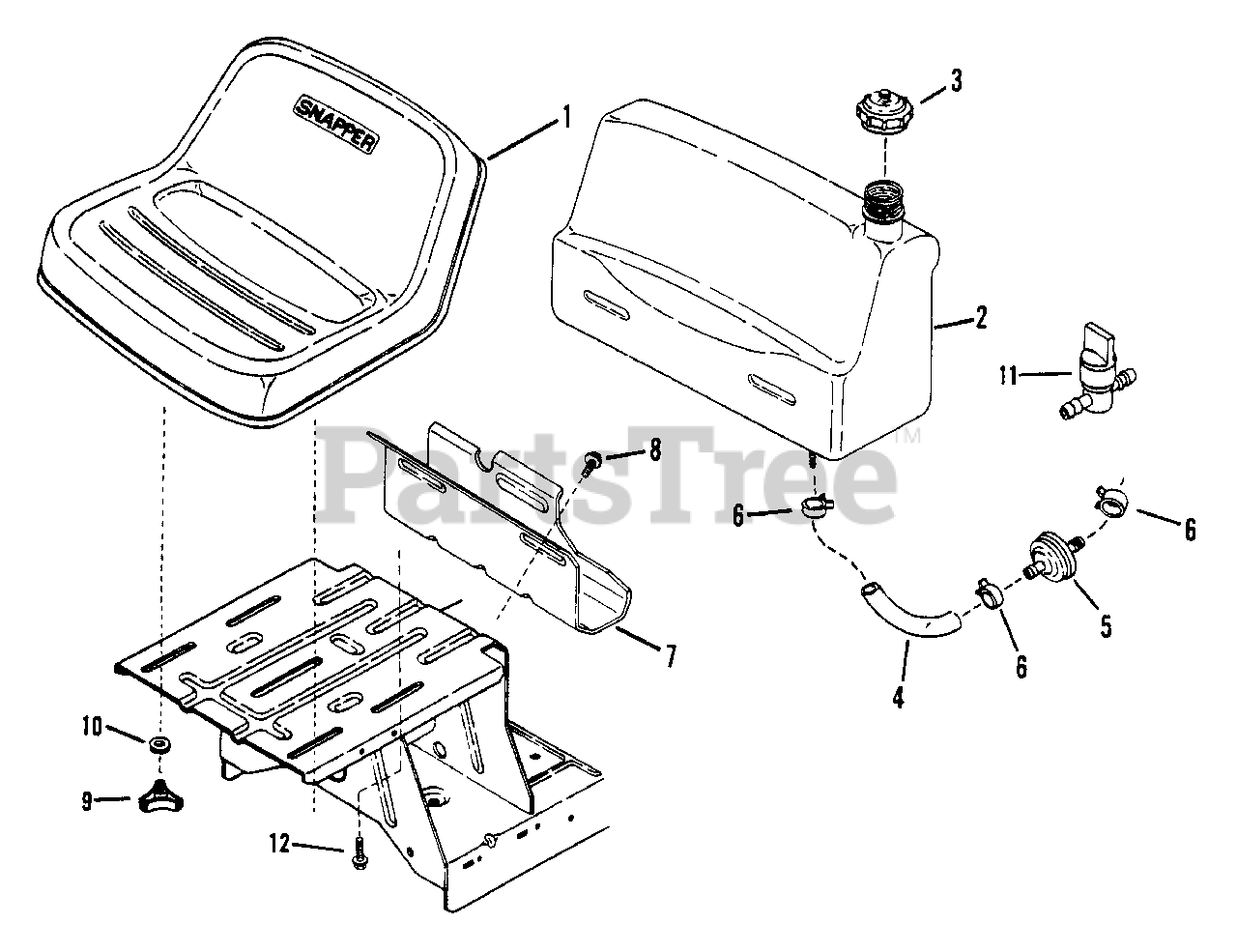

331314BE (80639) - Snapper 33" Rear-Engine Riding Mower, 13hp Fuel Tank & Operators Seat Parts Diagram

33" Rear-Engine Riding Mower, 13hp

Fuel Tank & Operators Seat Parts Diagram

  • Title

1

Snapper 7028650

SEAT, Operator (Low Back)
(Superseded to 7028650YP)

Note: Was 28333

$277.99

$

Usually ships in 2-12 days

0

1

Snapper 7028650

SEAT, Operator (Mid Back)
(Superseded to 7028650YP)

Note: Was 16082

$277.99

$

Usually ships in 2-12 days

0

1

Snapper 7028650

SEAT, Operator (Deluxe Back)
(Superseded to 7028650YP)

Note: Was 22585

$277.99

$

Usually ships in 2-12 days

0

2

Snapper 7051905

ASSEMBLY, Fuel Tank
(Superseded to 7051905YP)

Note: (Includes Item 3)

$213.99

$

In Stock, only 1 left!

0

3

Snapper 7012515

CAP, Fuel Tank
(Superseded to 7012515YP)

$

$

Not available

4

Snapper 7032015

HOSE, Fuel (7" Long)
(Superseded to 791766)

$8.49

$

In Stock, Qty 10

0

4

Snapper 7073240

HOSE, Fuel (5" Long)
(Superseded to 7073240SM)

Note: Was 32038

$24.99

$

Usually ships in 2-12 days

0

4

Snapper 7076272

HOSE, Fuel (8-1/2" Long)
(Superseded to 791766)

$8.49

$

In Stock, Qty 10

0

4

Snapper 7012638

HOSE, Fuel (12-1/2" Long);
(Superseded to 791766)

Note: Was 12912 (Kohler Only)

$8.49

$

In Stock, Qty 10

0

5

Snapper 7014359

FILTER, Fuel (In-Line)
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

6

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 9

0

7

Snapper 7033377

BRACKET, Fuel Tank (Rear)
(Superseded to 7033377BMYP)

$

$

Not available

8

Snapper 7091542

SCREW, 5/16-18 x 5/8" Self-Tapping
(Superseded to 703932)

$5.49

$

Usually ships in 2-12 days

0

9

Snapper 7023191

KNOB, Seat Adjusting
(Superseded to 7023191SM)

$6.99

$

In Stock, only 3 left!

0

10

Snapper 7013849

SPACER, 5/16
(Superseded to 703970)

$

$

Not available

11

Snapper 7034212

VALVE, Fuel Shut-Off
(Superseded to 7034212YP)

Note: Was 24507 (Accessory)

$33.99

$

In Stock, only 2 left!

0

12

Snapper 7091038

BOLT, 5/16-18 x 1/2" Hex Flange Lock
(Superseded to 7091038YP)

$4.49

$

In Stock, Qty 9

0
