3314 H (990655) - Simplicity Sovereign Garden Tractor, 14hp POWER TAKE-OFF Parts Diagram

Sovereign Garden Tractor, 14hp

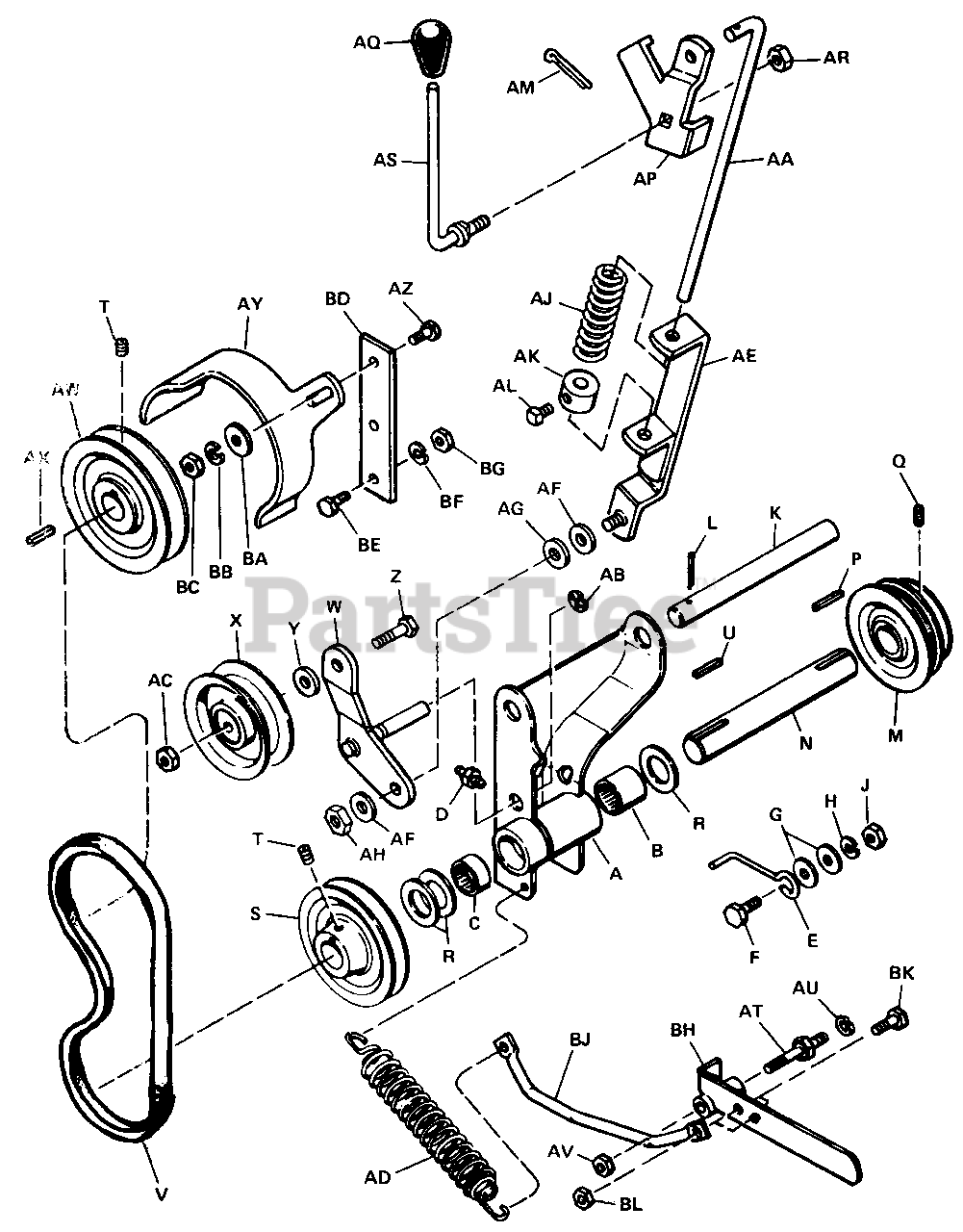

POWER TAKE-OFF Parts Diagram

  • Title

A

Simplicity 157675

Bracket, P.T O. Assy.

$

$

Not available

B

Simplicity 2157678SM

Bearing, Roller

$34.99

$

Usually ships in 2-12 days

0

C

Simplicity 2157679SM

Bearing, Roller

$26.99

$

Usually ships in 2-12 days

0

D

Simplicity 2172761SM

Grease Fitting

$6.99

$

Usually ships in 2-12 days

0

E

Simplicity 2161080SM

Stop Belt

$29.99

$

In Stock, only 1 left!

0

F

Simplicity 2705019

Hex Capscrew, 5/16"-18 x 1-1/4"

$

$

Not available

G

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

H

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

J

Simplicity 2717001

Full Hex Nut, 5/16"-18 N.C.

$

$

Not available

K

Simplicity 2154233

Rod Pivot, 5/8" Dia. x 6-13/16"

$

$

Not available

L

Simplicity 2722007

Cotter Pin

$

$

Not available

M

Simplicity 157680

Pulley

$

$

Not available

N

Simplicity 2157681SM

Shaft, P.T.O.

$

$

Not available

P

Simplicity 2157427SM

Key

$5.49

$

In Stock, only 1 left!

0

Q

Simplicity 2713502

Cup Pt. Skt. Hd. Screw Set, 5/16" 18 N.C. x 1/4"

$

$

Not available

R

Simplicity 2118252SM

Washer

$4.49

$

In Stock, Qty 10

0

S

Simplicity 172064

Pulley, P.T.O.

$

$

Not available

T

Simplicity 2713503

Cup Pt. Skt. Hd. Screw Set, 5/16" 18 N.C. x 5/16"

$

$

Not available

U

Simplicity 2157427SM

Key

$5.49

$

In Stock, only 1 left!

0

V

Simplicity 2172066SM

BELT, B-Sect, 28.94"

$24.99

$

Usually ships in 2-12 days

0

W

Simplicity 171326

Idler Lever Assy.

$

$

Not available

X

Simplicity 2164268

Idler Pulley

$

$

Not available

Y

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

Z

Simplicity 2705016

Hex Cap Screw, 3/8"-16 N.C. x 1-1/4"

$

$

Not available

AA

Simplicity 2171320SM

Clutch Rod, P.T.O.

$

$

Not available

AB

Simplicity 2157288

Retaining Ring

$

$

Not available

AC

Simplicity 2717524

Center Jam, 3/8" 16 N.C.

$

$

Not available

AD

Simplicity 2157262SM

Spring, Tension

$33.99

$

In Stock, only 1 left!

0

AE

Simplicity 171321

Rod Guide Assy.

$

$

Not available

AF

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

AG

Simplicity 2159134

Washer, Special

$

$

Not available

AH

Simplicity 2717525

Elastic Stop Nut, 5/16"-18 N.C.

$

$

Not available

AJ

Simplicity 2163103SM

Spring

$8.49

$

Usually ships in 2-12 days

0

AK

Simplicity 1729276SM

Set Collar

$

$

Not available

AL

Simplicity 2713001

Cup Pt. Sq. Hd. Screw Set, 1/4"-20 N.C. x 3/8"

$

$

Not available

AM

Simplicity 2722016

Cotter Pin, 3/32" x 1/2"

$

$

Not available

AN

Simplicity 2717510

Full Lock Hex Nut, 3/8"-16 N.C.

$

$

Not available

AP

Simplicity 172166

Clutch Lever Assy. P.T.O.

$

$

Not available

AQ

Simplicity 2172038SM

Knob, P.T.O.
(Superseded to 1732470SM)

$19.99

$

In Stock, only 1 left!

0

AR

Simplicity 2717510

Full Lock Hex Nut, 3/8"-16 N.C.

$

$

Not available

AS

Simplicity 2172040

Clutch Handle, P.T.O.

$

$

Not available

AT

Simplicity 2157273SM

Stud

$25.99

$

Usually ships in 2-12 days

0

AU

Simplicity 2720006

Lock Washer, 7/16"

$

$

Not available

AV

Simplicity 2717519

Full Lock Hex. Nut, 7/16"

$

$

Not available

AW

Simplicity 172065

Pulley

$

$

Not available

AX

Simplicity 2805850SM

Key

$2.49

$

Usually ships in 2-12 days

0

AY

Simplicity 164152

Guard Belt

$

$

Not available

AZ

Simplicity 2705005

Hex Cap Screw, 3/8"-16 N.C. x 1"

$

$

Not available

BA

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

BB

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

BC

Simplicity 2717003

Full Hex Nut, 3/8"-16 N.C.

$

$

Not available

BD

Simplicity 157050

Guard Belt Support, 3/16" x 1-1/4" x 5-7/16"

$

$

Not available

BE

Simplicity 2705007

Hex Cap Screw, 5/16"-18 N.C

$

$

Not available

BF

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

BG

Simplicity 2717001

Full Hex Nut, 5/16"-18 N.C.

$

$

Not available

BH

Simplicity 2164155SM

Handle Assy.

$102.99

$

Usually ships in 2-12 days

0

BJ

Simplicity 2164047

Spring Tension Rod

$

$

Not available

BK

Simplicity 2705017

Hex Cap Screw, 5/16"-18 N.C. x 3/4"

$

$

Not available

BL

Simplicity 2717511

Full Lock Hex Nut, 5/16"-18 N.C.

$

$

Not available
