3314 V (990654) - Simplicity Sovereign Garden Tractor ENGINE AND DRIVE SHAFT-SOVEREIGN Parts Diagram

Sovereign Garden Tractor

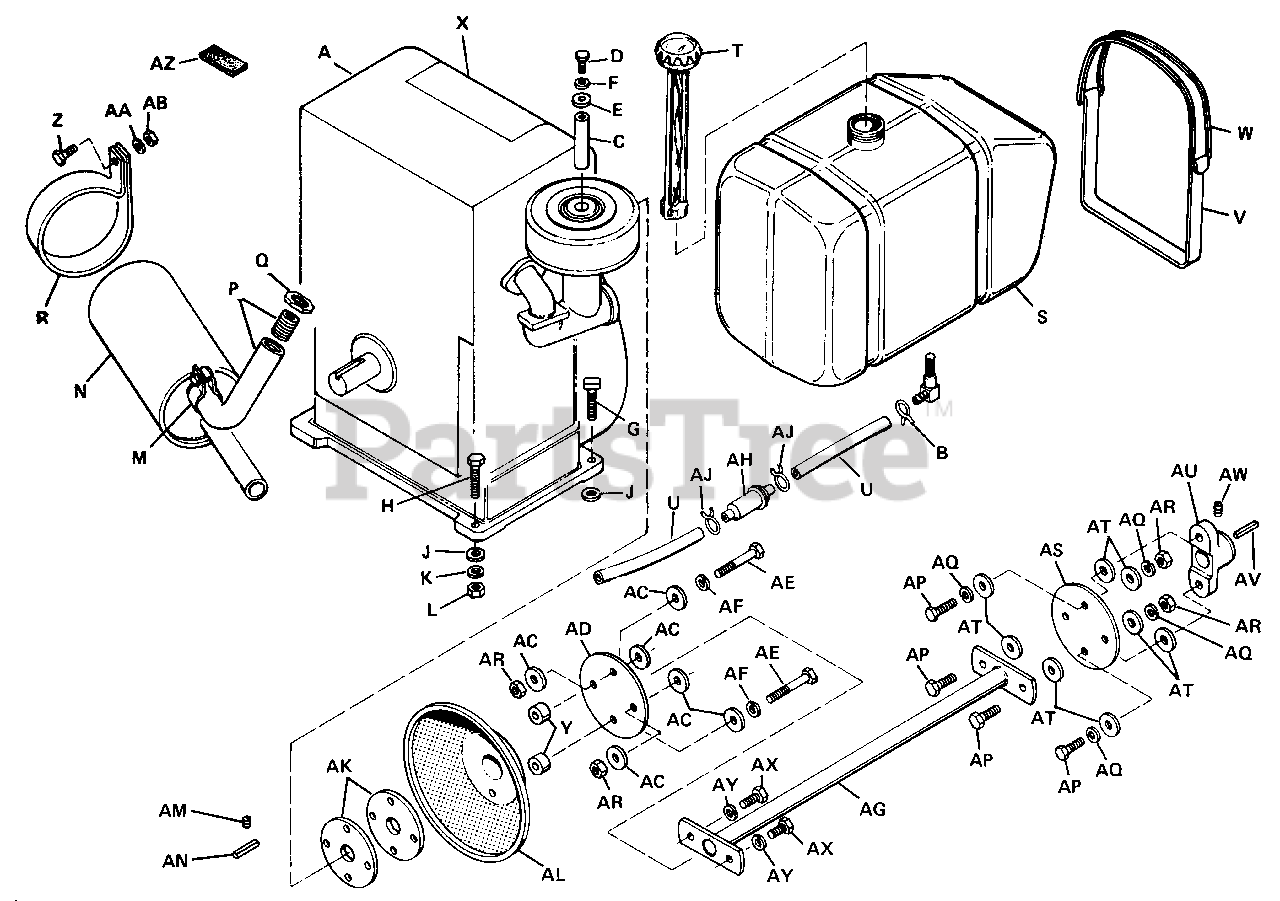

ENGINE AND DRIVE SHAFT-SOVEREIGN Parts Diagram

  • Title

A

ENGINE, 14 HP, Briggs & Stratton, Model 320421, Type 0134-01

$

$

Not available

B

Simplicity 2154372

Clamp Hose (For Service Only)

$

$

Not available

C

Simplicity 157126

Air Cleaner Spacer

$

$

Not available

D

Simplicity 2715018

Hex Cap Screw, 1/4"-20 N.C. x 5/8"

$

$

Not available

E

Simplicity 2719006

Plain Washer, 1/4"

$

$

Not available

F

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

G

Simplicity 172455

Rec't. Head Screw, 3/8"-16 N.C. x 1-5/16"

$

$

Not available

H

Simplicity 2705009

Hex Cap Screw, 3/8"-16 N.C. x 1-1/2"

$

$

Not available

J

Simplicity 2719001

Plain Washer, 3/8" Std.

$

$

Not available

K

Simplicity 2720004

Lock Washer, 3/8"

$

$

Not available

L

Simplicity 2717003

Hex Nut Full, 3/8"-16 N.C.

$

$

Not available

M

Simplicity 2172061SM

Muffler Clamp
(Superseded to 2831893SM)

$5.49

$

Usually ships in 2-12 days

0

N

Simplicity 2170456

Muffler, Exhaust

$

$

Not available

P

Simplicity 2172195

Elbow & Nipple Assy.

$

$

Not available

Q

Simplicity 2154378SM

Lock Nut

$6.99

$

Usually ships in 2-12 days

0

R

Simplicity 2171880SM

Strap, Muffler

$32.99

$

Usually ships in 2-12 days

0

S

Simplicity 2171115

Tank, Fuel

$

$

Not available

T

Simplicity 2171252SM

Cap, Fuel Tank

$31.99

$

In Stock, Qty 12

0

U

Simplicity 2173204

Hose, Fuel, Flexible

$

$

Not available

V

Simplicity 2171330SM

Strap, Tank

$43.99

$

Usually ships in 2-12 days

0

W

Simplicity 2172744SM

"O" Ring

$18.99

$

In Stock, only 3 left!

0

X

Simplicity 2157096

Decal, Caution

$

$

Not available

Y

Simplicity 2172329SM

Spacer

$

$

Not available

Z

Simplicity 2705012

Hex Cap Screw, 5/16"-18 N.C. x 5/8"

$

$

Not available

AA

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

AB

Simplicity 2717001

Hex Nut, Full, 5/16"-18 N.C.

$

$

Not available

AC

Simplicity 2157424SM

Washer, Special

$7.49

$

In Stock, Qty 5

0

AD

Simplicity 2173026SM

Coupling

$39.99

$

In Stock, only 2 left!

0

AE

Simplicity 2715036

Hex Cap Screw, 3/8"-16 N.C. x 2-1/4" SAE Grade 5

$

$

Not available

AF

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

AG

Simplicity 2172328SM

Shaft Assy., Drive
(Superseded to 2172328ASM)

$

$

Not available

AH

Simplicity 173203

Fuel Filter

$

$

Not available

AJ

Simplicity 2154372

Hose Clamp

$

$

Not available

AK

Simplicity 172674

Spacer

$

$

Not available

AL

Simplicity 172389

Screen Assy., Engine

$

$

Not available

AM

Simplicity 2713504

Set Screw

$

$

Not available

AN

Simplicity 2171241SM

KEY, Hi-Pro

$5.99

$

Usually ships in 2-12 days

0

AP

Simplicity 2172677

Hex Cap Screw, 3/8"-16 N.C. x 1-1/8"

$

$

Not available

AQ

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

AR

Simplicity 2717003

Hex Nut, Full, 3/8"-16 N.C.

$

$

Not available

AS

Simplicity 2173026SM

Coupling

$39.99

$

In Stock, only 2 left!

0

AT

Simplicity 2157424SM

Washer, Special

$7.49

$

In Stock, Qty 5

0

AU

Simplicity 2172264SM

Flange, Drive Shaft

$63.99

$

Usually ships in 2-12 days

0

AV

Simplicity 2157427SM

Key, Drive Shaft

$5.49

$

In Stock, only 1 left!

0

AW

Simplicity 2715049

Cup Pt. Socket Head Set Screw, 3/8"-24 N.F. x 3/8"

$

$

Not available

AX

Simplicity 2172677

Hex Cap Screw, 3/8"-16 N.C. x 1-1/8"

$

$

Not available

AY

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

AZ

Simplicity 106582

Felt Gasket

$

$

Not available
