3314 V (990654) - Simplicity Sovereign Garden Tractor SEAT AND FENDERS Parts Diagram

Sovereign Garden Tractor

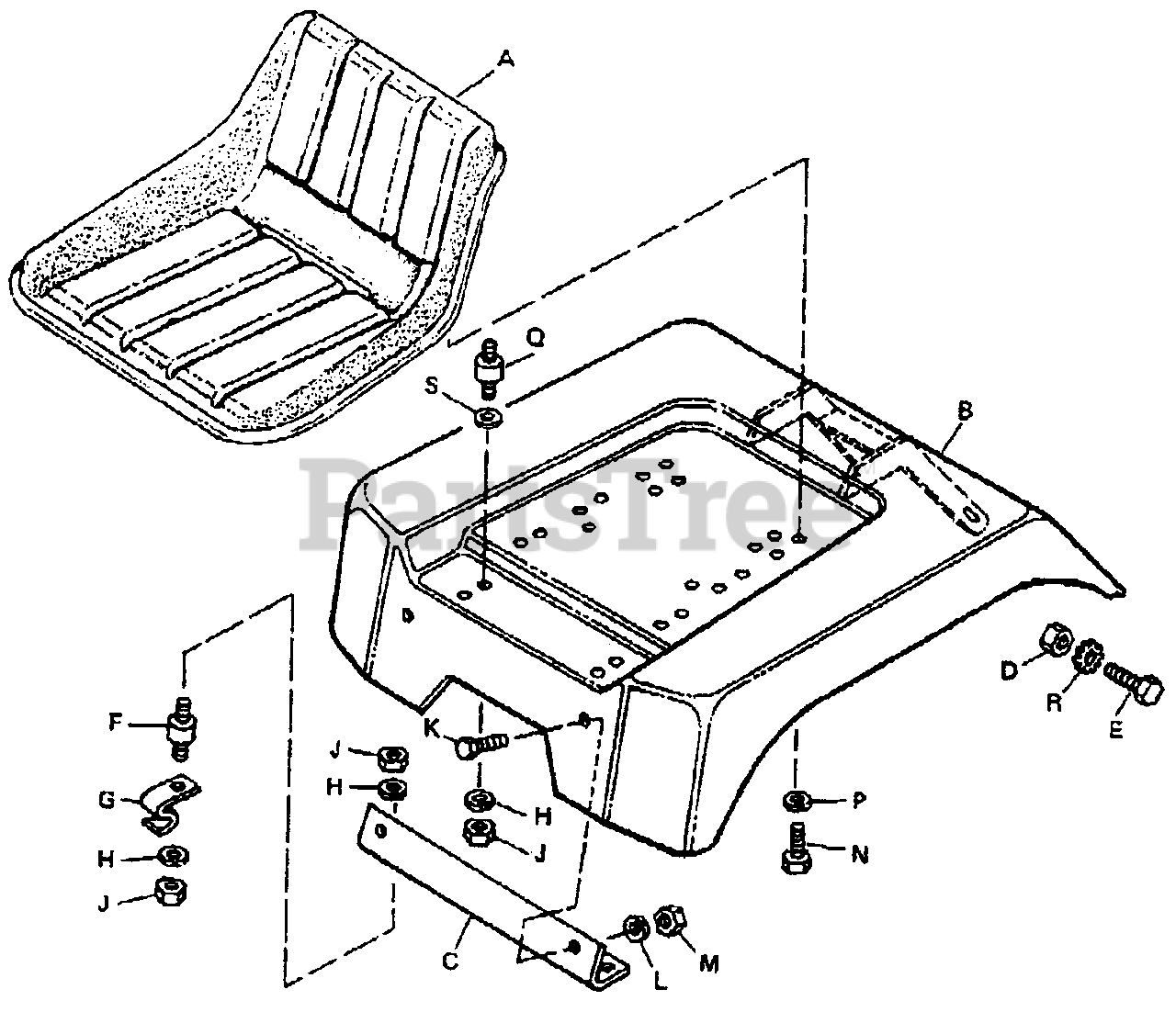

SEAT AND FENDERS Parts Diagram

  • Title

A

Simplicity 1686712SM

Seat Assy.

$487.99

$

In Stock, only 1 left!

0

B

Simplicity 166111

Seat Deck Assy.

$

$

Not available

C

Simplicity 2164029SM

Seat Deck Bracket, Front

$

$

Not available

D

Simplicity 2717510

Hex Locknut, Full, 3/8"-16

$

$

Not available

E

Simplicity 2705016

Hex Head Capscrew, 3/8"-16 x 1-1/4"

$

$

Not available

F

Simplicity 2159085SM

Cushion Connector, Front

$10.99

$

In Stock, only 2 left!

0

G

Simplicity 2164145

Spring Clip

$

$

Not available

H

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

J

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

K

Simplicity 2705012

Hex Head Capscrew, 5/16"-18 x 5/8"

$

$

Not available

L

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

M

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

N

Simplicity 2705012

Hex Head Capscrew, 5/16"-18 x 5/8"

$

$

Not available

P

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

Q

Simplicity 2157094SM

Cushion Connector, Front

$11.99

$

Usually ships in 2-12 days

0

R

Simplicity 2721601

Lock Washer

$

$

Not available

S

Simplicity 2719006

Washer

$

$

Not available
