331520KVE (84585) - Snapper 33" Rear-Engine Riding Mower, 15hp Wheels Front Parts Diagram

33" Rear-Engine Riding Mower, 15hp

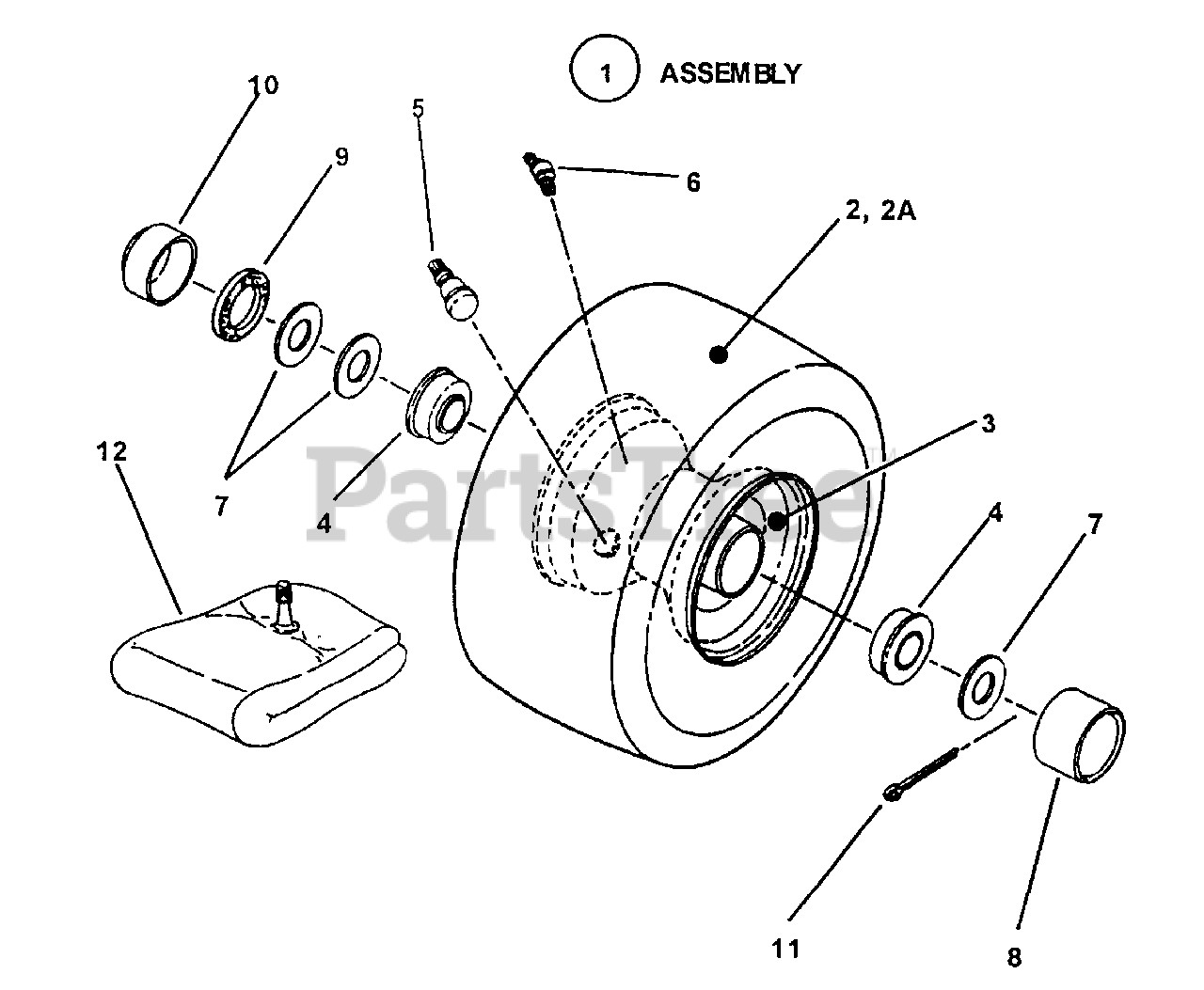

Wheels Front Parts Diagram

  • Title

1

Snapper 7058943

ASSEMBLY, Front Tire & Rim
(Superseded to 7058943YP)

Note: (Complete); (Includes Items 2, 3, 4, 5 & 6)

$105.99

$

In Stock, only 1 left!

0

1

Snapper 7058944

ASSEMBLY, Front Tire & Rim
(Superseded to 7058944YP)

Note: (Includes Items 2A, 3A, 4, 5, & 6 )

$140.99

$

Usually ships in 2-12 days

0

2

Snapper 7073563

TIRE, 11 x 4.00-4
(Superseded to 7073563YP)

Note: (Kenda)

$70.99

$

Usually ships in 2-12 days

0

2A

Snapper 7073564

TIRE, 11 x 4:00-4
(Superseded to 7073564YP)

Note: (Carlisle)

$63.99

$

Usually ships in 2-12 days

0

3

Snapper 7017146

RIM - Monitor
(Superseded to 7058943YP)

Note: (For 4.10/3.50 x 4 Tire)

$105.99

$

In Stock, only 1 left!

0

3

Snapper 7073588

RIM - Carlisle
(Superseded to 7073588YP)

Note: (Carlisle)

$67.99

$

Usually ships in 2-12 days

0

4

Snapper 7011807

BEARING, Ball 3/4" ID
(Superseded to 7011807YP)

$7.99

$

In Stock, Qty 20+

0

5

Snapper 7012234

VALVE, Air (Snap-in)
(Superseded to 7012234SM)

$6.99

$

In Stock, Qty 8

0

6

Snapper 7014669

FITTING Lube, Straight 3/16"
(Superseded to 7014669YP)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7010935

WASHER, 3/4" I.D.
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7011022

CAP, Hub
(Superseded to 7011022YP)

$4.49

$

In Stock, Qty 8

0

9

Snapper 7011032

SEAL, Felt
(Superseded to 7011032YP)

$4.99

$

In Stock, Qty 16

0

10

Snapper 7031038

CAP, Dust
(Superseded to 7031038YP)

$4.99

$

In Stock, Qty 20+

0

11

Snapper 7091516

PIN, Cotter 5/32 x 1"
(Superseded to 703984)

$4.49

$

In Stock, Qty 20+

0

12

Snapper 7010821

TUBE, Inner
(Superseded to 7010821YP)

Note: (For 4.10/3.50 x 4 Tire)

$19.99

$

In Stock, only 2 left!

0
