332 - International Harvester 21" Push Walk-Behind Mower (1971) Frame, Blade And Wheels Parts Diagram

21" Push Walk-Behind Mower

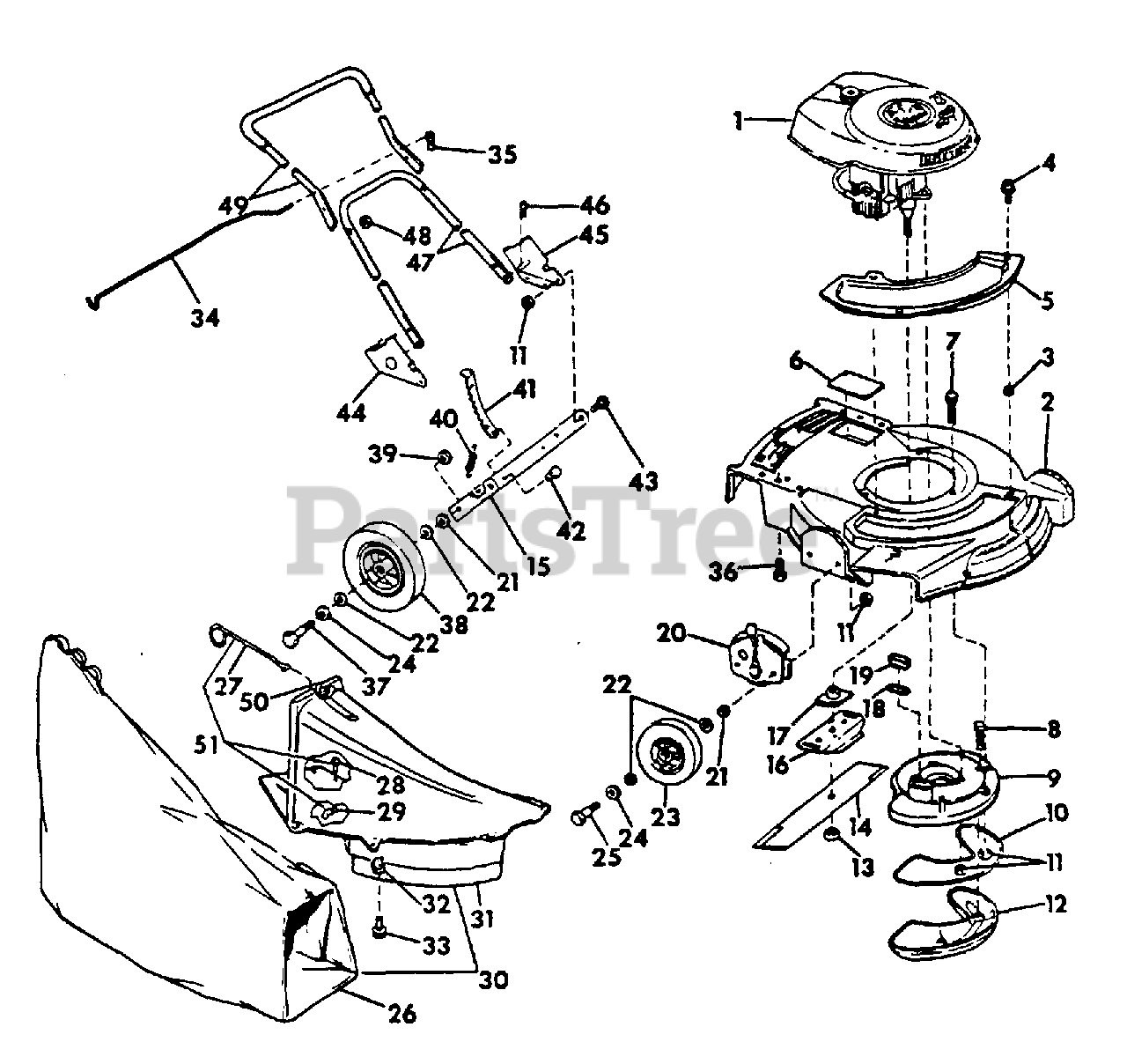

Frame, Blade And Wheels Parts Diagram

  • Title

1

ENGINE, IH

Note: (SEE "ENGINE, GOVERNOR AND AIR CLEANER" ILLUSTRATION AND PARTS LIST)

$

$

Not available

2

Cub Cadet IH-55592-C91

HOUSING ASSY, 21 IN.

Note: (REPLACES IH-545096-R91)

$

$

Currently unavailable

Cub Cadet IH-24644-R1

SCREW, 5/16-18 X 1-5/8 TYPE 8 HEX-HD CAP

$

$

Currently unavailable

3

Cub Cadet IH-540590-R1

NUT, GROMMET

$

$

Currently unavailable

4

Cub Cadet IH-544346-R1

SCREW, HEX-HD

$

$

Currently unavailable

5

Cub Cadet IH-545157-R1

COVER, CHUTE OPENING

$

$

Currently unavailable

Cub Cadet IH-145067

SCREW, NO. 6 X 3/8 RD-HD METALLIC DRIVE

$

$

Currently unavailable

6

Cub Cadet IH-544347-R1

COVER, POCKET

$

$

Currently unavailable

7

Cub Cadet IH-544286-R1

SCREW, MUFFLER PLATE TO HSG

$

$

Currently unavailable

8

Cub Cadet IH-544287-R1

SCREW, MUFFLER TO MUFFLER PLATE

$

$

Currently unavailable

9

Cub Cadet IH-544288-R2

PLATE W/SCREW, MUFFLER

$

$

Currently unavailable

Cub Cadet IH-180085

BOLT, 5/16 X 1-3/4 TYPE 5

$

$

Currently unavailable

10

Cub Cadet IH-544289-R1

GASKET, MUFFLER

$

$

Currently unavailable

11

Cub Cadet IH-544290-R1

NUT, NYLOK

$

$

Currently unavailable

12

Cub Cadet IH-544291-R1

MUFFLER

$

$

Currently unavailable

Cub Cadet IH-273924

NUT, 1/4-20 CAD TORQUE HEX.

$

$

Currently unavailable

13

Cub Cadet IH-544293-R1

NUT, BLADE

$

$

Currently unavailable

14

Cub Cadet IH-544348-R1

BLADE, 21 IN.

$

$

Not available

Cub Cadet IH-557269-R1

WASHER, 21/32 X 2 X 16 GA

$

$

Currently unavailable

15

Cub Cadet IH-544350-R1

BRACKET

$

$

Currently unavailable

16

Cub Cadet IH-544295-R1

STIFFENER, BLADE

$

$

Currently unavailable

17

Cub Cadet IH-544297-R1

COLLAR & PLATE

$

$

Currently unavailable

18

Cub Cadet IH-544298-R1

GASKET, EXHAUST

$

$

Not available

19

Cub Cadet IH-544299-R1

SLEEVE, EXHAUST GASKET

$

$

Currently unavailable

20

Cub Cadet IH-544301-R1

ADJUSTMENT, HEIGHT

$

$

Currently unavailable

Cub Cadet IH-454869

SCREW, 5/16-18 X 3/4 ZND HEX-HD CAP

$

$

Currently unavailable

21

Cub Cadet IH-544303-R1

WASHER

$

$

Currently unavailable

22

Cub Cadet IH-544304-R1

WASHER, FELT

$

$

Currently unavailable

23

Cub Cadet IH-544305-R1

WHEEL & TIRE, 6 IN.

$

$

Not available

24

Cub Cadet IH-544306-R1

WASHER, WHEEL BOLT HD

$

$

Currently unavailable

25

Cub Cadet IH-544307-R1

BOLT, WHEEL FRT SHOULDER
(Superseded to 938-0373)

$9.99

$

In Stock, Qty 20+

0

26

Cub Cadet IH-544308-R1

BAG & FRAME

$

$

Not available

27

Cub Cadet IH-548491-R1

GUARD, WHEEL

$

$

Currently unavailable

28

Cub Cadet IH-545114-R1

SCREW

$

$

Currently unavailable

29

Cub Cadet IH-545115-R1

NUT, SPEED

$

$

Currently unavailable

30

Cub Cadet IH-545088-R91

CHUTE ASSY

Note: (CONSISTS OF REF NOS 26, 31 & 34)

$

$

Currently unavailable

31

SKIRT ASSY CHUTE

Note: (NOT SERVICED SEPARATELY ORDER CHUTE, IH-545088-R91)

$

$

Not available

32

Cub Cadet IH-79993-R1

NUT, SPEED

$

$

Not available

Cub Cadet IH-453996

NUT, 8-32 CAD HEX-MACH SCREW
(Superseded to 712-0142)

$4.99

$

In Stock, only 3 left!

0

Cub Cadet IH-25633-R1

SCREW, 8-32 X 7/16 C-Z PAN-HD SLT MACH

$

$

Currently unavailable

33

Cub Cadet IH-544309-R1

SCREW, LONG

$

$

Currently unavailable

34

Cub Cadet IH-544312-R1

ROD, GRASS BAR

$

$

Currently unavailable

35

Cub Cadet IH-544313-R1

CLIP, ROD

$

$

Currently unavailable

36

Cub Cadet IH-544315-R1

SCREW, HANDLE BRACKET

$

$

Currently unavailable

37

Cub Cadet IH-544317-R1

BOLT, REAR WHEEL

$

$

Currently unavailable

38

Cub Cadet IH-544318-R92

WHEEL & TIRE, 8 IN.

$

$

Not available

39

Cub Cadet IH-544322-R1

NUT, REAR WHEEL BOLT

$

$

Currently unavailable

40

Cub Cadet IH-544323-R1

SPRING, HEIGHT ADJ

$

$

Currently unavailable

41

Cub Cadet IH-544325-R1

LEVER, HEIGHT ADJ REAR

$

$

Currently unavailable

42

Cub Cadet IH-544327-R1

PIN

$

$

Currently unavailable

Cub Cadet IH-108629

PIN, 3/32 X 7/8 COT.
(Superseded to 914-0111)

$5.49

$

In Stock, Qty 20+

0

43

Cub Cadet IH-544316-R1

BOLT

$

$

Currently unavailable

44

Cub Cadet IH-55416-C1

BRACKET, HANDLE RH

Note: (REPLACES IH-545108-R1)

$

$

Currently unavailable

45

Cub Cadet IH-55415-C1

BRACKET, HANDLE LH

Note: (REPLACES IH-545107-R1)

$

$

Currently unavailable

46

Cub Cadet IH-968928-R1

PIN, HAIR

$

$

Currently unavailable

47

Cub Cadet IH-544345-R1

HANDLE, BOTTOM

$

$

Currently unavailable

48

Cub Cadet IH-378531-R1

NUT, CENTERLOCK

$

$

Currently unavailable

Cub Cadet IH-180018

SCREW, 1/4-20 X 5/8 ZND HEX-HD CAP HANDLE
(Superseded to 710-0751)

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet IH-545103-R1

HANDLE & GRIP, TOP

$

$

Currently unavailable

50

Cub Cadet IH-545112-R1

CLIP, CHUTE

$

$

Currently unavailable

51

Cub Cadet IH-545113-R91

GUARD ASSY, WHEEL

$

$

Currently unavailable

Cub Cadet IH-59360-C91

PART ACCESSORY, LEAF BAG

$

$

Currently unavailable

Cub Cadet IH-547992-R91

PARTS ACCESSORY, DELUXE GRASS BAG

$

$

Not available
