3323 - International Harvester 21" Push Walk-Behind Mower (1973 - 1974) Electric Starter Parts Diagram

21" Push Walk-Behind Mower

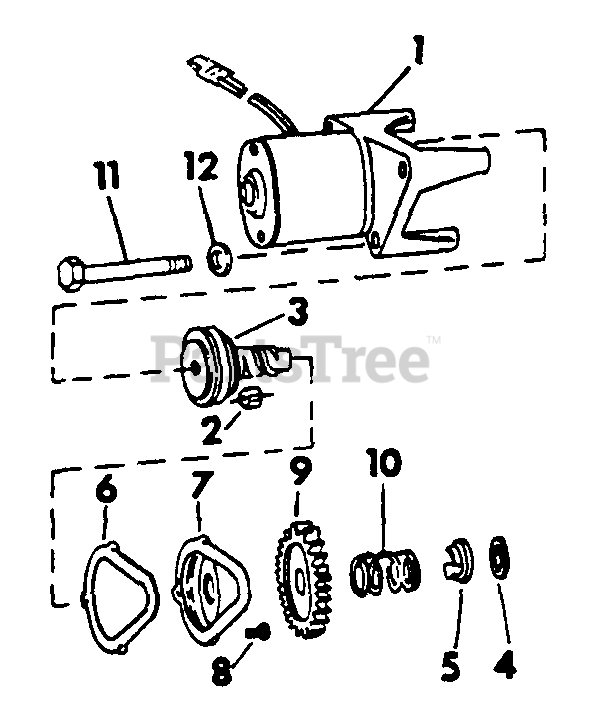

Electric Starter Parts Diagram

  • Title

Cub Cadet IH-55513-C91

STARTER ASSY, ELECTRIC

$

$

Currently unavailable

1

Cub Cadet IH-55614-C1

MOTOR AND BRACKET

$

$

Currently unavailable

2

Cub Cadet IH-55967-C1

PINION

$

$

Currently unavailable

3

Cub Cadet IH-55514-C2

GEAR

$

$

Currently unavailable

4

Cub Cadet IH-55515-C1

RETAINER

Note: (ORDER GEAR, IH-55514-C1 & RING, IH-60917-C1)

$

$

Currently unavailable

4

Cub Cadet IH-60917-C1

RING, RETAINING

$

$

Currently unavailable

5

Cub Cadet IH-55516-C1

STOPWASHER, PINION

$

$

Currently unavailable

6

Cub Cadet IH-55517-C1

GASKET, GEAR HOUSING COVER

$

$

Currently unavailable

7

Cub Cadet IH-55518-C1

COVER, GEAR HOUSING

$

$

Currently unavailable

8

Cub Cadet IH-55519-C1

SCREW

$

$

Currently unavailable

9

Cub Cadet IH-55520-C1

PINION, STARTER

$

$

Currently unavailable

10

Cub Cadet IH-55521-C1

SPRING

$

$

Currently unavailable

11

Cub Cadet IH-55523-C1

SCREW

$

$

Currently unavailable

12

Cub Cadet IH-22653-R1

WASHER, .281 X .625 X .065 CD
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

Cub Cadet IH-58610-C1

KIT, ELECTRIC START

Note: CONSISTS OF REFERENCE NUMBERS 3 THRU 6, 9 AND 10

$

$

Currently unavailable
