3323 - International Harvester 21" Push Walk-Behind Mower (1973 - 1974) Frame, Blade & Wheels Parts Diagram

21" Push Walk-Behind Mower

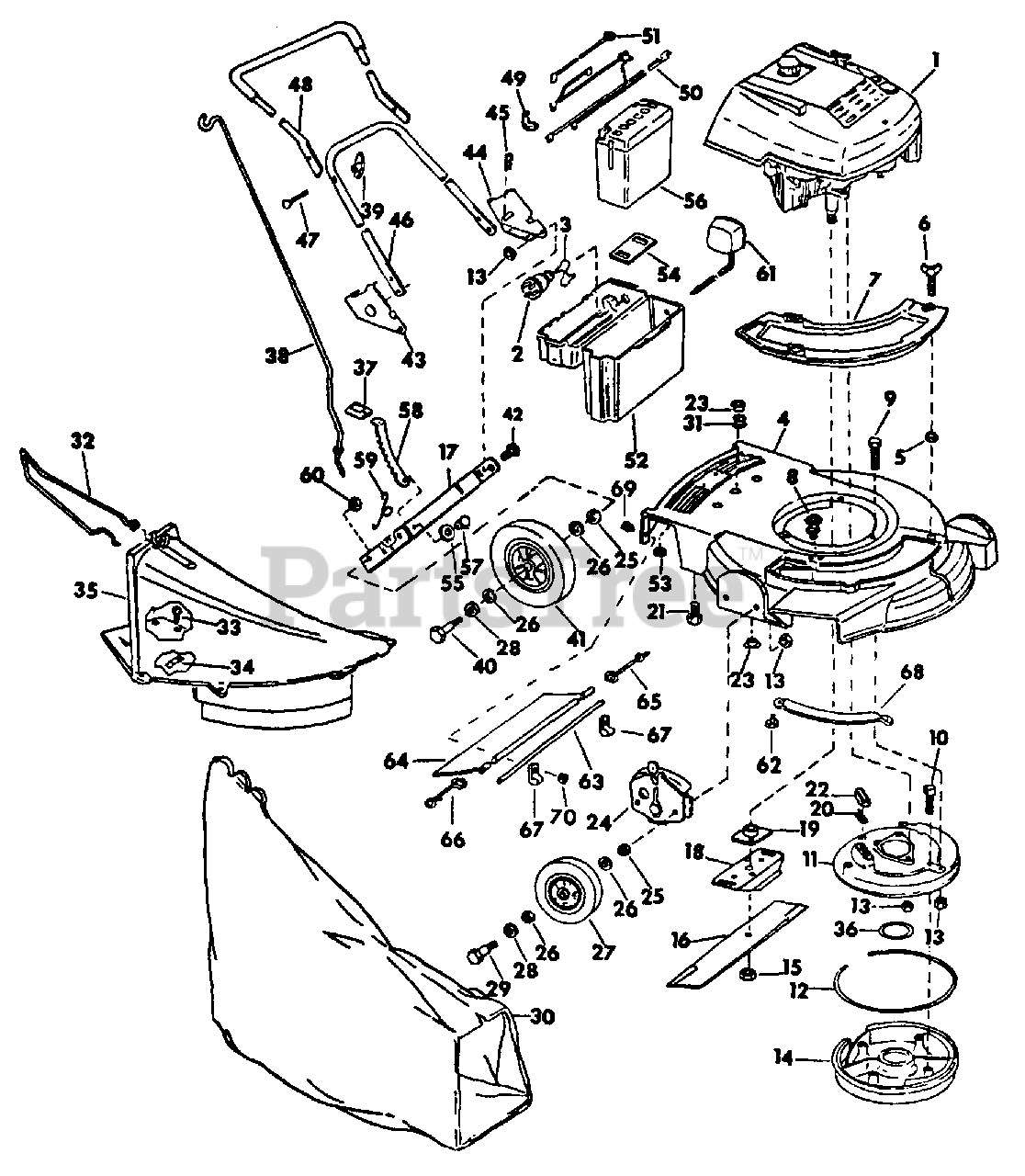

Frame, Blade & Wheels Parts Diagram

  • Title

1

ENGINE, IH

Note: (SEE "ENGINE, GOVERNOR AND AIR CLEANER" ILLUSTRATION AND PARTS LIST)

$

$

Not available

2

Cub Cadet IH-544352-R91

SWITCH ASSY

$

$

Currently unavailable

3

Cub Cadet IH-619743-C1

KEY

$

$

Currently unavailable

4

Cub Cadet IH-55592-C91

HOUSING ASSY, 21IN.

$

$

Currently unavailable

5

Cub Cadet IH-806122-C1

GROMMET

$

$

Currently unavailable

6

Cub Cadet IH-55410-C1

SCREW, WING

$

$

Currently unavailable

7

Cub Cadet IH-545157-R1

COVER, CHUTE OPENING

Note: (REPLACES IH-55414-C1)

$

$

Currently unavailable

8

Cub Cadet IH-55409-C1

SCREW, SHOULDER

$

$

Currently unavailable

9

Cub Cadet IH-55420-C1

SCREW, MUFFLER PLT TO HSG

$

$

Currently unavailable

10

Cub Cadet IH-55419-C1

SCREW, MUFFLER TO PLATE

$

$

Currently unavailable

11

Cub Cadet IH-55422-C1

PLATE, MUFFLER

$

$

Currently unavailable

12

Cub Cadet IH-55421-C1

GASKET, MUFFLER OUTSIDE

$

$

Currently unavailable

13

Cub Cadet IH-544290-R1

NUT, NYLOK

$

$

Currently unavailable

14

Cub Cadet IH-55423-C1

COVER, MUFFLER

$

$

Currently unavailable

Cub Cadet IH-273924

NUT, 1/4-20 CD TORQUE HEX.

$

$

Currently unavailable

15

Cub Cadet IH-544293-R1

NUT, BLADE

$

$

Currently unavailable

16

Cub Cadet IH-544348-R1

BLADE, 21 in.

$

$

Not available

Cub Cadet IH-557269-R1

WASHER, 21/32 X 2 X 16 GA

$

$

Currently unavailable

17

Cub Cadet IH-544350-R1

BRACKET

$

$

Currently unavailable

18

Cub Cadet IH-544295-R1

STIFFENER, BLADE

$

$

Currently unavailable

19

Cub Cadet IH-544297-R1

COLLAR & PLATE

$

$

Currently unavailable

20

Cub Cadet IH-544298-R1

GASKET, EXHAUST

$

$

Not available

21

Cub Cadet IH-544315-R1

SCREW, HANDLE BRACKET

$

$

Currently unavailable

22

Cub Cadet IH-544299-R1

SLEEVE, EXHAUST GASKET

$

$

Currently unavailable

23

Cub Cadet IH-55430-C1

SPACER, FLANGED

$

$

Currently unavailable

24

Cub Cadet IH-544301-R1

ADJUSTMENT, HEIGHT

$

$

Currently unavailable

Cub Cadet IH-454869

SCREW, 5/16-18 X 3/4 ZND HEX-HD CAP

$

$

Currently unavailable

25

Cub Cadet IH-544303-R1

WASHER

$

$

Currently unavailable

26

Cub Cadet IH-544304-R1

WASHER, FELT

$

$

Currently unavailable

27

Cub Cadet IH-55413-C1

WHEEL AND TIRE - 6 IN. FRONT

$

$

Currently unavailable

28

Cub Cadet IH-544306-R1

WASHER, WHEEL BOLT HD

$

$

Currently unavailable

29

Cub Cadet IH-544307-R1

BOLT, WHEEL FRT SHOULDER
(Superseded to 938-0373)

$8.49

$

In Stock, Qty 20+

0

30

Cub Cadet IH-59257-C1

BAG, GRASS

$

$

Not available

31

Cub Cadet IH-55594-C1

GROMMET

$

$

Currently unavailable

32

Cub Cadet 1H-55424-C1

GUARD, WHEEL

$

$

Currently unavailable

33

Cub Cadet IH-548275-R1

SCREW

$

$

Currently unavailable

34

Cub Cadet IH-545115-R1

NUT, SPEED

$

$

Currently unavailable

35

Cub Cadet IH-548277-R91

CHUTE ASSY

Note: (INCLUDES REF NOS 33 AND 34)

$

$

Currently unavailable

36

Cub Cadet IH-55418-C1

GASKET, MUFFLER INSIDE

$

$

Currently unavailable

37

Cub Cadet IH-55411-C1

KNOB

$

$

Currently unavailable

38

Cub Cadet IH-55429-C1

ROD, GRASS BAG

$

$

Currently unavailable

39

Cub Cadet IH-55427-C1

KNOB

$

$

Currently unavailable

40

Cub Cadet IH-544317-R1

BOLT, REAR WHEEL

$

$

Currently unavailable

41

Cub Cadet IH-55412-C1

WHEEL & TIRE - 8 IN. REAR

$

$

Currently unavailable

Cub Cadet IH-108629

PIN, 3/32 X 7/8 COT.
(Superseded to 914-0111)

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet IH-544316-R1

BOLT

$

$

Currently unavailable

43

Cub Cadet IH-55416-C1

BRACKET L PIN, RH

$

$

Currently unavailable

44

Cub Cadet IH-55415-C1

BRACKET L PIN, LH

$

$

Currently unavailable

45

Cub Cadet IH-968928-R1

PIN, HAIR

$

$

Currently unavailable

46

Cub Cadet IH-55426-C1

HANDLE, BOTTOM

$

$

Not available

47

Cub Cadet IH-55428-C1

SCREW

$

$

Currently unavailable

48

Cub Cadet IH-55425-C1

HANDLE & GRIP, TOP

$

$

Currently unavailable

49

Cub Cadet IH-55597-C1

POD, INSULATION

$

$

Currently unavailable

50

Cub Cadet IH-55447-C1

HARNESS

$

$

Currently unavailable

51

Cub Cadet IH-55448-C1

LEAD

$

$

Currently unavailable

52

Cub Cadet IH-55598-C1

BOX, BATTERY

$

$

Currently unavailable

Cub Cadet IH-23911-R1

NUT, 1/4-20 CAD NYLON INSERT

$

$

Currently unavailable

Cub Cadet IH-12653-R1

BOLT, 1/4-20 X 3/4 ZND SQ-NK CRG

$

$

Currently unavailable

53

Cub Cadet IH-545109-R1

WASHER, BATTERY MTG BRACKET

$

$

Currently unavailable

54

Cub Cadet IH-55395-C1

STRAP, BATTERY BOX MTG

$

$

Currently unavailable

55

Cub Cadet IH-544371-R1

WASHER, SPRING

$

$

Currently unavailable

56

Cub Cadet IH-60724-C1

BATTERY, DRY CHARGED

$

$

Currently unavailable

57

Cub Cadet IH-544372-R1

PIN, HEIGHT ADJ LEVER

$

$

Currently unavailable

58

Cub Cadet IH-55417-C1

LEVER, REAR HGT ADJ

$

$

Currently unavailable

59

Cub Cadet IH-544323-R1

SPRING

$

$

Currently unavailable

60

Cub Cadet IH-544322-R1

NUT

$

$

Currently unavailable

61

Cub Cadet IH-545104-R1

CHARGER, TRICKLE

$

$

Currently unavailable

62

Cub Cadet IH-60726-C1

SCREW

$

$

Currently unavailable

63

Cub Cadet IH-60730-C1

ROD

$

$

Currently unavailable

64

Cub Cadet IH-60731-C1

SHIELD

$

$

Currently unavailable

65

Cub Cadet IH-60732-C1

SPRING, SHIELD LH

$

$

Currently unavailable

66

Cub Cadet IH-60733-C1

SPRING, SHIELD RH

$

$

Currently unavailable

67

Cub Cadet IH-60734-C1

CLAMP, ROD

$

$

Currently unavailable

68

Cub Cadet IH-60727-C1

BAR, TOE - 21IN.

$

$

Currently unavailable

69

Cub Cadet IH-180018

SCREW, 1/4-20 X 5/8 ZND HEX-HD CAP
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

70

Cub Cadet IH-9413992

NUT, 1/4-20 HEX LOCK CAD.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

Cub Cadet IH-55583-C1

PACKAGE, PRODUCT GRAPHIC

$

$

Currently unavailable
