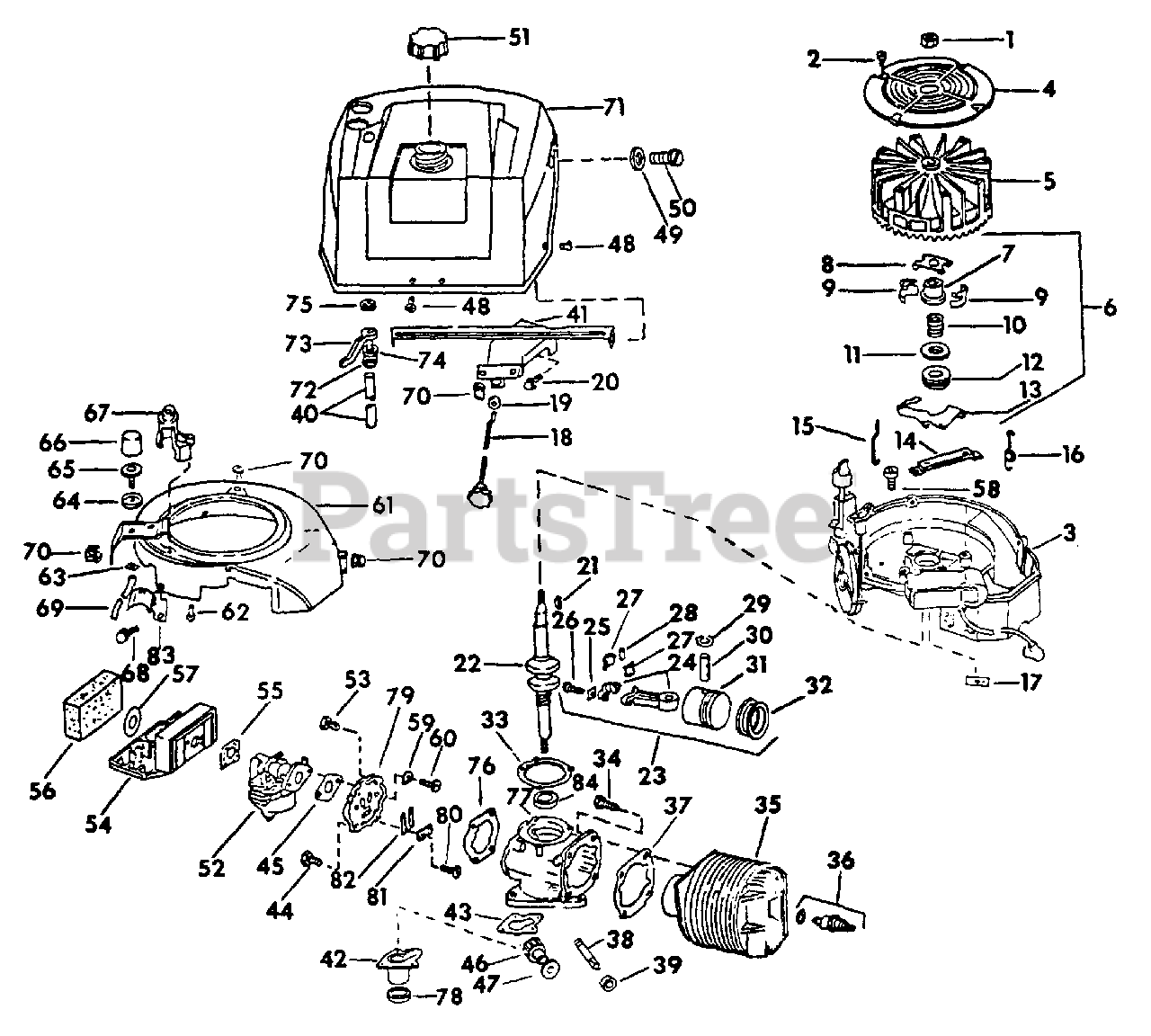

3324 - International Harvester 21" Self-Propelled Walk-Behind Mower (1973 - 1974) Engine, Governor And Air Cleaner Parts Diagram

21" Self-Propelled Walk-Behind Mower

Engine, Governor And Air Cleaner Parts Diagram

  • Title

1

Cub Cadet IH-271506

NUT 7/16-20 HEX.

$

$

Not available

Cub Cadet IH-131718

WASHER, 7/16 ZND INT-TOOTH LOCK

$

$

Currently unavailable

2

Cub Cadet IH-544362-R1

SCREW 10-24 1/2 TRUSS-HD REC TAP

$

$

Currently unavailable

3

MAGNETO ASSY

Note: (SEE "MAGNETO AND STARTER" ILLUSTRATION AND PARTS LIST)

$

$

Not available

4

Cub Cadet IH-55452-C2

SCREEN, FLYWHEEL

$

$

Currently unavailable

5

Cub Cadet IH-55453-C1

FLYWHEEL

$

$

Currently unavailable

6

Cub Cadet IH-55964-C92

GOVERNOR ASSY

Note: (CONSISTS OF REF NOS 7 THRU 13)

$

$

Currently unavailable

7

Cub Cadet IH-544637-R1

COLLAR, GOVERNOR

$

$

Currently unavailable

8

Cub Cadet IH-544638-R1

YOKE, GOVERNOR

$

$

Currently unavailable

9

Cub Cadet IH-544639-R1

WEIGHT, GOVERNOR

$

$

Currently unavailable

10

Cub Cadet IH-544642-R1

SPRING, GOVERNOR

$

$

Currently unavailable

11

Cub Cadet IH-544643-R1

WASHER, THRUST

$

$

Currently unavailable

12

Cub Cadet IH-55454-C2

COLLAR, THRUST

$

$

Currently unavailable

13

Cub Cadet IH-544641-R1

LEVER, GOVERNOR

$

$

Currently unavailable

Cub Cadet IH-453800

SCREW, 10-24 X 3/8 C-Z FIL-HD SLT MACH

$

$

Currently unavailable

14

Cub Cadet IH-55456-C1

BRACKET, GOVERNOR LEVER

$

$

Currently unavailable

15

Cub Cadet IH-55457-C1

ROD, GOVERNOR

$

$

Currently unavailable

16

Cub Cadet IH-55455-C1

SPRING, VARIABLE SPEED

$

$

Currently unavailable

17

Cub Cadet IH-55458-C1

TAB. ROD

$

$

Currently unavailable

Cub Cadet IH-271468

SCREW. 1/4-20 X 3/4 C-Z FIL-HD SLT MACH

$

$

Currently unavailable

18

Cub Cadet IH-55470-C1

KNOB & ROD

$

$

Currently unavailable

19

Cub Cadet IH-55471-C1

GROMMET

$

$

Currently unavailable

20

Cub Cadet IH-545151-R1

SCREW

$

$

Currently unavailable

21

Cub Cadet IH-544655-R1

KEY, CRANKSHAFT

$

$

Currently unavailable

22

Cub Cadet IH-55472-C1

CRANKSHAFT

$

$

Currently unavailable

23

Cub Cadet IH-545117-R91

PISTON & CONNECTING ROD ASSY

Note: (CONSISTS OF REF NOS 24 THRU 32)

$

$

Currently unavailable

24

Cub Cadet IH-545118-R91

ROD ASSY, CONNECTING

$

$

Currently unavailable

25

Cub Cadet IH-545119-R1

LOCKPLATE, SCREW

$

$

Currently unavailable

26

Cub Cadet IH-545135-R1

SCREW, CONNECTING ROD

$

$

Currently unavailable

27

Cub Cadet IH-545126-R1

LINER, CONNECTING ROD

$

$

Currently unavailable

28

Cub Cadet IH-545122-R91

BEARING SET, NEEDLE

$

$

Not available

29

Cub Cadet IH-264038-R1

RING, RETAINING

$

$

Currently unavailable

30

Cub Cadet IH-545121-R1

PIN, WRIST

$

$

Currently unavailable

31

Cub Cadet IH-545091-R1

PISTON

$

$

Currently unavailable

32

Cub Cadet IH-545129-R91

RING SET, PISTON -2 RINGS

$

$

Not available

33

Cub Cadet IH-544662-R1

GASKET, CRANKCASE TO ARM PLATE .010

$

$

Not available

34

Cub Cadet IH-544663-R1

SCREW, CYL TO CRANKCASE

$

$

Currently unavailable

35

Cub Cadet IH-55459-C1

CYLINDER

$

$

Currently unavailable

36

Cub Cadet IH-544665-R1

SPARK PLUG & GASKET

Note: CHAMPION CJ14

$

$

Not available

37

Cub Cadet IH-544666-R1

GASKET, CYL TO CRANKCASE

$

$

Not available

38

Cub Cadet IH-55481-C1

DRIVESHAFT

$

$

Currently unavailable

39

Cub Cadet IH-367957-R91

SEAL, DRIVE OIL

$

$

Currently unavailable

40

Cub Cadet IH-55473-C1

LINE, FUEL

$

$

Currently unavailable

41

Cub Cadet IH-55474-C1

BRACKET, SHROUD

$

$

Currently unavailable

42

Cub Cadet IH-55484-C2

COVER

$

$

Currently unavailable

Cub Cadet IH-131015

WASHER, 3/16 X 7/16 K .036

$

$

Currently unavailable

Cub Cadet IH-188926

SCREW AND WASHER ASSY, 10-24 X 5/8 HEX

$

$

Currently unavailable

43

Cub Cadet IH-55483-C1

GASKET, CRANKSHAFT

$

$

Currently unavailable

44

Cub Cadet IH-545151-R1

SCREW, HH REED PLATE TO CRANKCASE

$

$

Currently unavailable

45

Cub Cadet IH-544673-R1

GASKET, CARBURETOR

$

$

Currently unavailable

46

Cub Cadet IH-55292-C1

GEAR, DRIVESHAFT

$

$

Not available

47

Cub Cadet IH-598783-R1

WASHER, THRUST BRG

$

$

Currently unavailable

48

Cub Cadet IH-544695-R1

SCREW, COVER MTG

$

$

Currently unavailable

49

Cub Cadet IH-426152-C1

WASHER

$

$

Currently unavailable

50

Cub Cadet IH-55601-C1

SCREW

$

$

Currently unavailable

51

Cub Cadet IH-55475-C1

CAP, GAS

$

$

Not available

52

CARBURETOR ASSY

Note: (SEE "CARBURETOR" ILLUSTRATION AND PARTS LIST.)

$

$

Not available

53

Cub Cadet IH-544677-R1

SCREW. HH REED PLATE TO CRANKCASE

$

$

Currently unavailable

54

Cub Cadet IH-55460-C1

CASE, AIR FILTER

$

$

Not available

Cub Cadet IH-25634-R1

SCREW, 8-32 X 9/16 C-Z PAN-HD SLT LOCK WASHER

$

$

Currently unavailable

55

Cub Cadet IH-55599-C1

GASKET

$

$

Currently unavailable

56

Cub Cadet IH-55461-C1

ELEMENT, FILTER

$

$

Not available

57

Cub Cadet IH-55462-C1

WASHER

$

$

Currently unavailable

58

Cub Cadet IH-180081

SCREW, 5/16-18 X 1-1/4 HEX-HD CAP
(Superseded to 710-0528)

$4.49

$

In Stock, Qty 20+

0

59

Cub Cadet IH-544967-R1

WASHER

$

$

Currently unavailable

60

Cub Cadet IH-544966-R1

SCREW

$

$

Currently unavailable

61

Cub Cadet IH-56295-C1

BAFFLE, BRACKET

$

$

Currently unavailable

62

Cub Cadet IH-55465-C1

SCREW

$

$

Currently unavailable

63

Cub Cadet IH-55466-C1

FASTENER

$

$

Currently unavailable

64

Cub Cadet IH-55467-C1

CAP

$

$

Currently unavailable

65

Cub Cadet IH-55525-C1

BASE

$

$

Not available

66

Cub Cadet IH-55600-C1

BULB, PRIMER

$

$

Not available

67

Cub Cadet IH-55488-C1

BRACKET & EYELET

$

$

Currently unavailable

68

Cub Cadet IH-55469-C1

SCREW

$

$

Currently unavailable

69

Cub Cadet IH-55496-C1

TUBING

$

$

Not available

70

Cub Cadet IH-544680-R1

GROMMET, COVER MTG

$

$

Currently unavailable

71

Cub Cadet IH-55607-C91

SHROUD, TANK & VALVE ASSY

$

$

Currently unavailable

72

Cub Cadet IH-55477-C1

CLIP, SPRING

$

$

Currently unavailable

73

Cub Cadet IH-55478-C1

STEM

$

$

Not available

74

Cub Cadet IH-55479-C1

WASHER

$

$

Not available

75

Cub Cadet IH-55480-C1

GASKET

$

$

Not available

76

Cub Cadet IH-544668-R1

GASKET, REED PLATE

$

$

Currently unavailable

77

Cub Cadet IH-56298-C91

CRANKCASE AND SEAL ASSY

Note: (CONSISTS OF REF NOS 76, AND 78 THRU 82)

$

$

Currently unavailable

78

Cub Cadet IH-544667-R92

SEAL, OIL

$

$

Currently unavailable

79

Cub Cadet IH-545149-R91

REED PLATE ASSY

$

$

Currently unavailable

80

Cub Cadet IH-56297-C1

SCREW

$

$

Currently unavailable

81

Cub Cadet IH-544670-R1

PLATE, BACKUP

$

$

Currently unavailable

82

Cub Cadet IH-544671-R1

REED

$

$

Currently unavailable

83

Cub Cadet IH-59748-C1

GUARD, ROPE

$

$

Currently unavailable

84

Cub Cadet IH-56639-C1

SEAL, OIL

$

$

Currently unavailable

Cub Cadet IH-55464-C91

BAFFLE ASSY, AIR

Note: (CONSISTS OF REF NOS 62 THRU 67)

$

$

Currently unavailable

Cub Cadet IH-56648-C91

ENGINE, IH 640

Note: CONSISTS OF THE FOLLOWING 3 ITEMS

$

$

Currently unavailable

ENGINE, BASIC

$

$

Not available

CARBURETOR

$

$

Not available

FLYWHEEL

$

$

Not available

Cub Cadet IH-55603-C91

BLOCK, SHORT

Note: CONSISTS OF THE FOLOWING 5 ITEMS

$

$

Currently unavailable

BLOCK ASSY

$

$

Not available

CARBURETOR GASKET

$

$

Not available

CRANKCASE TO ARMATURE PLATE GASKET

$

$

Not available

REED PLATE TO CRANKCASE GASKET

$

$

Not available

EXHAUST GASKET

$

$

Not available

$

$

Not available
