3331 - International Harvester 20" Push Walk-Behind Mower (1975 - 1976) Frame, Blade & Wheels Parts Diagram

20" Push Walk-Behind Mower

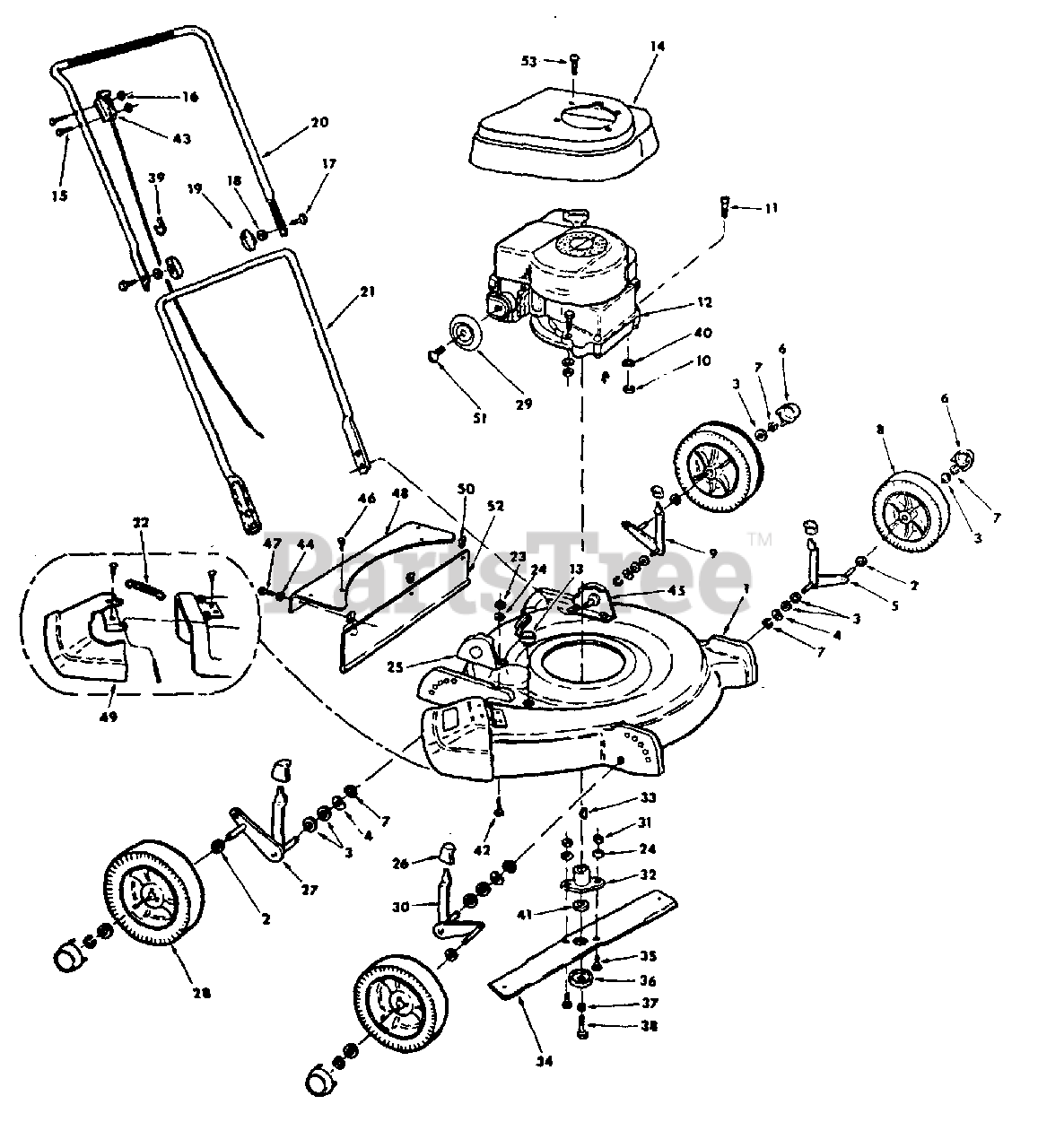

Frame, Blade & Wheels Parts Diagram

  • Title

1

Cub Cadet IH-62933-C1

HOUSING ASSY. BLADE

$

$

Currently unavailable

2

Cub Cadet IH-63040-C1

WASHER, 1/2 X 1 X .125

$

$

Currently unavailable

3

Cub Cadet IH-63038-C1

WASHER, 1/2 X 1 X .030

$

$

Not available

4

Cub Cadet IH-63041-C1

WASHER, WAVE
(Superseded to 736-0232)

$4.49

$

In Stock, Qty 17

0

5

Cub Cadet IH-62975-C1

AXLE, FRONT LH

$

$

Not available

6

Cub Cadet IH-62974-C1

CAP, HUB

$

$

Not available

7

Cub Cadet IH-370290-R1

RING, RETAINING

$

$

Not available

8

Cub Cadet IH-62971-C1

WHEEL AND TIRE ASSY FRONT
(Superseded to 734-0718)

$

$

Not available

9

Cub Cadet IH-62977-C1

AXLE, REAR LH

$

$

Currently unavailable

10

Cub Cadet IH-120376

NUT, 5/16-18 END HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet IH-180083

SCREW, 5/16-18 X 1-1/2 ZND HEX-HD CAP
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

12

ENGINE, 3 HP.

$

$

Not available

13

Cub Cadet IH-62985-C1

CAP, WASHOUT PORT

$

$

Not available

14

Cub Cadet IH-63011-C1

SHROUD, ENGINE

$

$

Currently unavailable

15

Cub Cadet IH-19517-R1

SCREW, 10-32 X 1-3/8 HEX-HD MACH

$

$

Currently unavailable

16

Cub Cadet IH-21017-R1

NUT, 10-32 HEX. LOCK
(Superseded to 712-3071A)

$3.49

$

Usually ships in 3-6 days

0

17

Cub Cadet IH-62990-C1

SCREW, 5/16-1B X 1-3/4 HEX.
(Superseded to 710-1174)

$6.99

$

In Stock, Qty 20+

0

18

Cub Cadet IH-120214

WASHER, 5/16 REG LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet IH-62992-C1

KNOB, HANDLE
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

20

Cub Cadet IH-62991-C1

HANDLE, UPPER

$

$

Not available

21

Cub Cadet IH-62986-C1

HANDLE, LOWER

$

$

Currently unavailable

22

Cub Cadet IH-62953-C1

SPRING, DEFLECTOR

$

$

Currently unavailable

23

Cub Cadet IH-9413950

NUT, 1/4-20 PHC HEX, LOCK

$

$

Currently unavailable

24

Cub Cadet IH-120380

WASHER, 1/4 REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

25

Cub Cadet IH-62936-R1

BRACKET AND PIN ASSY, RH

$

$

Currently unavailable

26

Cub Cadet IH-62979-C1

KNOB, ADJUST LEVER

$

$

Currently unavailable

27

Cub Cadet IH-62978-C1

AXLE, REAR RH

$

$

Not available

28

Cub Cadet IH-62970-C1

WHEEL AND TIRE ASSY, REAR

$

$

Not available

29

Cub Cadet IH-63010-C1

DEFLECTOR, MUFFLER

$

$

Currently unavailable

30

Cub Cadet IH-62976-C1

AXLE, FRONT RH

$

$

Not available

31

Cub Cadet IH-120375

NUT, 1/4-20 HEX.
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet IH-63003-C1

ADAPTER, BLADE

$

$

Not available

33

Cub Cadet IH-63004-C1

KEY, WOODRUFF - ENGINE CRANK

$

$

Not available

34

Cub Cadet IH-62374-C1

BLADE, 20 l N.

$

$

Not available

35

Cub Cadet IH-180020

SCREW, 1/4-20 X 3/4 HEX-HD CAP

$

$

Currently unavailable

36

Cub Cadet IH-63002-C1

WASHER, BLADE 70 CRANKSHAFT

$

$

Currently unavailable

37

Cub Cadet IH-120362

WASHER, 3/8 REG LOCK

$

$

Currently unavailable

38

Cub Cadet IH-202109-R1

SCREW, 3/8-24 X 1-1/8 HEX-HD CAP

$

$

Currently unavailable

39

Cub Cadet IH-62995-C1

CLIP, CABLE
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

40

Cub Cadet IH-120214

WASHER, .344 X .625 X 054 END
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet IH-63042-C1

SPACER, ANTI FLIP BRACKET

$

$

Not available

42

Cub Cadet IH-18404-R1

SCREW, 1/4-20 X 5/8 SQ-NK CRG

$

$

Not available

43

Cub Cadet IH-62994-C1

CONTROL ASSY, THROTTLE
(Superseded to 746-0800A)

$57.99

$

Usually ships in 3-6 days

0

44

Cub Cadet IH-22317-R1

WASHER, .219 X .75 X .054

$

$

Currently unavailable

45

Cub Cadet IH-62935-C1

BRACKET AND PIN ASSY, LH

$

$

Currently unavailable

46

Cub Cadet IH-593749-R1

SCREW, 10-24 X 1/2 HEX WASHER-HD TAP

$

$

Currently unavailable

47

Cub Cadet IH-62969-C1

SCREW, 10-12 X 7/8 SHEET METAL
(Superseded to 710-0589)

$6.49

$

Usually ships in 3-6 days

0

48

Cub Cadet IH-62968-C1

COVER, DECK

$

$

Currently unavailable

49

Cub Cadet IH-62952-C1

DEFLECTOR ASSY, MISSILE

Note: (ORDER AS AN ASSEMBLY CONSISTING OF 1 DEFLECTOR, 1 ROLLPIN, 2 HINGE AND 2 RIVET)

$

$

Currently unavailable

50

Cub Cadet IH-453026-C1

NUT, U-SHAPED SPRING

$

$

Currently unavailable

51

Cub Cadet IH-63045-C1

SCREW, 8-32 X 1-1/8 HEX-HD TAP

$

$

Currently unavailable

52

Cub Cadet IH-62967-C1

DEFLECTOR, REAR

$

$

Currently unavailable

53

Cub Cadet IH-63046-C1

SCREW, 8-15 TRUSS-HD

$

$

Currently unavailable
