3332 - International Harvester 22" Self-Propelled Walk-Behind Mower (1975 - 1976) Electric Start Attachment Parts Diagram

22" Self-Propelled Walk-Behind Mower

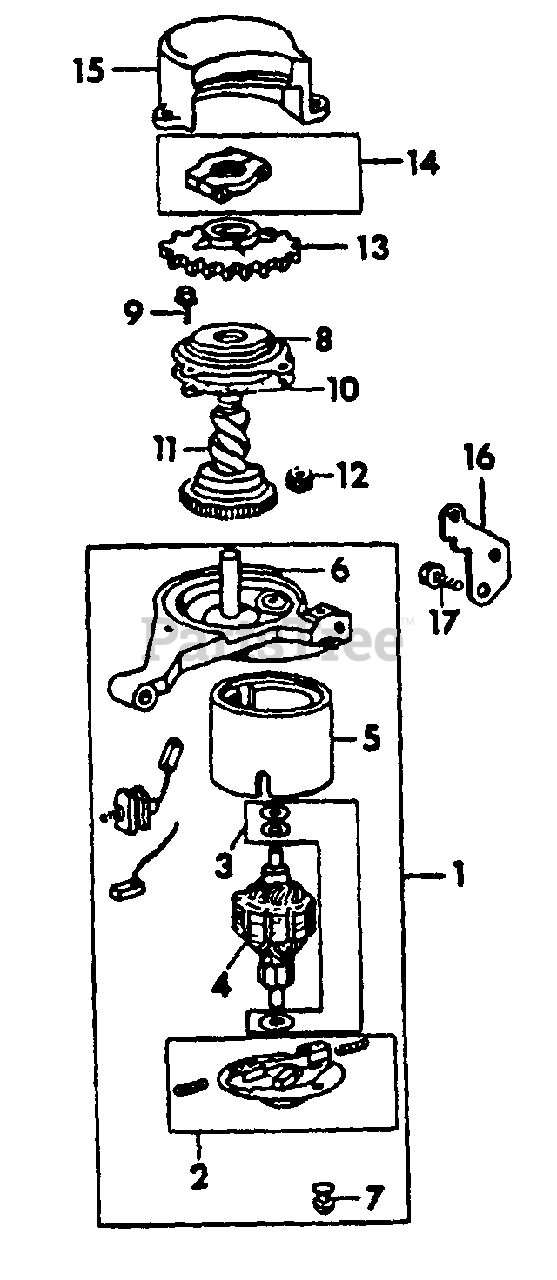

Electric Start Attachment Parts Diagram

  • Title

1

Cub Cadet IH-63624-C91

MOTOR ASSY, STARTER

$

$

Currently unavailable

2

Cub Cadet IH-63637-C1

CAP, END

$

$

Currently unavailable

3

Cub Cadet IH-63636-C1

WASHER SET, STARTER MOTOR

$

$

Currently unavailable

4

Cub Cadet IH-63625-C1

ARMATURE, STARTER

$

$

Currently unavailable

5

Cub Cadet IH-63626-C1

HOUSING, STARTER

$

$

Currently unavailable

6

Cub Cadet IH-63627-C1

BRACKET, MOTOR OUTPUT - END COVER & MOUNTING

$

$

Currently unavailable

7

Cub Cadet IH-63638-C1

SCREW, 10-32 X 3 SLT-RD-HD

$

$

Currently unavailable

Cub Cadet IH-121801

WASHER, NO. 10 LOCK

$

$

Currently unavailable

Cub Cadet IH-120361

NUT, 10-24 HEX

$

$

Not available

8

Cub Cadet IH-63629-C1

COVER, ELECTRIC STARTER - CLUTCH GEAR-

$

$

Currently unavailable

Cub Cadet IH-5450644

SCREW, 8-32 X 3/8 ZND HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-121841

WASHER, NO. 8 LOCK

$

$

Not available

9

Cub Cadet IH-63630-C1

SCREW, ELECTRIC STARTER CLUTCH GEAR COVER MOUNTING

$

$

Currently unavailable

10

Cub Cadet IH-63631-C1

GASKET, ELECTRIC STARTER CLUTCH GEAR COVER

$

$

Currently unavailable

11

Cub Cadet IH-63632-C1

CLUTCH, ELECTRIC STARTER

$

$

Currently unavailable

12

Cub Cadet IH-63633-C1

GEAR, ELECTRIC STARTER PINION - 12 T

$

$

Currently unavailable

13

Cub Cadet IH-63634-C1

GEAR, ELECTRIC STARTER SPUR - 23 T

$

$

Currently unavailable

14

Cub Cadet IH-63635-C1

CLAMP, SPUR GEAR RETAINER

$

$

Not available

15

Cub Cadet IH-63640-C1

COVER, ELECTRIC STARTER

$

$

Currently unavailable

Cub Cadet IH-435869

SCREW, 10-24 X 9/16 ZND SLT FIL-HD MACH

$

$

Currently unavailable

Cub Cadet IH-120217

WASHER, NO. 10 ZND LOCK
(Superseded to 736-0722)

$6.49

$

Usually ships in 3-6 days

0

16

Cub Cadet IH-63639-C1

SUPPORT, ELECTRIC STARTER - MOUNTING BRACKET

$

$

Currently unavailable

17

Cub Cadet IH-549374-R1

SCREW, ELECTRIC STARTER - MOUNTING BRACKET

$

$

Currently unavailable

Cub Cadet IH-19570-R1

BOLT, 1/4 X 5/8 ZND HEX-HD MACH - MOUNTING BRACKET

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 ZND REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0
