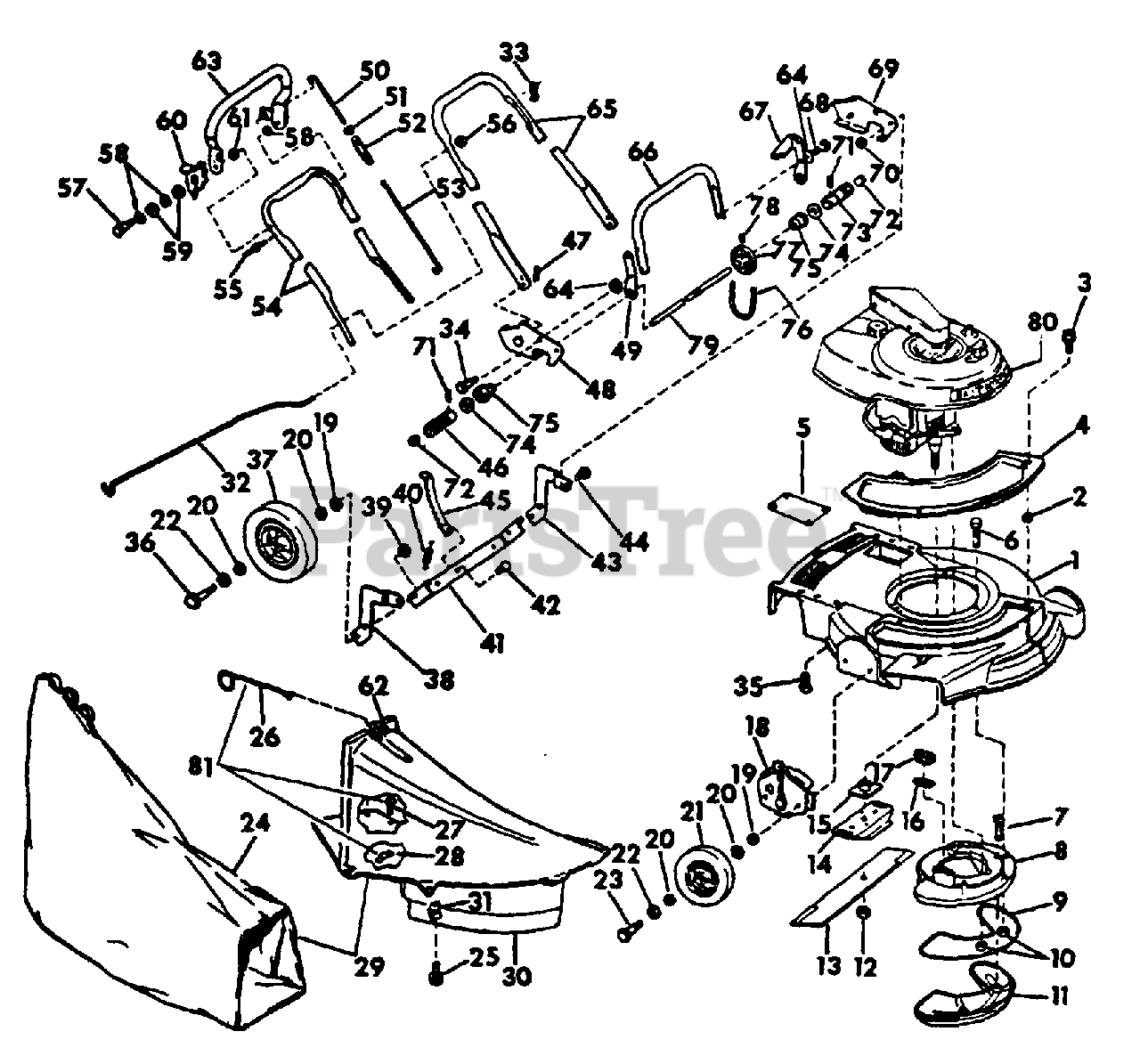

334 - International Harvester 21" Self-Propelled Walk-Behind Mower (1971) Frame, Blade And Wheels Parts Diagram

21" Self-Propelled Walk-Behind Mower

Frame, Blade And Wheels Parts Diagram

  • Title

1

Cub Cadet IH-55592-C91

HOUSING ASSY, 21 IN.

Note: (REPLACES IH-545096-R91)

$

$

Currently unavailable

2

Cub Cadet IH-24644-R1

SCREW, 5/16-18 X 1-5/8 TYPE 8 HEX-HD CAP

$

$

Currently unavailable

2

Cub Cadet IH-540590-R1

NUT, GROMMET

$

$

Currently unavailable

3

Cub Cadet IH-544346-R1

SCREW, HEX-HD

$

$

Currently unavailable

4

Cub Cadet IH-545157-R1

COVER, CHUTE OPENING

$

$

Currently unavailable

Cub Cadet IH-145067

SCREW, NO. 6 X 3/8 RD-HD METALLIC DRIVE

$

$

Currently unavailable

5

Cub Cadet IH-544347-R1

COVER, POCKET

$

$

Currently unavailable

6

Cub Cadet IH-544286-R1

SCREW, MUFFLER PLATE TO HSG

$

$

Currently unavailable

7

Cub Cadet IH-544287-R1

SCREW, MUFFLER TO MUFFLER PLATE

$

$

Currently unavailable

8

Cub Cadet IH-544288-R2

PLATE W/SCREW, MUFFLER

$

$

Currently unavailable

Cub Cadet IH-180085

BOLT, 5/16 X 1-3/4 TYPE 5

$

$

Currently unavailable

9

Cub Cadet IH-544289-R1

GASKET, MUFFLER

$

$

Currently unavailable

10

Cub Cadet IH-544290-R1

NUT, NYLOK

$

$

Currently unavailable

11

Cub Cadet IH-544291-R1

MUFFLER

$

$

Currently unavailable

Cub Cadet IH-273924

NUT, 1/4-20 CAD TORQUE HEX

$

$

Currently unavailable

12

Cub Cadet IH-544293-R1

NUT, BLADE

$

$

Currently unavailable

13

Cub Cadet IH-544348-R1

BLADE, 21 IN

$

$

Not available

Cub Cadet IH-557269-R1

WASHER, 21/32 X 2 X 16 GA

$

$

Currently unavailable

14

Cub Cadet IH-544295-R1

STIFFENER, BLADE

$

$

Currently unavailable

15

Cub Cadet IH-544297-R1

COLLAR & PLATE

$

$

Currently unavailable

16

Cub Cadet IH-544298-R1

GASKET, EXHAUST

$

$

Not available

17

Cub Cadet IH-544299-R1

SLEEVE, EXHAUST GASKET

$

$

Currently unavailable

18

Cub Cadet IH-544301-R1

ADJUSTMENT, HEIGHT

$

$

Currently unavailable

Cub Cadet IH-454869

SCREW, 5/16-18 X 3/4 ZND HEX-HD CAP

$

$

Currently unavailable

19

Cub Cadet IH-544303-R1

WASHER

$

$

Currently unavailable

20

Cub Cadet IH-544304-R1

WASHER, FELT

$

$

Currently unavailable

21

Cub Cadet IH-544305-R1

WHEEL & TIRE, 6 IN.

$

$

Not available

22

Cub Cadet IH-544306-R1

WASHER, WHEEL BOLT HD

$

$

Currently unavailable

23

Cub Cadet IH-544307-R1

BOLT, WHEEL FRT SHOULDER
(Superseded to 938-0373)

$8.49

$

In Stock, Qty 20+

0

24

Cub Cadet IH-544308-R1

BAG & FRAME

$

$

Not available

25

Cub Cadet IH-544309-R1

SCREW

$

$

Currently unavailable

26

Cub Cadet IH-548491-R1

GUARD, WHEEL

$

$

Currently unavailable

27

Cub Cadet IH-545114-R1

SCREW

$

$

Currently unavailable

28

Cub Cadet IH-545115-R1

NUT, SPEED

$

$

Currently unavailable

29

Cub Cadet IH-545088-R91

CHUTE ASSY

Note: (CONSISTS OF REF NOS 24, 30 & 32)

$

$

Currently unavailable

30

SKIRT ASSY, CHUTE

Note: (NOT SERVICED SEPARATELY, ORDER CHUTE, IH-545088-R91)

$

$

Not available

31

Cub Cadet IH-79993-R1

NUT, SPEED

$

$

Not available

Cub Cadet IH-453996

NUT, 8-32 CAD HEX-MACH SCREW
(Superseded to 712-0142)

$4.49

$

In Stock, Qty 12

0

Cub Cadet IH-25633-R1

SCREW, 8-32 X 7/16 C-Z PAN-HD SLT MACH

$

$

Currently unavailable

32

Cub Cadet IH-544312-R1

ROD, GRASS BAR

$

$

Currently unavailable

33

Cub Cadet IH-544313-R1

CLIP, ROD

$

$

Currently unavailable

34

Cub Cadet IH-544314-R1

BOLT, SHOULDER

$

$

Currently unavailable

35

Cub Cadet IH-544315-R1

SCREW, HANDLE BRACKET

$

$

Currently unavailable

36

Cub Cadet IH-544317-R1

BOLT, REAR WHEEL

$

$

Currently unavailable

37

Cub Cadet IH-55031-C1

WHEEL AND TIRE, 8 IN.

Note: (HEAVY DUTY)

$

$

Currently unavailable

38

Cub Cadet IH-544321-R1

BRACKET, WHEEL RIGHT REAR

$

$

Currently unavailable

39

Cub Cadet IH-544322-R1

NUT, REAR WHEEL BOLT

$

$

Currently unavailable

40

Cub Cadet IH-544323-R1

SPRING, HEIGHT ADJ

$

$

Currently unavailable

41

Cub Cadet IH-544324-R1

BRACKET

$

$

Currently unavailable

42

Cub Cadet IH-544327-R1

PIN

$

$

Currently unavailable

Cub Cadet IH-108629

PIN, 3/32 X 7/8 COT.
(Superseded to 914-0111)

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet IH-545132-R1

BRACKET, WHEEL REAR LH

$

$

Currently unavailable

44

Cub Cadet IH-544316-R1

BOLT, SHOULDER

$

$

Currently unavailable

45

Cub Cadet IH-544326-R1

LEVER, HEIGHT ADJ

$

$

Currently unavailable

46

Cub Cadet IH-544627-R1

ROLLER, DRIVE RIGHT

$

$

Currently unavailable

47

Cub Cadet IH-968928-R1

PIN, HAIR

$

$

Currently unavailable

48

Cub Cadet IH-544330-R1

BRACKET, HANDLE RIGHT

$

$

Currently unavailable

49

Cub Cadet IH-544331-R1

BRACKET, BRG CARRIER RH

$

$

Currently unavailable

Cub Cadet IH-180018

SCREW, 1/4-20 X 5/8 ZND HEX-HD CAP
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

50

Cub Cadet IH-544333-R1

ROD, CONTROL UPPER

$

$

Currently unavailable

51

Cub Cadet IH-544334-R1

NUT, JAM

$

$

Currently unavailable

52

Cub Cadet IH-544335-R1

TURNBUCKLE

$

$

Currently unavailable

Cub Cadet IH-144233

NUT, 10-24 ZND WING

$

$

Currently unavailable

53

Cub Cadet IH-544337-R1

ROD, CONTROL LOWER

$

$

Currently unavailable

Cub Cadet IH-180018

SCREW, 1/4-20 X 5/8 HEX-HD CAP
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

54

Cub Cadet IH-544338-R1

HANDLE, CENTER

$

$

Currently unavailable

55

Cub Cadet IH-544339-R1

PIN, LOCKOUT

$

$

Currently unavailable

56

Cub Cadet IH-378531-R1

NUT, CENTERLOCK

$

$

Currently unavailable

57

Cub Cadet IH-544314-R1

BOLT

$

$

Currently unavailable

58

Cub Cadet IH-544341-R1

WASHER

$

$

Currently unavailable

59

Cub Cadet IH-544342-R1

WASHER, WAVE

$

$

Currently unavailable

60

Cub Cadet IH-544343-R1

CLIP, LOCKOUT

$

$

Currently unavailable

61

Cub Cadet IH-544344-R1

WASHER

$

$

Currently unavailable

62

Cub Cadet IH-545112-R1

CLIP, CHUTE

$

$

Currently unavailable

63

Cub Cadet IH-545102-R1

HANDLE & GRIP

$

$

Currently unavailable

64

Cub Cadet IH-544629-R1

WASHER

$

$

Currently unavailable

65

Cub Cadet IH-544614-R1

HANDLE, LOWER

$

$

Currently unavailable

66

Cub Cadet IH-544615-R1

LINK, CONNECT

$

$

Currently unavailable

67

Cub Cadet IH-544616-R1

BRACKET, LH

$

$

Currently unavailable

68

Cub Cadet IH-544617-R1

BOLT, SHOULDER

$

$

Currently unavailable

69

Cub Cadet IH-544618-R1

BRACKET, HANDLE LH

$

$

Currently unavailable

70

Cub Cadet IH-544290-R1

NUT

$

$

Currently unavailable

71

Cub Cadet IH-544619-R1

PIN, ROLLER TO SHAFT

$

$

Currently unavailable

72

Cub Cadet IH-544620-R1

PLUG, ROLLER GREASE

$

$

Currently unavailable

73

Cub Cadet IH-544621-R1

ROLLER, DRIVE LH

$

$

Currently unavailable

74

Cub Cadet IH-544622-R1

WASHER
(Superseded to 936-0272)

$4.49

$

In Stock, Qty 20+

0

75

Cub Cadet IH-544623-R1

SLEEVE & BEARING

$

$

Currently unavailable

76

Cub Cadet IH-544624-R1

V-BELT, DRIVEN

$

$

Currently unavailable

77

Cub Cadet IH-544657-R91

PULLEY W/SET SCREW, DRIVEN

$

$

Currently unavailable

78

Cub Cadet IH-544625-R1

SCREW, SET

$

$

Currently unavailable

79

Cub Cadet IH-544626-R1

DRIVESHAFT

$

$

Currently unavailable

80

ENGINE, IH

Note: (SEE "ENGINE, GOVERNOR AND AIR CLEANER" ILLUSTRATION AND PARTS LIST)

$

$

Not available

81

Cub Cadet IH-545113-R91

GUARD ASSY, WHEEL

$

$

Currently unavailable

Cub Cadet IH-59360-C91

PART ACCESSORY, LEAF BAG

$

$

Currently unavailable

Cub Cadet IH-547992-R91

PARTS ACCESSORY, DELUXE GRASS BAG

$

$

Not available
