334 T - Husqvarna Chainsaw (SN: 20034400001 - 20040100000) CARBURETOR DETAILS Parts Diagram

Chainsaw

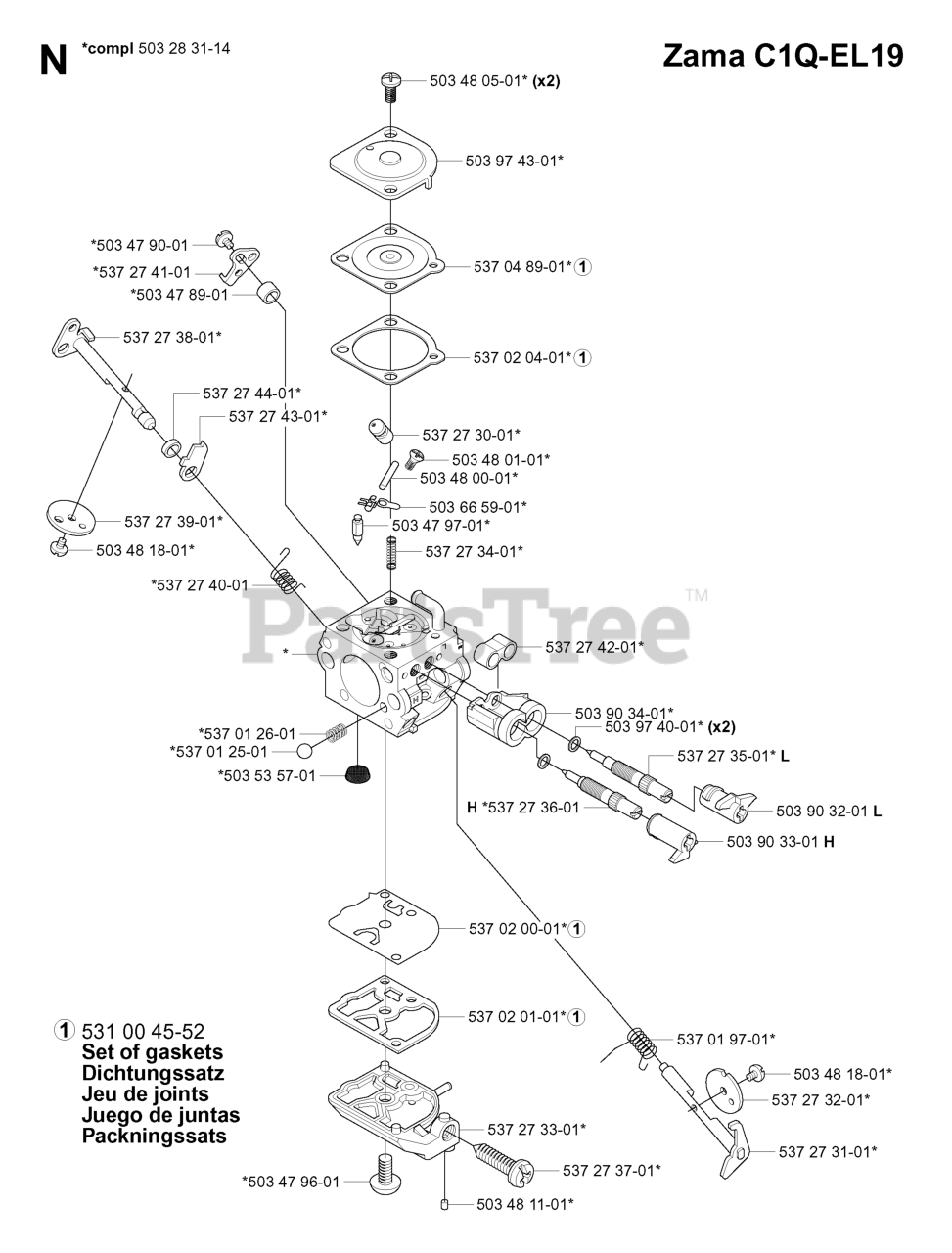

CARBURETOR DETAILS Parts Diagram

  • Title

503 48 01-01

Husqvarna 503480101

SCREW

$3.99

$

Usually ships in 3-10 days

0

537 27 37-01

Husqvarna 537273701

SCREW

$13.84

$

Usually ships in 3-10 days

0

537 02 01-01

Husqvarna 537020101

GASKET

Note: 531 00 45-52 SET OF GASKETS

$4.99

$

In Stock, Qty 15

0

537 27 35-01

Husqvarna 537273501

LOW SPEED NEEDLE

Note: L

$25.70

$

Usually ships in 3-10 days

0

503 48 00-01

Husqvarna 503480001

PIN RETAINING SCREW
(Superseded to 537020801)

$3.49

$

In Stock, only 1 left!

0

503 47 90-01

Husqvarna 503479001

SCREW

$3.99

$

In Stock, Qty 11

0

503 90 34-01

Husqvarna 503903401

SLEEVE

$8.49

$

Usually ships in 3-10 days

0

537 27 43-01

Husqvarna 537274301

ARM

$

$

Not available

537 27 40-01

Husqvarna 537274001

SPRING

$3.49

$

Usually ships in 3-10 days

0

537 01 26-01

Husqvarna 537012601

SPRING

$3.99

$

In Stock, only 1 left!

0

537 27 38-01

Husqvarna 537273801

SHAFT

$

$

Not available

537 27 36-01

Husqvarna 537273601

NEEDLE HIGH SPEED
(Superseded to 537383801)

Note: H

$26.99

$

Usually ships in 3-10 days

0

503 90 33-01

Husqvarna 503903301

LIMITER CAP

Note: H

$6.49

$

Usually ships in 3-10 days

0

537 27 41-01

Husqvarna 537274101

ARM

$5.58

$

Usually ships in 3-10 days

0

537 01 97-01

Husqvarna 537019701

SPRING THROTTLE

$3.49

$

In Stock, only 1 left!

0

537 27 39-01

Husqvarna 537273901

WASHER

$5.58

$

Usually ships in 3-10 days

0

503 53 57-01

Husqvarna 503535701

STRAINER

$4.99

$

In Stock, only 4 left!

0

503 48 11-01

Husqvarna 503481101

PLUG

$10.99

$

Usually ships in 3-10 days

0

503 47 97-01

Husqvarna 503479701

INLET NEEDLE

$8.99

$

In Stock, only 2 left!

0

537 04 89-01

Husqvarna 537048901

DIAPHRAGM

Note: 531 00 45-52 SET OF GASKETS

$9.99

$

In Stock, Qty 20+

0

503 28 31-14

Husqvarna 503283114

CARBURETOR
(Superseded to 544160901)

$87.99

$

In Stock, only 1 left!

0

503 97 40-01

Husqvarna 503974001

WASHER

$3.99

$

Usually ships in 3-10 days

0

503 97 43-01

Husqvarna 503974301

COVER

$6.49

$

Usually ships in 3-10 days

0

537 27 42-01

Husqvarna 537274201

SLEEVE

$5.76

$

Usually ships in 3-10 days

0

537 27 31-01

Husqvarna 537273101

SHAFT

$27.68

$

Usually ships in 3-10 days

0

537 27 32-01

Husqvarna 537273201

WASHER

$6.91

$

Usually ships in 3-10 days

0

537 27 44-01

Husqvarna 537274401

WASHER

$

$

Not available

503 47 89-01

Husqvarna 503478901

SPACER

$3.49

$

Usually ships in 3-10 days

0

503 48 18-01

Husqvarna 503481801

SCREW

$3.99

$

In Stock, only 1 left!

0

503 47 96-01

Husqvarna 503479601

SCREW

$3.99

$

In Stock, Qty 5

0

537 27 30-01

Husqvarna 537273001

JET

$27.68

$

Usually ships in 3-10 days

0

537 02 00-01

Husqvarna 537020001

PUMP DIAPHRAGM

Note: 531 00 45-52 SET OF GASKETS

$7.49

$

In Stock, Qty 5

0

503 48 05-01

Husqvarna 503480501

SCREW

$4.99

$

Usually ships in 3-10 days

0

503 90 32-01

Husqvarna 503903201

LIMITER CAP

Note: L

$4.99

$

Usually ships in 3-10 days

0

537 01 25-01

Husqvarna 537012501

BALL

$3.99

$

In Stock, Qty 7

0

537 27 33-01

Husqvarna 537273301

COVER

$33.45

$

Usually ships in 3-10 days

0

537 27 34-01

Husqvarna 537273401

SPRING

$

$

Not available

537 02 04-01

Husqvarna 537020401

GASKET

Note: 531 00 45-52 SET OF GASKETS

$4.99

$

In Stock, Qty 10

0

503 66 59-01

Husqvarna 503665901

LEVER

$3.99

$

In Stock, only 2 left!

0
