3340 - International Harvester 19" Push Power Mower (1977 - 1983) Carburetor, Air Cleaner And Fuel Tank Parts Diagram

19" Push Power Mower

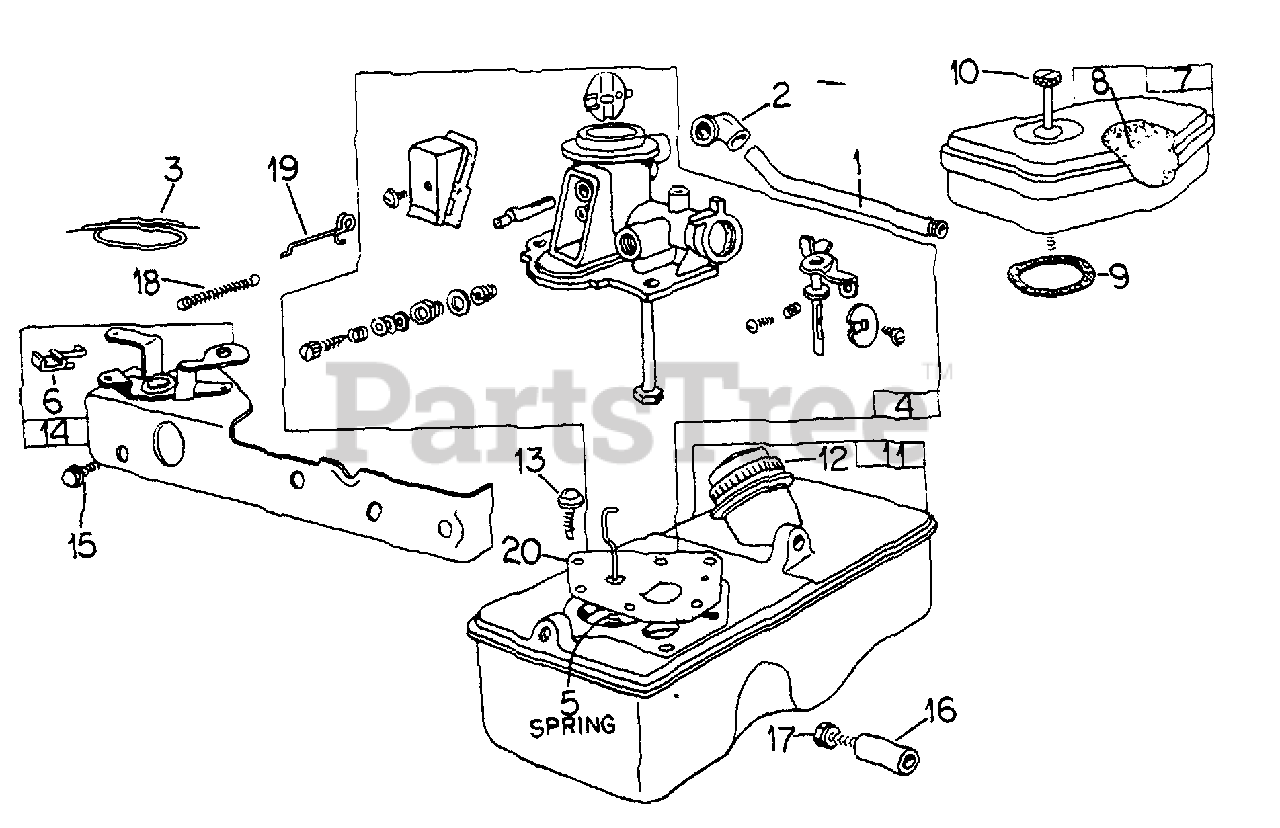

Carburetor, Air Cleaner And Fuel Tank Parts Diagram

  • Title

1

Cub Cadet IH-63606-C1

TUBE, BREATHER

$

$

Currently unavailable

2

Cub Cadet IH-549419-R1

GROMMET, BREATHER TUBE
(Superseded to BS-692189)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet IH-63623-C1

CABLE, GROUND WIRE

$

$

Not available

4

Cub Cadet IH-63643-C1

CARBURETOR ASSY

$

$

Not available

5

Cub Cadet IH-63646-C1

SPRING, DIAPHRAGM

$

$

Currently unavailable

6

Cub Cadet IH-74926-C1

SWITCH, STOP

$

$

Not available

7

Cub Cadet IH-63649-C1

CLEANER ASSY, AIR

$

$

Not available

8

Cub Cadet IH-63650-C1

ELEMENT, AIR CLEANER

$

$

Not available

9

Cub Cadet IH-63651-C1

GASKET, AIR CLEANER MOUNTING

$

$

Not available

10

Cub Cadet IH-539722-R1

SCREW, AIR CLEANER

$

$

Currently unavailable

11

Cub Cadet IH-63654-C91

TANK ASSY, FUEL

$

$

Not available

12

Cub Cadet IH-539693-R1

CAP, FUEL TANK

$

$

Not available

13

Cub Cadet IH-63656-C1

SCREW, FUEL TANK MOUNTING

$

$

Currently unavailable

14

Cub Cadet IH-63661-C1

PLATE, CARBURETOR CONTROL

$

$

Currently unavailable

15

Cub Cadet IH-63659-C1

SCREW, CONTROL PLATE TO TANK

$

$

Currently unavailable

16

Cub Cadet IH-63660-C1

BUSHING, FUEL TANK SPACER

$

$

Currently unavailable

17

Cub Cadet IH-549412-R1

SCREW, FUEL TANK TO STARTER MOTOR

$

$

Not available

18

Cub Cadet IH-74923-C1

SPRING, GOVERNOR

$

$

Not available

19

Cub Cadet IH-63665-C1

SPRING, GOVERNOR LINK

$

$

Not available

20

Cub Cadet IH-63722-C1

DIAPHRAGM, CARBURETOR

$

$

Currently unavailable

Cub Cadet IH-549491-R91

KIT, CARBURETOR NEEDLE VALVE

$

$

Not available
