3340 - International Harvester 19" Push Power Mower (1977 - 1983) Engine Assembly 3 H.P. Parts Diagram

19" Push Power Mower

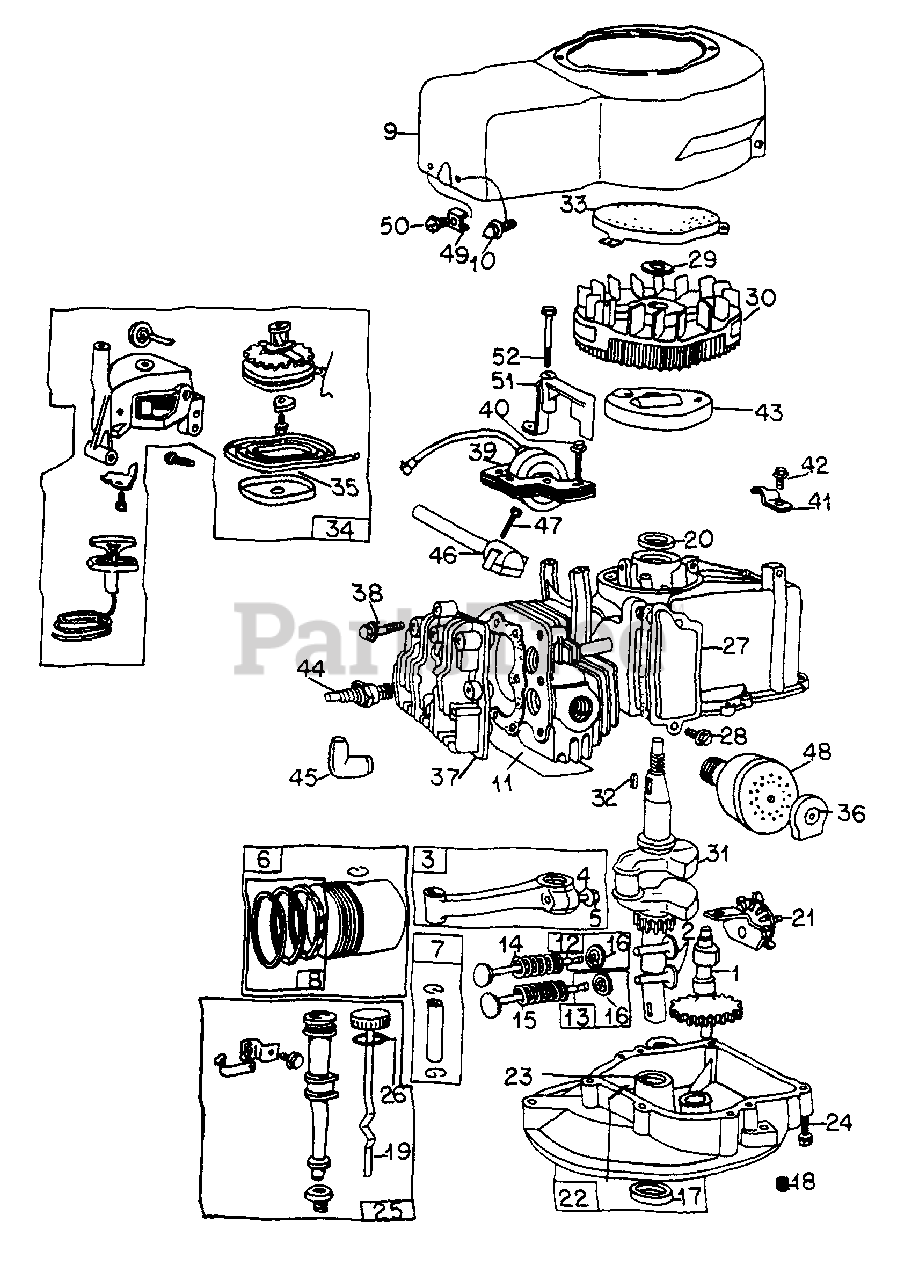

Engine Assembly 3 H.P. Parts Diagram

  • Title

1

Cub Cadet IH-60411-C1

CAMSHAFT

$

$

Currently unavailable

2

Cub Cadet IH-60412-C1

TAPPET, VALVE

$

$

Currently unavailable

3

Cub Cadet IH-63594-C91

ROD ASSY, CONNECTING STD

$

$

Not available

4

Cub Cadet IH-60369-C1

LOCK, SCREW HEAD

$

$

Currently unavailable

5

Cub Cadet IH-549362-R1

SCREW, CONNECTING ROD

$

$

Currently unavailable

6

Cub Cadet IH-549366-R91

PISTON ASSY, STANDARD

$

$

Not available

7

Cub Cadet IH-549367-R1

PIN, PISTON & RETAINER - STANDARD
(Superseded to BS-298909)

$9.99

$

In Stock, only 2 left!

0

8

Cub Cadet IH-539658-R1

RING SET, PISTON CHROME - STANDARD

$

$

Not available

8

Cub Cadet IH-539659-R1

RING SET, PISTON - STANDARD
(Superseded to BS-298982)

$53.99

$

In Stock, only 2 left!

0

9

Cub Cadet IH-63595-C1

HOUSING, BLOWER

$

$

Not available

10

Cub Cadet IH-74924-C1

SCREW, BLOWER, HOUSING

$

$

Currently unavailable

11

Cub Cadet IH-63596-C1

SHIELD, CYLINDER

$

$

Currently unavailable

Cub Cadet IH-450644

SCREW, NO. 8 X 3/8 ZNP H/HD MACH

$

$

Currently unavailable

12

Cub Cadet IH-60386-C91

VALVE, INTAKE
(Superseded to BS-296677)

$26.99

$

In Stock, only 3 left!

0

13

Cub Cadet IH-60387-C91

VALVE, EXHAUST

$

$

Not available

14

Cub Cadet IH-549865-R1

SPRING, INTAKE VALVE

$

$

Currently unavailable

15

Cub Cadet IH-535668-R1

SPRING, EXHAUST VALVE

$

$

Currently unavailable

16

Cub Cadet IH-549389-R1

RETAINER, VALVE SPRING
(Superseded to BS-692194)

$6.49

$

In Stock, only 2 left!

0

17

Cub Cadet IH-63597-C1

SEAL, OIL

$

$

Currently unavailable

18

Cub Cadet IH-74920-C1

PLUG, OIL DRAIN
(Superseded to BS-691680)

$6.49

$

In Stock, only 3 left!

0

19

Cub Cadet IH-73048-C1

GAUGE

$

$

Currently unavailable

20

Cub Cadet IH-549386-R1

SEAL, OIL
(Superseded to BS-299819S)

$5.99

$

In Stock, Qty 14

0

21

Cub Cadet IH-63600-C1

SLINGER, OIL GEAR BRACKET

$

$

Currently unavailable

22

Cub Cadet IH-73026-C1

SUMP, OIL

$

$

Currently unavailable

23

Cub Cadet IH-74922-C1

BUSHING, OIL SUMP

$

$

Currently unavailable

24

Cub Cadet IH-549406-R1

SCREW, SUMP MOUNTING

$

$

Currently unavailable

25

Cub Cadet IH-74927-C1

FILLER, OIL

$

$

Currently unavailable

26

Cub Cadet IH-25423-R1

RING, OIL FILLER CAP

$

$

Currently unavailable

27

Cub Cadet IH-63605-C1

BREATHER, VALVE CHAMBER

$

$

Not available

28

Cub Cadet IH-549415-R1

SCREW, BREATHER MOUNTING
(Superseded to BS-691666)

$4.49

$

In Stock, only 3 left!

0

29

Cub Cadet IH-549431-R1

WASHER, FLYWHEEL

$

$

Currently unavailable

Cub Cadet IH-124944

NUT, 5/8-NF JAM TYPE 5
(Superseded to 712-3056)

$5.49

$

In Stock, Qty 6

0

30

Cub Cadet IH-63615-C1

FLYWHEEL

$

$

Not available

31

Cub Cadet IH-73014-C1

CRANKSHAFT

$

$

Currently unavailable

32

Cub Cadet IH-549434-R1

KEY, FLYWHEEL
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 11

0

33

Cub Cadet IH-63618-C1

SCREEN, ROTATING

$

$

Currently unavailable

34

Cub Cadet IH-63619-C1

STARTER, VERTICAL PULL

$

$

Not available

Cub Cadet IH-180022

BOLT, 1/4

$

$

Currently unavailable

Cub Cadet IH-74930-C1

WASHER, RATCHET SEALING

$

$

Not available

35

Cub Cadet IH-63621-C1

SPRING, VERTICAL PULL STARTER

$

$

Not available

Cub Cadet IH-549431-R1

WASHER, SPRING

$

$

Currently unavailable

36

Cub Cadet IH-63670-C1

DEFLECTOR MUFFLER

$

$

Currently unavailable

Cub Cadet IH-25747-R1

SCREW, NO. 8 X 3/4 H/WHDS TAP

$

$

Currently unavailable

37

Cub Cadet IH-63622-C1

HEAD, CYLINDER

$

$

Currently unavailable

38

Cub Cadet IH-60402-C1

SCREW, CYLINDER HEAD
(Superseded to BS-691640)

$3.99

$

Usually ships in 2-12 days

0

39

Cub Cadet IH-60401-C1

ARMATURE, MAGNETO

$

$

Not available

40

Cub Cadet IH-549461-R1

SCREW, ARMATURE MOUNTING

$

$

Currently unavailable

41

Cub Cadet IH-549466-R1

CLAMP, CONDENSER

$

$

Currently unavailable

42

Cub Cadet IH-74925-C1

SCREW, CONDENSER

$

$

Currently unavailable

43

Cub Cadet IH-539705-R1

COVER, BREAKER POINT

$

$

Currently unavailable

Cub Cadet IH-26000-R1

SCREW, NO. 8 X 3/8 H/WHD TAP.

$

$

Not available

44

IH-CJ8

PLUG, SPARK (CHAMPION)

$

$

Not available

45

Cub Cadet IH-267627-R1

ELBOW, SPARK PLUG INSULATOR
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 9

0

46

Cub Cadet IH-63647-C1

TUBE, FUEL, INTAKE

$

$

Currently unavailable

47

Cub Cadet IH-63648-C1

SCREW, INTAKE ELBOW MOUNTING

$

$

Currently unavailable

48

Cub Cadet IH-73049-C1

MUFFLER ASSY

$

$

Not available

49

Cub Cadet IH-539726-R1

CLAMP, CASING

$

$

Not available

50

Cub Cadet IH-539731-R1

SCREW W/LOCKWASHER, HEX-HD

$

$

Not available

51

Cub Cadet IH-63666-C1

BLADE, GOVERNOR

$

$

Not available

52

Cub Cadet IH-63667-C1

SCREW

$

$

Currently unavailable

Cub Cadet IH-549471-R91

KIT, BREAKER POINT AND CONDENSER
(Superseded to BS-294628)

Note: (CONSISTS OF THE FOLLOWING 7 ITEMS)

$

$

Not available

BREAKER ARM ASSY

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

CONDENSER

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

FLYWHEEL KEY

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

PLUNGER

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

SPRING (BREAKER ARM)

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

SPRING

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

SPRING DEPRESSOR

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

Cub Cadet IH-63591-C91

GASKET SET, ENGINE
(Superseded to BS-794209)

Note: (CONSISTS OF THE FOLLOWING 7 ITEMS)

$

$

Not available

GASKET, CRANKCASE

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

GASKET, CRANKCASE .005 THICK

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

GASKET, CRANKCASE .009 THICK

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

GASKET, CYLINDER HEAD

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

GASKET, FUEL TANK MOUNTING

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

GASKET, INTAKE ELBOW

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

GASKET, VALVE COVER

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available
