3341 - International Harvester 21" Self-Propelled Walk-Behind Mower (1977 - 1983) Mower Drive And Connection Parts Diagram

21" Self-Propelled Walk-Behind Mower

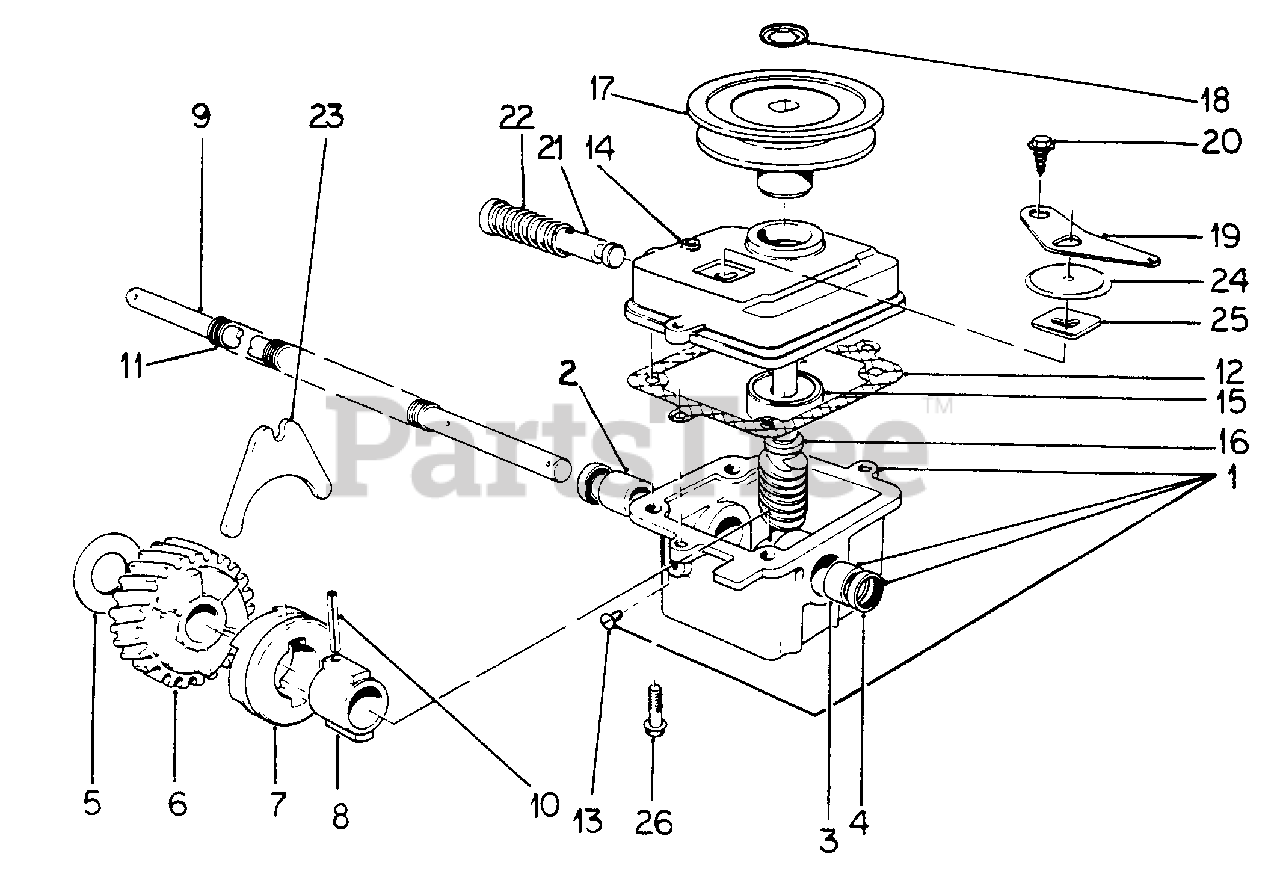

Mower Drive And Connection Parts Diagram

  • Title

1

Cub Cadet IH-77734-C91

CASE ASSY, GEAR

Note: (REPLACES IH-73609-C1)

$

$

Not available

2

Cub Cadet IH-73610-C1

BUSHING

$

$

Currently unavailable

3

Cub Cadet IH-73611-C1

BUSHING

$

$

Currently unavailable

4

Cub Cadet IH-73612-C1

SEAL, OIL

$

$

Currently unavailable

5

Cub Cadet IH-73613-C1

WASHER, THRUST

$

$

Currently unavailable

6

GEAR, HELICAL

Note: (NOT SERVICED SEPARATELY, ORDER SHAFT AND GEAR KIT, IH-77552-C1)

$

$

Not available

7

Cub Cadet IH-73615-C1

CLUTCH, JAW

$

$

Not available

8

Cub Cadet IH-73616-C1

BUSHING

$

$

Currently unavailable

9

Cub Cadet IH-80132-C1

ROD, DRIVE

Note: (REPLACES IH-73617-C1)

$

$

Currently unavailable

10

Cub Cadet IH-19371-R1

PIN, 1/8 X 3/4 HVY CLD-SPR

$

$

Not available

11

Cub Cadet IH-73618-C1

HOSE, DRIVE SHAFT

$

$

Currently unavailable

12

Cub Cadet IH-73619-C1

GASKET

$

$

Not available

13

SCREW, 1/4-20 X 3/8 SHW NYLON

Note: (ORDER CASE ASSY, IH-77734-C91)

$

$

Not available

14

Cub Cadet IH-73621-C1

COVER, GEAR CASE

$

$

Currently unavailable

15

Cub Cadet IH-73622-C51

BEARING, BALL

$

$

Currently unavailable

16

SHAFT, WORM

Note: (NOT SERVICED SEPARATELY, ORDER SHAFT AND GEAR KIT, IH-77552-C1)

$

$

Not available

17

Cub Cadet IH-73625-C1

PULLEY, DRIVEN

$

$

Not available

18

Cub Cadet IH-73626-C1

RING, RETAINING

$

$

Currently unavailable

19

Cub Cadet IH-73627-C1

ARM, SHIFTER

$

$

Currently unavailable

20

Cub Cadet IH-593749-R1

SCREW, NO.10 X 1/2 H/WHD TAP

$

$

Currently unavailable

21

Cub Cadet IH-73628-C1

PIN, SHIFTER

$

$

Currently unavailable

22

Cub Cadet IH-73629-C1

SPRING

$

$

Currently unavailable

23

Cub Cadet IH-73630-C1

FORK, SHIFTER

$

$

Currently unavailable

24

Cub Cadet IH-73631-C1

CAP, DUST

$

$

Currently unavailable

25

Cub Cadet IH-73632-C1

PLATE, LATCH

$

$

Currently unavailable

Cub Cadet IH-364577-R1

PIN, 5/32 X 3/4 HVY PLN CLD SPR
(Superseded to 715-0119)

$

$

Not available

26

Cub Cadet IH-73555-C1

SCREW

$

$

Currently unavailable

Cub Cadet IH-19756-R1

PIN, 3/16 X 1/2 HVY PLN CLD SPR

$

$

Not available

Cub Cadet IH-77552-C1

KIT, SHAFT AND GEAR

$

$

Not available
