3341 - International Harvester 21" Self-Propelled Walk-Behind Mower (1977 - 1983) Mower Handle And Controls Parts Diagram

21" Self-Propelled Walk-Behind Mower

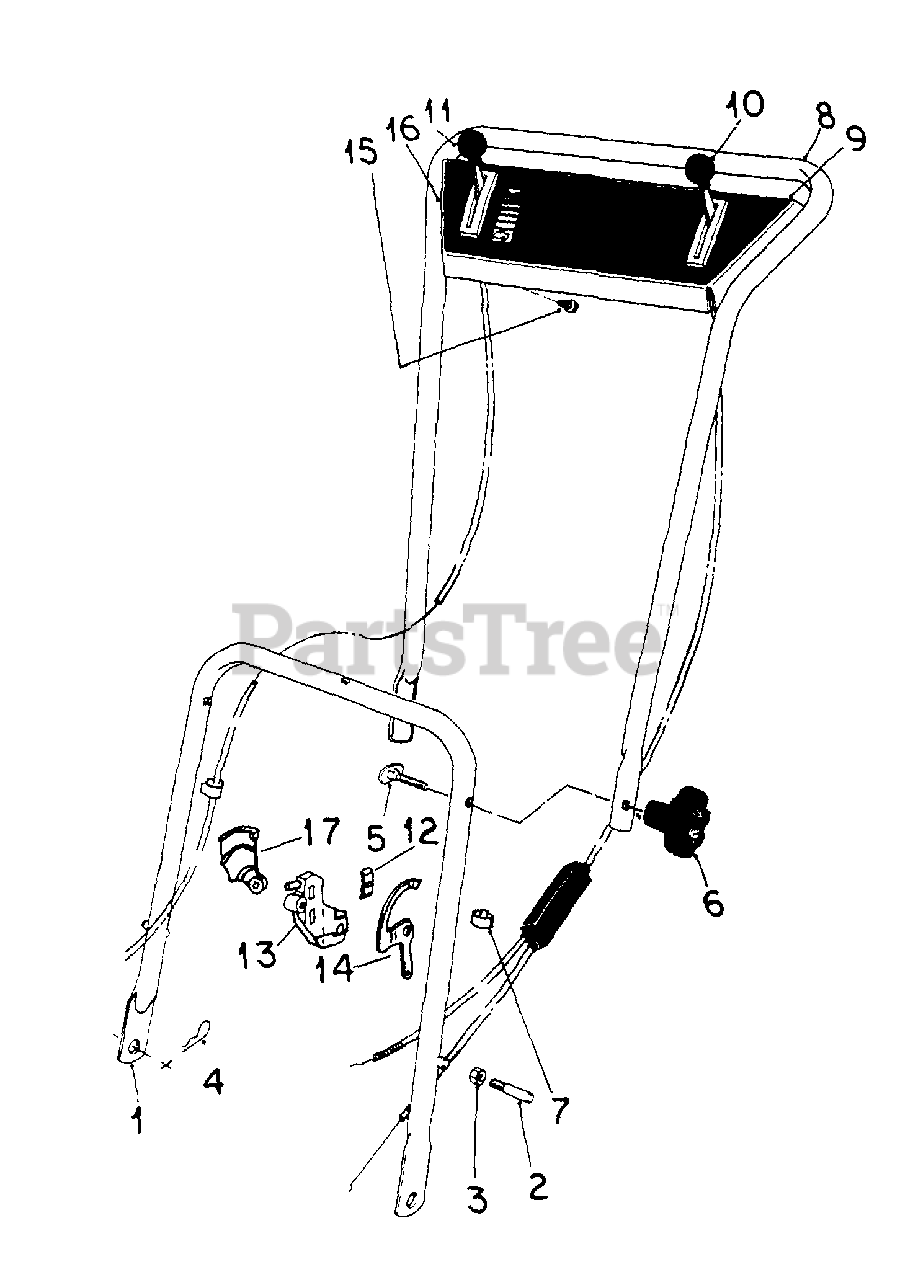

Mower Handle And Controls Parts Diagram

  • Title

1

Cub Cadet IH-73574-C1

HANDLE, LOWER

$

$

Currently unavailable

2

Cub Cadet IH-73588-C1

PIN, HANDLE

$

$

Currently unavailable

3

Cub Cadet IH-21222-R1

NUT, 1/4-20 LOCK
(Superseded to 712-0324)

$3.49

$

In Stock, Qty 20+

0

4

Cub Cadet IH-73575-C1

PIN, HAIR PIN COT

$

$

Currently unavailable

5

Cub Cadet IH-73577-C1

BOLT, HANDLE

$

$

Currently unavailable

6

Cub Cadet IH-73578-C1

KNOB, HANDLE

$

$

Not available

7

Cub Cadet IH-73581-C1

CLIP

$

$

Currently unavailable

8

Cub Cadet IH-73582-C1

HANDLE, UPPER

$

$

Currently unavailable

9

Cub Cadet IH-73583-C1

PLATE, CONTROL

$

$

Currently unavailable

10

Cub Cadet IH-73585-C2

CONTROL, TRACTION

$

$

Not available

Cub Cadet IH-73586-C1

SCREW, CONTROL

$

$

Currently unavailable

11

Cub Cadet IH-73587-C1

CONTROL, THROTTLE

$

$

Currently unavailable

12

Cub Cadet IH-73590-C1

CLAMP, CASING

$

$

Currently unavailable

Cub Cadet IH-440502

SCREW, NO. 10 X 5/8 ZNP H/HD MACH

$

$

Currently unavailable

13

Cub Cadet IH-73591-C1

BLOCK, CABLE

$

$

Currently unavailable

Cub Cadet IH-73592-C1

SCREW, BLOCK

$

$

Currently unavailable

Cub Cadet IH-120391

WASHER .219 X .500 X .036
(Superseded to 736-0931)

$4.49

$

In Stock, only 1 left!

0

14

Cub Cadet IH-73593-C1

CAM, INTERLOCK

$

$

Currently unavailable

Cub Cadet IH-73594-C1

WASHER, CAM

$

$

Currently unavailable

Cub Cadet IH-73595-C1

SCREW, CAN

$

$

Currently unavailable

15

Cub Cadet IH-71985-C1

SCREW

$

$

Not available

16

Cub Cadet IH-73504-C1

PRODUCT GRAPHIC

Note: (CAUTION AND STARTING INSTRUCTIONS)

$

$

Currently unavailable

17

Cub Cadet IH-73596-C1

LEVER, INTERLOCK

$

$

Currently unavailable
