3342 - International Harvester 21" Self-Propelled Walk-Behind Mower (1977 - 1983) Mower Handle And Controls Parts Diagram

21" Self-Propelled Walk-Behind Mower

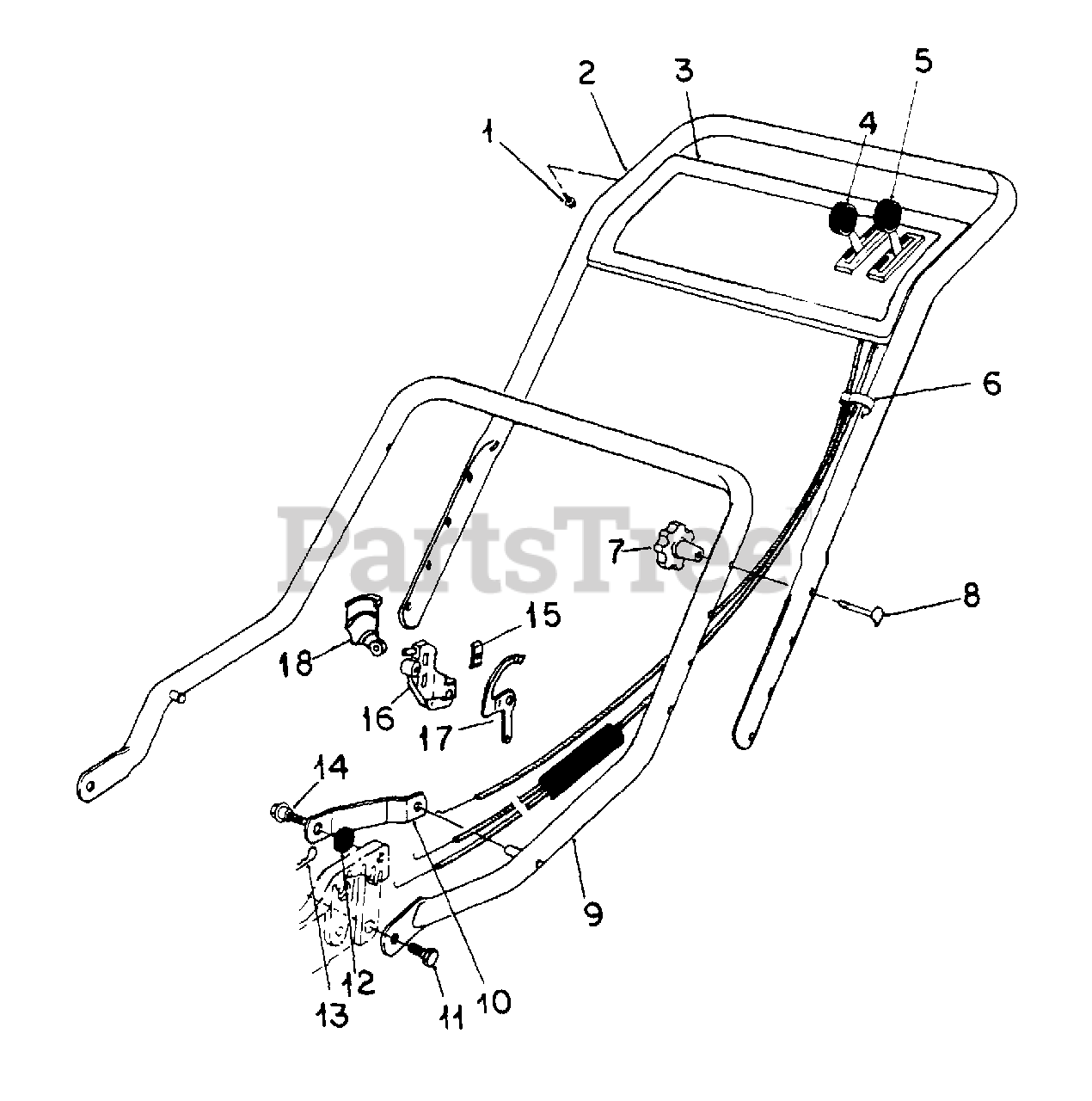

Mower Handle And Controls Parts Diagram

  • Title

1

Cub Cadet IH-71985-C1

SCREW

$

$

Not available

2

Cub Cadet IH-73598-C1

HANDLE, UPPER

$

$

Currently unavailable

3

Cub Cadet IH-73601-C1

PLATE, CONTROL

$

$

Currently unavailable

4

Cub Cadet IH-73602-C1

CONTROL, THROTTLE

$

$

Currently unavailable

5

Cub Cadet IH-73603-C2

CONTROL, TRACTION

$

$

Not available

Cub Cadet IH-73607-C1

CLIP, TRACTION CONTROL

$

$

Currently unavailable

Cub Cadet IH-73586-C1

SCREW, TRACTION CONTROL CLIP

$

$

Currently unavailable

6

Cub Cadet IH-73604-C1

CLIP, CONDUIT

$

$

Currently unavailable

7

Cub Cadet IH-73578-C1

KNOB, HANDLE RELEASE

$

$

Not available

8

Cub Cadet IH-73599-C1

BOLT, HANDLE

$

$

Currently unavailable

9

Cub Cadet IH-73597-C1

HANDLE, LOWER

$

$

Currently unavailable

10

Cub Cadet IH-73562-C1

LATCH, HANDLE

$

$

Currently unavailable

11

Cub Cadet IH-180079

BOLT, 5/16-18 X 1 ZND HEX-HD
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 17

0

12

Cub Cadet IH-73533-C1

SPACER, LATCH

$

$

Currently unavailable

13

Cub Cadet IH-73575-C1

PIN, HAIR PIN COT

$

$

Currently unavailable

14

Cub Cadet IH-79723-C1

BOLT, SHOULDER

Note: (SERIAL NO. 13851 THRU 15451 ONLY)

$

$

Currently unavailable

14

Cub Cadet IH-73534-C1

SCREW, SHOULDER

Note: (SERIAL. MO. 13850 & BELOW. SERIAL NO. 15452 & ABOVE)

$

$

Not available

15

Cub Cadet IH-73590-C1

CLAMP, CASING

$

$

Currently unavailable

Cub Cadet IH-440502

SCREW, NO. 10 X 5/8 ZNP H/HD MACH

$

$

Currently unavailable

16

Cub Cadet IH-73608-C1

BLOCK, CLAMP AND PIVOT

$

$

Currently unavailable

Cub Cadet IH-73592-C1

SCREW, BLOCK

$

$

Currently unavailable

Cub Cadet IH-120391

WASHER, .219 X .500 X .036
(Superseded to 736-0931)

$4.49

$

In Stock, only 1 left!

0

17

Cub Cadet IH-73593-C1

CAM, INTERLOCK

$

$

Currently unavailable

Cub Cadet IH-13594-C1

BUSHING, INTERLOCK CAM

$

$

Currently unavailable

Cub Cadet IH-73595-C1

SCREW, CAM

$

$

Currently unavailable

18

Cub Cadet IH-73596-C1

LEVER, INTERLOCK

$

$

Currently unavailable
