335 XPT - Husqvarna Chainsaw (1997-01) Tank Assembly Parts Diagram

Chainsaw

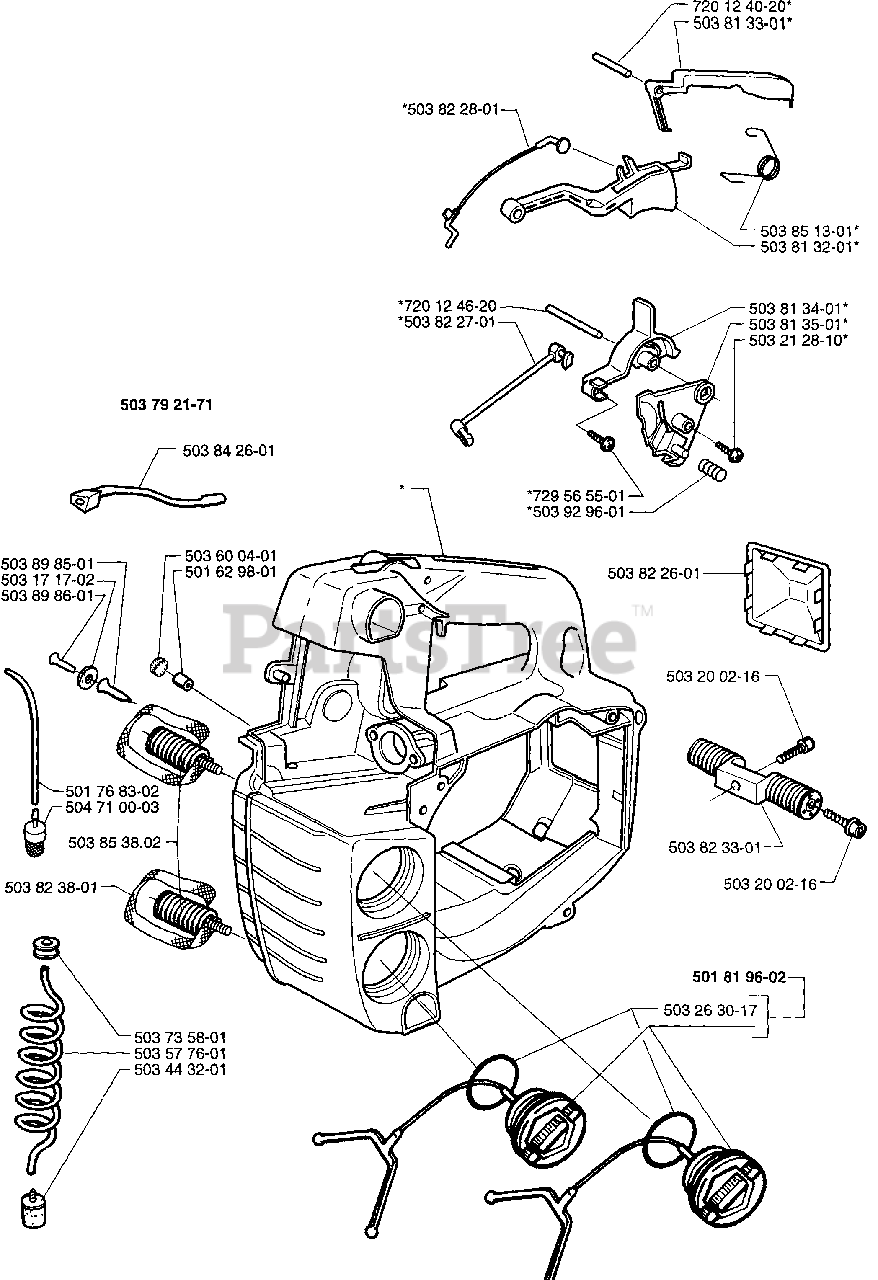

Tank Assembly Parts Diagram

  • Title

720124020

Husqvarna 720124020

PIN 3X25
(Superseded to 720182520)

$2.49

$

In Stock, Qty 20+

0

503813301

Husqvarna 503813301

THROTTLE LOCK

$9.49

$

In Stock, only 3 left!

0

503812801

Husqvarna 503812801

$

$

Currently unavailable

503851301

Husqvarna 503851301

SPRING

$6.99

$

Usually ships in 3-10 days

0

503813201

Husqvarna 503813201

TRIGGER

$10.99

$

In Stock, only 2 left!

0

503813401

Husqvarna 503813401

SWITCH, START/STOP & CHOKE

$9.49

$

Usually ships in 3-10 days

0

503813501

Husqvarna 503813501

PLATE

$6.99

$

Usually ships in 3-10 days

0

503212810

Husqvarna 503212810

SCREW

$3.99

$

In Stock, Qty 20+

0

720124620

Husqvarna 720124620

PIN

$4.99

$

Usually ships in 3-10 days

0

503822701

Husqvarna 503822701

%CHOKE ROD
(Superseded to 503822702)

$6.99

$

In Stock, only 1 left!

0

729565501

Husqvarna 729565501

SCREW

$4.99

$

Usually ships in 3-10 days

0

503929601

Husqvarna 503929601

SPRING

$5.99

$

Usually ships in 3-10 days

0

503822601

Husqvarna 503822601

SPARK PLUG COVER
(Superseded to 537409801)

$

$

Not available

503792171

Husqvarna 503792171

TANK
(Superseded to 544110904)

$159.99

$

Usually ships in 3-10 days

0

503842601

Husqvarna 503842601

HOSE

$

$

Not available

503600401

Husqvarna 503600401

FILTER PLUG

$7.49

$

In Stock, Qty 11

0

501629801

Husqvarna 501629801

VALVE PLUG

$7.49

$

In Stock, Qty 18

0

503898501

Husqvarna 503898501

VALVE

$

$

Not available

503171702

Husqvarna 503171702

FILTER

$

$

Not available

503898601

Husqvarna 503898601

PIN

$

$

Not available

501768302

Husqvarna 501768302

FUEL HOSE
(Superseded to 581756103)

$7.99

$

In Stock, Qty 6

0

504710003

Husqvarna 504710003

OIL PLUMMET

$13.99

$

In Stock, Qty 9

0

503853802

Husqvarna 503853802

INSULATOR

$28.99

$

Usually ships in 3-10 days

0

503823801

Husqvarna 503823801

STRAP

$

$

Not available

503735801

Husqvarna 503735801

FUEL TANK BUSHING
(Superseded to 580457501)

$6.99

$

In Stock, Qty 20+

0

503577601

Husqvarna 503577601

FUEL HOSE
(Superseded to 544325001)

$9.99

$

Usually ships in 3-10 days

0

503443201

Husqvarna 503443201

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

503263017

Husqvarna 503263017

O-RING

$8.99

$

In Stock, Qty 20+

0

501819602

Husqvarna 501819602

FUEL/OIL CAP
(Superseded to 537215207)

$10.99

$

In Stock, Qty 20+

0

503200216

Husqvarna 503200216

SCREW

$4.99

$

In Stock, Qty 20+

0

503823301

Husqvarna 503823301

INSULATOR

$34.99

$

Usually ships in 3-10 days

0

503200216

Husqvarna 503200216

SCREW

$4.99

$

In Stock, Qty 20+

0
