33512 - Toro 20" Turf Seeder (SN: 400000000 - 409199999) Engine Assembly Parts Diagram

20" Turf Seeder

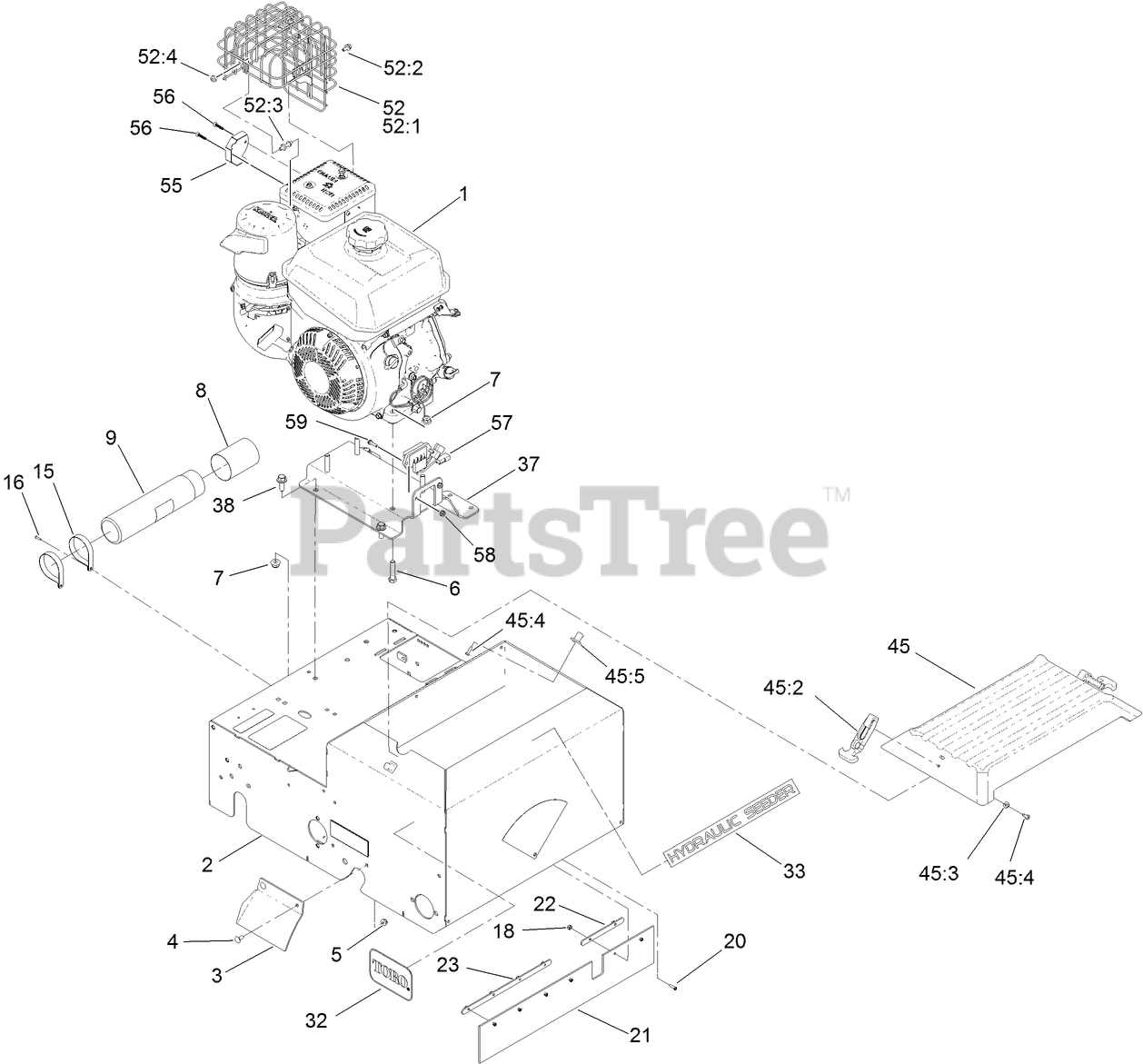

Engine Assembly Parts Diagram

  • Title

1

ENGINE-KOHLER, CH395

Note: Not serviced separately

$

$

Not available

2

Toro 121-6196

FRAME ASM

$1106.99

$

Usually ships in 3-6 days

0

3

Toro 121-1896-01

GUARD-RH

$30.99

$

Usually ships in 3-6 days

0

4

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

5

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 104-7048

CAP-HOUSING

$6.49

$

In Stock, only 1 left!

0

9

Toro 104-7050

TUBE-MANUAL

$9.99

$

Usually ships in 3-6 days

0

15

Toro 2412-120

CLAMP-R

$8.49

$

Usually ships in 3-6 days

0

16

Toro 3269-17

RIVET-POP

$1.99

$

Usually ships in 3-6 days

0

18

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

20

Toro 3290-392

SCREW-SHH

$1.49

$

Usually ships in 3-6 days

0

21

Toro 121-1990

GUARD-DUST

$37.99

$

Usually ships in 3-6 days

0

22

Toro 121-1991

PLATE-RETAINER

$16.99

$

Usually ships in 3-6 days

0

23

Toro 121-1992

PLATE-RETAINER

$21.99

$

Usually ships in 3-6 days

0

32

Toro 67-1300

DECAL

$34.99

$

In Stock, only 1 left!

0

33

Toro 121-6177

DECAL

$20.99

$

Usually ships in 3-6 days

0

37

Toro 135-0690-01

PLATE-ENGINE

$79.99

$

Usually ships in 3-6 days

0

38

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 9

0

45

Toro 126-1665

SEEDER COVER KIT

$172.99

$

Usually ships in 3-6 days

0

45:2

Toro 103-4080

LATCH-RUBBER

$37.99

$

In Stock, Qty 8

0

45:3

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

45:4

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

45:5

Toro 103-4081

LATCH-KEEPER

$15.99

$

Usually ships in 3-6 days

0

52

Toro 135-3505

GUARD-MUFFLER

$117.99

$

Usually ships in 3-6 days

0

52:1

Toro 135-3932

CAGE

$

$

Currently unavailable

52:2

Toro 135-3933

BOLT

$

$

Currently unavailable

52:3

Toro 135-3927

STUD

$

$

Currently unavailable

52:4

Toro 135-3929

NUT

$

$

Currently unavailable

55

Toro 135-3975

DEFLECTOR-EXHAUST

$47.99

$

Usually ships in 3-6 days

0

56

Toro 363-8572

SCREW-PPH

$

$

Currently unavailable

57

Toro 135-3924

REGULATOR

$112.99

$

Usually ships in 3-6 days

0

58

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 11

0

59

Toro 32105-13

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0
