33513 - Toro 18" Dethatcher (SN: 313000001 - 313999999) (2013) HANDLE ASSEMBLY Parts Diagram

18" Dethatcher

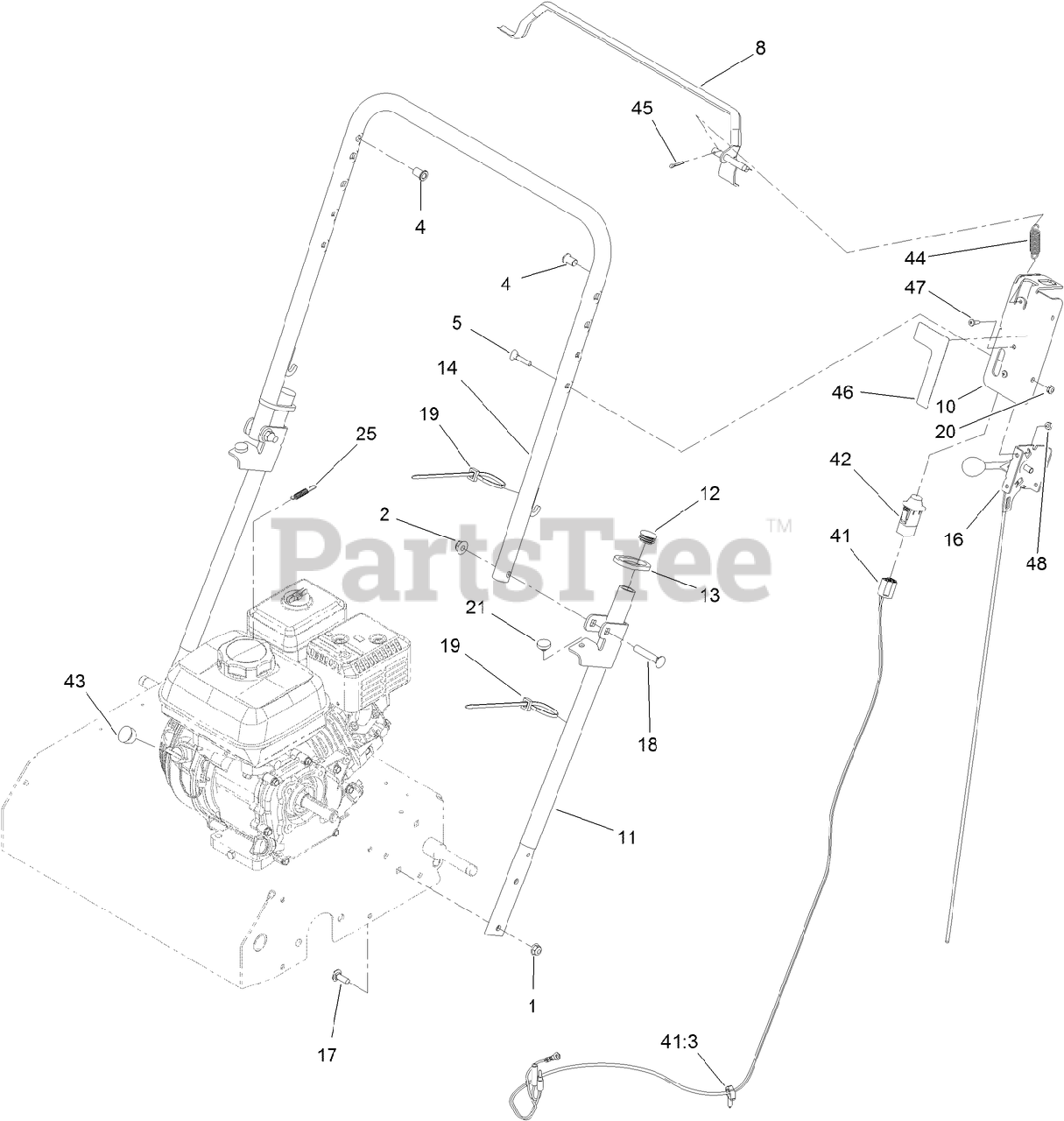

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

2

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 109-2713

BUSHING

$6.99

$

In Stock, Qty 7

0

5

Toro 109-8144

BOLT-HANDLE
(Superseded to 117-7737)

$2.49

$

In Stock, Qty 10

0

8

Toro 127-4026

BAIL

$58.99

$

Usually ships in 3-6 days

0

10

Toro 127-4027-03

BRACKET-THROTTLE

$24.99

$

Usually ships in 3-6 days

0

11

Toro 125-3621-03

HANDLE

$86.99

$

Usually ships in 3-6 days

0

12

Toro 121-4870

PLUG

$3.49

$

Usually ships in 3-6 days

0

13

Toro 121-6202

RING-HANDLE LOCK

$8.49

$

Usually ships in 3-6 days

0

14

Toro 125-3800-03

HANDLE-UPPER

$149.99

$

Usually ships in 3-6 days

0

16

Toro 127-4048

CABLE-THROTTLE

$78.99

$

Usually ships in 3-6 days

0

17

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

18

Toro 3231-6

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

19

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

20

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 1-513658

BUMPER

$6.99

$

In Stock, Qty 20+

0

25

Toro 125-3934

SPRING-EXTENSION

$

$

Not available

41

Toro 127-4042

HARNESS-WIRE

$80.99

$

Usually ships in 3-6 days

0

41:3

Toro 32180-037

CLIP-HARNESS

$1.99

$

In Stock, Qty 6

0

42

Toro 100-1268

SWITCH-PLUNGER

$63.99

$

Usually ships in 3-6 days

0

43

Toro 120-1887

PLUG-ENGINE

$18.99

$

Usually ships in 3-6 days

0

44

Toro 121-4409

SPRING-EXTENSION

$9.99

$

In Stock, only 3 left!

0

45

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

46

Toro 127-4061

DECAL-THROTTLE

$

$

Currently unavailable

47

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

48

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
