33515 - Toro 21" Walk-Behind Aerator (SN: 312000001 - 312999999) (2012) DRIVE ASSEMBLY Parts Diagram

21" Walk-Behind Aerator

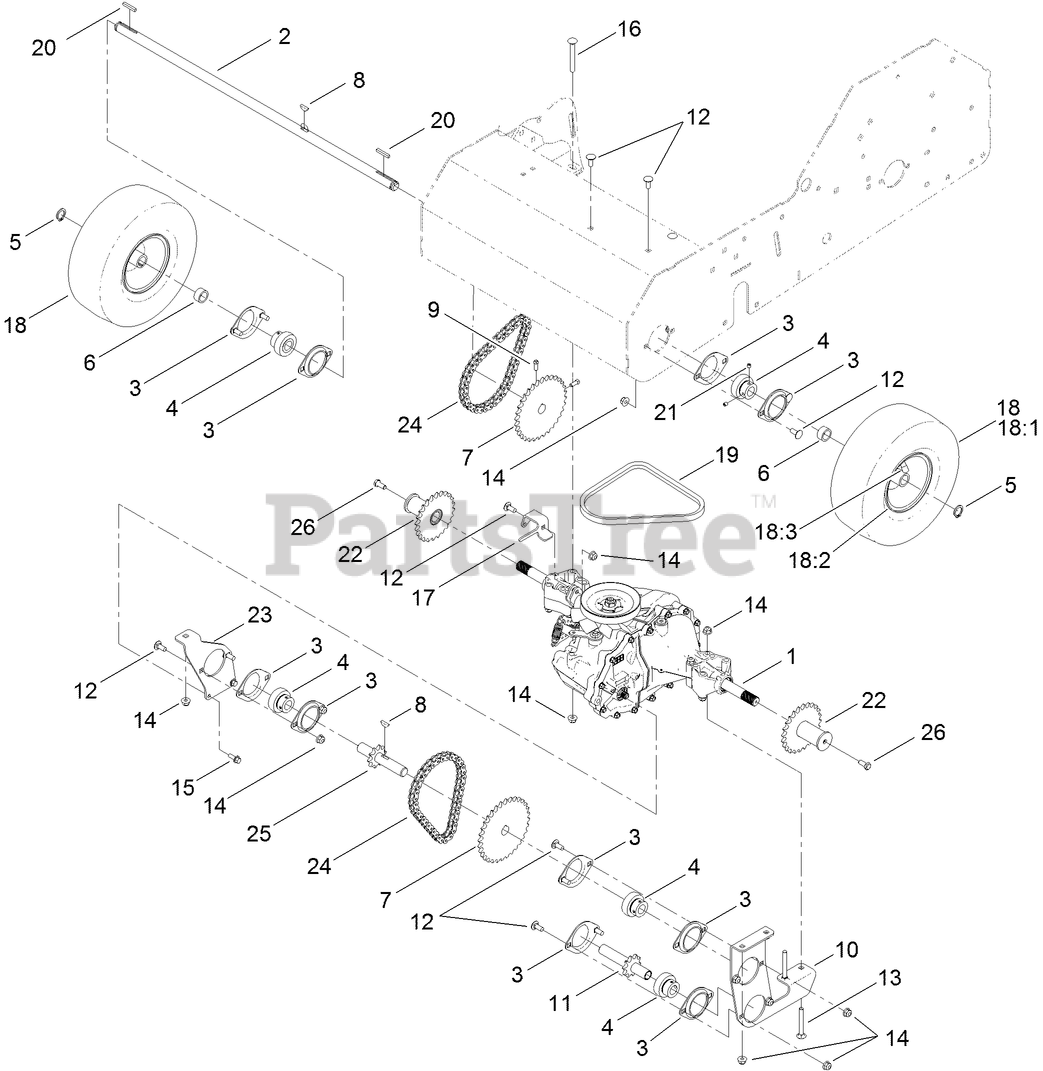

DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 121-4899

TRANSAXLE ASM

$1478.99

$

Usually ships in 3-6 days

0

2

Toro 121-4927

SHAFT-WHEEL

$107.99

$

Usually ships in 3-6 days

0

3

Toro 105-9714

FLANGE-BEARING

$11.99

$

In Stock, only 3 left!

0

4

Toro 120-9350

BEARING-LOCK, COLLAR

$51.99

$

In Stock, only 4 left!

0

5

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

6

Toro 121-4931

SPACER-WHEEL

$7.99

$

In Stock, only 2 left!

0

7

Toro 121-4934

SPROCKET

$151.99

$

Usually ships in 3-6 days

0

8

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 16

0

9

Toro 3241-5

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

10

Toro 121-4936-03

PLATE-BEARING

$47.99

$

Usually ships in 3-6 days

0

11

Toro 121-4937

SHAFT-OUTPUT

$210.99

$

Usually ships in 3-6 days

0

12

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

13

Toro 3230-8

SCREW-CARR

$5.49

$

In Stock, only 1 left!

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

16

Toro 3230-9

SCREW-CARR

$3.99

$

In Stock, Qty 13

0

17

Toro 121-6067

ANGLE-CONTROL

$20.99

$

Usually ships in 3-6 days

0

18

Toro 120-3550

WHEEL ASM

$130.99

$

In Stock, only 1 left!

0

18:1

Toro 121-6081

TIRE

$88.99

$

Usually ships in 3-6 days

0

18:2

Toro 121-6082

WHEEL-RIM

$59.99

$

Usually ships in 3-6 days

0

18:3

Toro 5108

VALVE

$7.99

$

In Stock, Qty 6

0

19

Toro 121-1999

BELT-DRIVE

$15.99

$

In Stock, only 3 left!

0

20

Toro 92-0049

KEY-SQUARE

$3.49

$

In Stock, Qty 12

0

21

Toro 3245-35

SCREW-SET, HSH

$0.99

$

In Stock, Qty 8

0

22

Toro 121-1976

SPROCKET ASM

$

$

Not available

23

Toro 121-4932-03

BRACKET-SUPPORT, SHAFT

$24.99

$

Usually ships in 3-6 days

0

24

Toro 121-6105

CHAIN-DRIVE WHEEL

$20.99

$

Usually ships in 3-6 days

0

25

Toro 121-6108

SHAFT-JACK

$142.99

$

Usually ships in 3-6 days

0

26

Toro 3235-6

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0
