33516 - Toro 18" Walk-Behind Aerator (SN: 314000001 - 314999999) (2014) WHEEL ASSEMBLY Parts Diagram

18" Walk-Behind Aerator

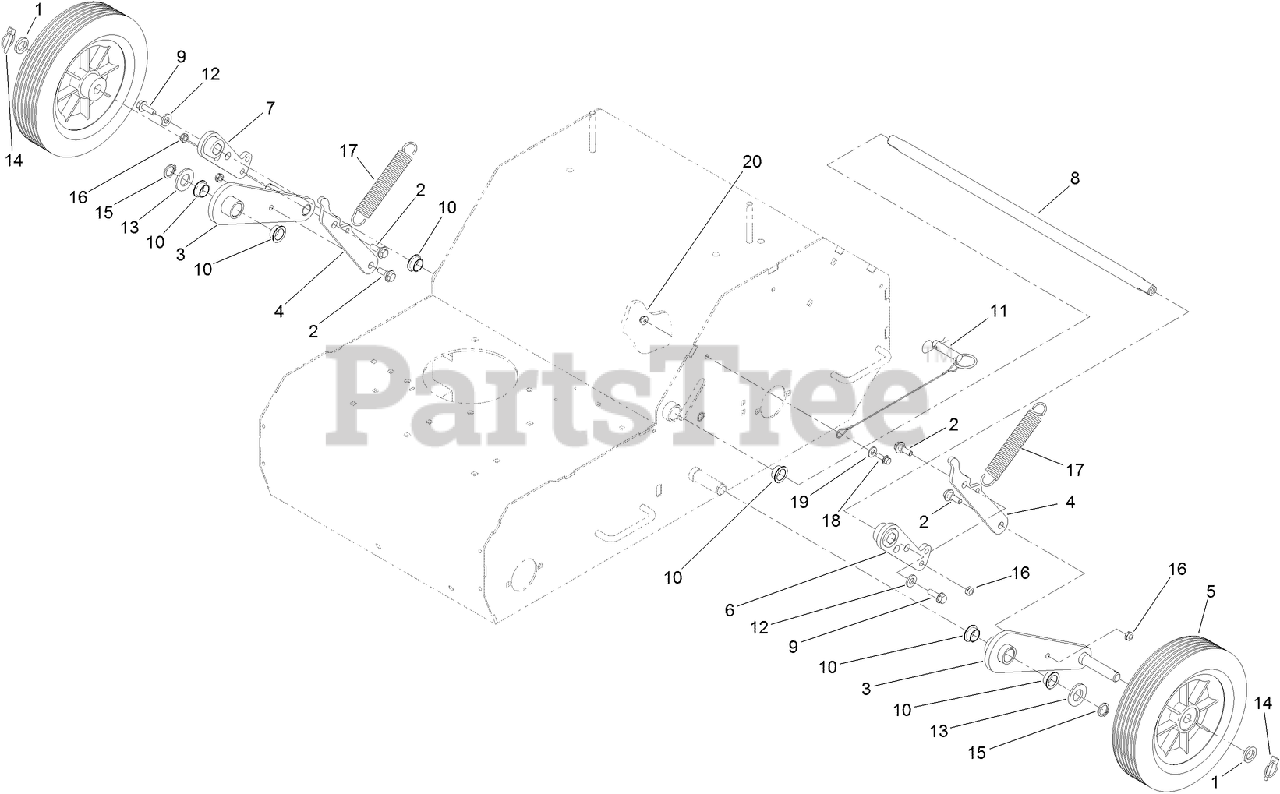

WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 63-9710

SPACER-BEARING

$14.99

$

In Stock, only 1 left!

0

2

Toro 116-2670

SCREW-SHOULDER

$8.49

$

In Stock, only 2 left!

0

3

Toro 121-4886-03

ARM-WHEEL

$82.99

$

Usually ships in 3-6 days

0

4

Toro 130-2148-03

LINK-CONNECTING, PINNED

$13.99

$

Usually ships in 3-6 days

0

5

Toro 121-4897

WHEEL-TRANSPORT 10"

$82.99

$

Usually ships in 3-6 days

0

6

Toro 130-2157-03

HUB-LIFT, LH

$103.99

$

Usually ships in 3-6 days

0

7

Toro 130-2158-03

HUB-LIFT, RH

$115.99

$

Usually ships in 3-6 days

0

8

Toro 125-3856

SHAFT-PIVOT

$254.99

$

Usually ships in 3-6 days

0

9

Toro 3234-17

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

10

Toro 108519

BUSHING-BRONZE

$17.99

$

In Stock, Qty 5

0

11

Toro 106-9951

Hitch Pin ASM

$54.99

$

In Stock, only 1 left!

0

12

Toro 100-4852

WASHER-HARDENED

$5.99

$

Usually ships in 3-6 days

0

13

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

14

Toro 3290-495

PIN-KLIK

$7.49

$

Usually ships in 3-6 days

0

15

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

16

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

17

Toro 125-3786

SPRING-EXTENSION

$35.99

$

Usually ships in 3-6 days

0

18

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

20

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0
