33518 - Toro 30" Stand-On Aerator (SN: 312000001 - 312999999) (2012) CASTER WHEEL AND FORK ASSEMBLY Parts Diagram

30" Stand-On Aerator

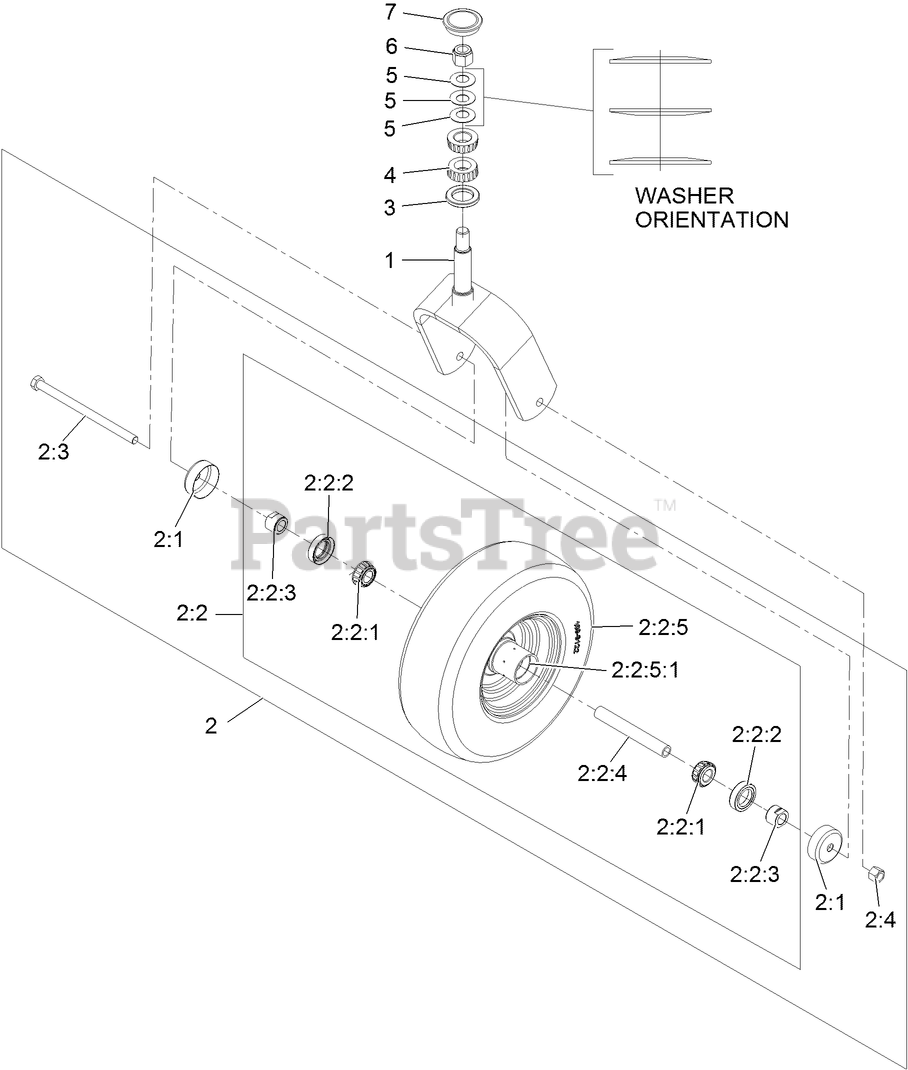

CASTER WHEEL AND FORK ASSEMBLY Parts Diagram

  • Title

1

Toro 116-1963-01

CASTER
(Superseded to 116-8886)

$182.99

$

Usually ships in 3-6 days

0

2

Toro 109-9126

WHEEL & TIRE ASM

$337.99

$

In Stock, Qty 10

0

2:1

Toro 103-2768

GUARD-SEAL

$3.49

$

In Stock, Qty 20+

0

2:2

WHEEL AND TIRE ASM

Note: Not serviced separately

$

$

Not available

2:2:1

Toro 1-633585

Bearing-Cone Tapered Roller

$21.99

$

In Stock, Qty 20+

0

2:2:2

Toro 103-0063

Seal-Double Lip

$8.99

$

In Stock, Qty 11

0

2:2:3

Toro 103-3051

Spacer-Nut

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$9.49

$

In Stock, Qty 20+

0

2:2:4

Toro 103-3155

AXLE-CASTER
(Superseded to 126-5360)

$15.99

$

In Stock, only 4 left!

0

2:2:5

WHEEL AND TIRE ASM

Note: Not serviced separately

$

$

Not available

2:2:5:1

Toro 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 20+

0

2:3

Toro 325-42

SCREW-HH

$14.99

$

In Stock, only 3 left!

0

2:4

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 1-543511

Seal-Grease

$12.99

$

In Stock, Qty 20+

0

4

Toro 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

5

Toro 1-633508

Washer-Spring Disc

$3.49

$

In Stock, Qty 20+

0

6

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

7

Toro 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0
