3352 B89 - Electrolux/AYP Tiller (1998) ENGINE Parts Diagram

Tiller

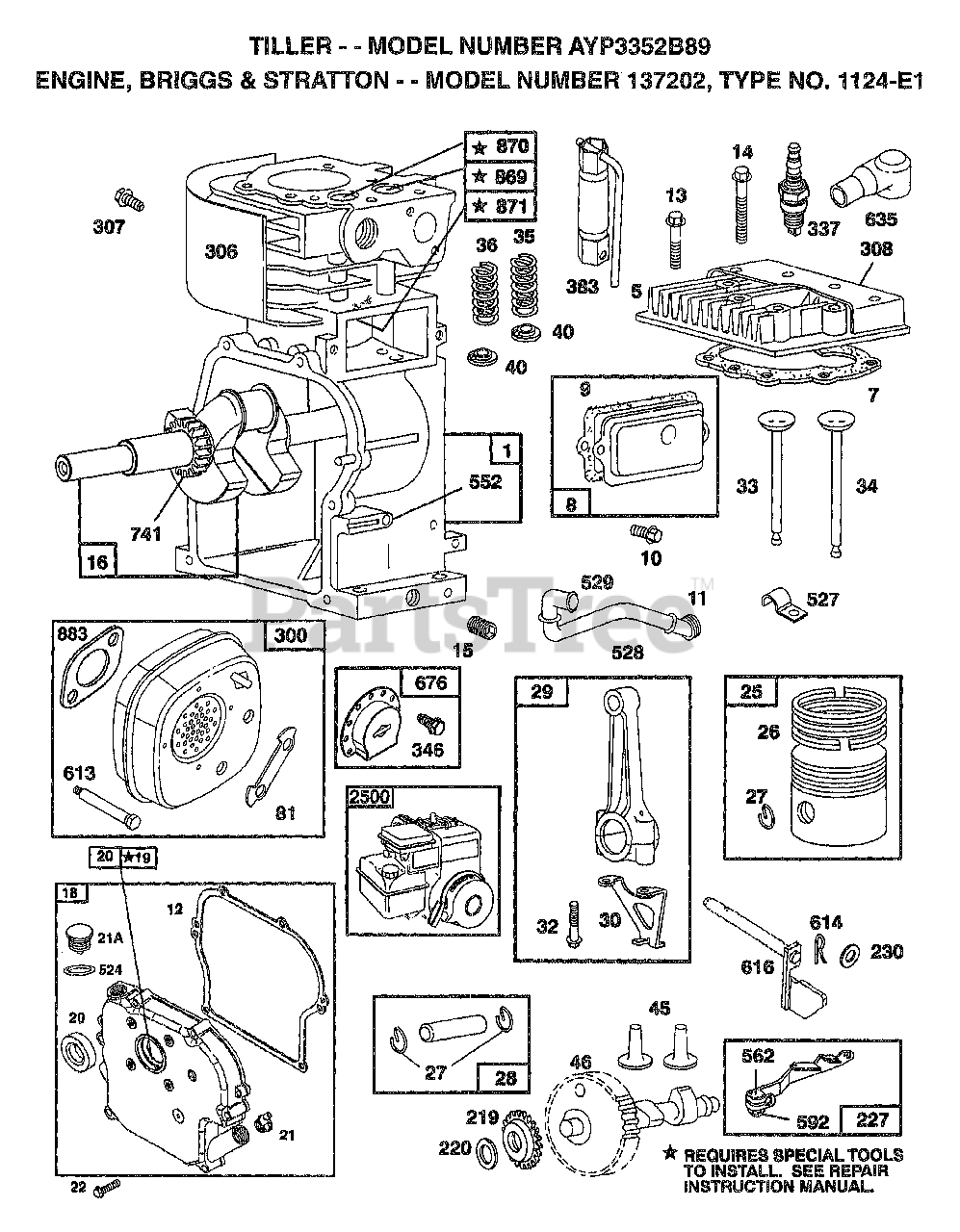

ENGINE Parts Diagram

  • Title

1

Electrolux/AYP 497144

CYLINDER ASSEMBLY

$

$

Not available

2

Electrolux/AYP 399268

BUSHING, CYLINDER

$

$

Not available

3

Electrolux/AYP 299819

SEAL, OIL

$

$

Not available

5

Electrolux/AYP 214040

HEAD, CYLINDER

$

$

Not available

7

Electrolux/AYP 272157

GASKET, CYLINDER HEAD

$

$

Not available

8

Electrolux/AYP 495774

BREATHER ASSEMBLY

$

$

Not available

9

Electrolux/AYP 27549

GASKET, VALVE COVER

$

$

Not available

10

Electrolux/AYP 94621

SCREW, STEMS

$

$

Not available

11

Electrolux/AYP 66578

GROMMET, BREATHER TUBE

$

$

Not available

12

Electrolux/AYP 270080

GASKET CRANKCASE STANDARD .015"

$

$

Not available

12

Electrolux/AYP 270125

GASKET, CRANKCASE .005" THICK

$

$

Not available

12

Electrolux/AYP 270126

GASKET, CRANKCASE .009" THICK

$

$

Not available

13

Electrolux/AYP 94221

SCREW, CYLINDER HEAD 2-3/32"

$

$

Not available

14

Electrolux/AYP 94679

SCREW, CYLINDER HEAD 2-15/32"

$

$

Not available

15

Electrolux/AYP 94916

PLUG, PIPE, HEX SOCKET

$

$

Not available

16

Electrolux/AYP 492088

CRANKSHAFT

$

$

Not available

16

Electrolux/AYP 94388

TIMING GEAR KEY
(Superseded to 690979)

$3.49

$

In Stock, only 3 left!

0

18

Electrolux/AYP 494044

COVER ASSEMBLY, CRANKCASE

$

$

Not available

19

Electrolux/AYP 495660

BUSHING, CRANKCASE COVER

$

$

Not available

20

Electrolux/AYP 294606

SEAL, OIL

$

$

Not available

21

Electrolux/AYP 281658

PLUG-OIL FILLER

$

$

Not available

22

Electrolux/AYP 94980

SCREW, COVER MOUNTING

$

$

Not available

23

Electrolux/AYP 393673

FLYWHEEL-MAGNETO

$

$

Not available

24

Electrolux/AYP 222698

KEY, FLYWHEEL

$

$

Not available

25

Electrolux/AYP 298904

PISTON ASSEMBLY, STANDARD

$

$

Not available

25

Electrolux/AYP 298905

PISTON ASSEMBLY .010" OVERSIZE

$

$

Not available

25

Electrolux/AYP 298906

PISTON ASSEMBLY .020" OVERSIZE

$

$

Not available

25

Electrolux/AYP 298907

PISTON ASSEMBLY .030" OVERSIZE

$

$

Not available

26

Electrolux/AYP 298982

RING SET, PISTON, STANDARD

$

$

Not available

26

Electrolux/AYP 299742

RING SET, PISTON, CHROME, STANDARD

$

$

Not available

26

Electrolux/AYP 298983

RING SET, PISTON .010" OVERSIZE

$

$

Not available

26

Electrolux/AYP 298984

RING SET, PISTON .020" OVERSIZE

$

$

Not available

26

Electrolux/AYP 298985

RING SET, PISTON .030" OVERSIZE

$

$

Not available

27

Electrolux/AYP 26026

LOCK, PISTON PIN

$

$

Not available

28

Electrolux/AYP 298909

PIN ASSY, PISTON, STD

$

$

Not available

28

Electrolux/AYP 298908

PIN ASSEMBLY, PISTON .005" OVERSIZE

$

$

Not available

29

Electrolux/AYP 299430

ROD ASSEMBLY, CONNECTING

$

$

Not available

29

Electrolux/AYP 390459

ROD ASSEMBLY, CONNECTING

$

$

Not available

30

Electrolux/AYP 221890

DIPPER, CONNECTING ROD

$

$

Not available

32

Electrolux/AYP 94745

SCREW, CONNECTING ROD

$

$

Not available

33

Electrolux/AYP 211119

VALVE, EXHAUST

$

$

Not available

34

Electrolux/AYP 261044

VALVE, INTAKE

$

$

Not available

35

Electrolux/AYP 260552

SPRING, INTAKE VALVE

$

$

Not available

36

Electrolux/AYP 26478

SPRING, EXHAUST VALVE

$

$

Not available

37

Electrolux/AYP 222443

GUARD, FLYWHEEL

$

$

Not available

40

Electrolux/AYP 93312

RETAINER, VALVE SPRING

$

$

Not available

45

Electrolux/AYP 260642

TAPPET, VALVE

$

$

Not available

46

Electrolux/AYP 214726

GEAR-CAM

$

$

Not available

51

Electrolux/AYP 273113

GASKET, CARBURETOR MOUNTING

$

$

Not available

55

Electrolux/AYP 497442

HOUSING, REWIND STARTER

$

$

Not available

56

Electrolux/AYP 498144

PULLEY, REWIND STARTER

$

$

Not available

58

Electrolux/AYP 66894

ROPE, REWIND STARTER

$

$

Not available

60

Electrolux/AYP 691915

HANDLE, REWIND STARTER

$

$

Not available

65

Electrolux/AYP 94904

SCREW, SEMS

$

$

Not available

65A

Electrolux/AYP 94669

SCREW, HEX

$

$

Not available

73

Electrolux/AYP 225176

SCREEN, ROTATING

$

$

Not available

81

Electrolux/AYP 222263

LOCK, SCREW

$

$

Not available

90

Electrolux/AYP 498298

CARBURETOR ASSEMBLY

$

$

Not available

95

Electrolux/AYP 93499

SCREW

$

$

Not available

96

Electrolux/AYP 223793

THROTTLE, CARBURETOR

$

$

Not available

97

Electrolux/AYP 497600

SHAFT & LEVER, THROTTLE

$

$

Not available

108

Electrolux/AYP 497230

VALVE & SHAFT GROUP, CHOKE

$

$

Not available

111

Electrolux/AYP 262715

SPRING, CHOKE

$

$

Not available

118

Electrolux/AYP 231533

VALVE, NEEDLE

$

$

Not available

121

Electrolux/AYP 495606

CARBURETOR OVERHAUL KIT

$

$

Not available

124

Electrolux/AYP 94913

SCREW, TORX HEX

$

$

Not available

127

Electrolux/AYP 220352

PLUG, WELCH

$

$

Not available

127A

Electrolux/AYP 223789

PLUG, WELCH

$

$

Not available

147

Electrolux/AYP 231955

JET-PILOT

$

$

Not available

152

Electrolux/AYP 260575

SPRING, THROTTLE ADJUSTMENT

$

$

Not available

154

Electrolux/AYP 93527

SCREW, MACHINE, ROUND HEAD

$

$

Not available

162

Electrolux/AYP 490589

SCREW AND COLLAR

$

$

Not available

163

Electrolux/AYP 271935

GASKET, AIR CLEANER MOUNTING

$

$

Not available

180

Electrolux/AYP 495405

TANK ASSEMBLY, FUEL

$

$

Not available

181

Electrolux/AYP 494559

CAP, FUEL TANK

$

$

Not available

190

Electrolux/AYP 94924

SCREW, TORX

$

$

Not available

190A

Electrolux/AYP 94919

SCREW, TORX

$

$

Not available

191

Electrolux/AYP 272489

GASKET, FUEL TANK TO CARBURETOR

$

$

Not available

200

Electrolux/AYP 223886

GUIDE, AIR

$

$

Not available

202

Electrolux/AYP 262280

LINK, GOVERNOR

$

$

Not available

203

Electrolux/AYP 280720

BELL CRANK

$

$

Not available

205

Electrolux/AYP 231520

SCREW, SHOULDER

$

$

Not available

208

Electrolux/AYP 262279

ROD, SPEED CONTROL

$

$

Not available

209

Electrolux/AYP 262948

SPRING-GOVERNOR

$

$

Not available

212

Electrolux/AYP 262270

LINK, THROTTLE

$

$

Not available

216

Electrolux/AYP 262359

LINK, CHOKE

$

$

Not available

219

Electrolux/AYP 494845

GEAR, GOVERNOR

$

$

Not available

220

Electrolux/AYP 221551

WASHER THRUST

$

$

Not available

222

Electrolux/AYP 490649

PANEL, CONTROL

$

$

Not available

227

Electrolux/AYP 490374

LEVER ASSEMBLY, GOVERNOR

$

$

Not available

230

Electrolux/AYP 94927

WASHER, GOVERNOR LEVER

$

$

Not available

256

Electrolux/AYP 223813

CRANK, BELL

$

$

Not available

257

Electrolux/AYP 93543

SCREW, SEMS, HEX HEAD

$

$

Not available

300

Electrolux/AYP 493936

MUFFLER-EXHAUST

$

$

Not available

304

Electrolux/AYP 495759

HOUSING, BLOWER

$

$

Not available

305

Electrolux/AYP 690960

SCREW, HEX

$

$

Not available

306

Electrolux/AYP 224820

SHIELD, CYLINDER

$

$

Not available

307

Electrolux/AYP 94680

SCREW, CYLINDER SHIELD

$

$

Not available

308

Electrolux/AYP 224738

COVER, CYLINDER HEAD

$

$

Not available

332

Electrolux/AYP 94877

NUT, FLYWHEEL

$

$

Not available

333

Electrolux/AYP 397358

ARMATURE GROUP

$

$

Not available

334

Electrolux/AYP 93414

SCREW, ARMATURE MOUNTING

$

$

Not available

337

Electrolux/AYP 802592

PLUG, SPARK

$

$

Not available

346

Electrolux/AYP 94896

SCREW, SEMS

$

$

Not available

356

Electrolux/AYP 398808

WIRE, GROUND

$

$

Not available

358

Electrolux/AYP 495603

GASKET SET

$

$

Not available

363

Electrolux/AYP 19069

PULLEY, FLYWHEEL

$

$

Not available

373

Electrolux/AYP 94908

NUT, HEX

$

$

Not available

383

Electrolux/AYP 89838

WRENCH SPARK PLUG

$

$

Not available

392

Electrolux/AYP 262328

SPRING, FUEL PUMP DIAPHRAGM

$

$

Not available

393

Electrolux/AYP 225058

SCREEN-CARBURETOR

$

$

Not available

394

Electrolux/AYP 272538

DIAPHRAGM

$

$

Not available

414

Electrolux/AYP 220982

WASHER

$

$

Not available

432

Electrolux/AYP 221377

CAP, SPRING

$

$

Not available

433

Electrolux/AYP 93265

PIN, DIAPHRAGM COVER

$

$

Not available

434

Electrolux/AYP 213963

COVER, DIAPHRAGM

$

$

Not available

435

Electrolux/AYP 93141

SCREW, DIAPHRAGM

$

$

Not available

455

Electrolux/AYP 225121

CUP, STARTER

$

$

Not available

456

Electrolux/AYP 281503

RETAINER, STARTER

$

$

Not available

459

Electrolux/AYP 281505

PAWL, RATCHET

$

$

Not available

467

Electrolux/AYP 280715

KNOB, CONTROL

$

$

Not available

526

Electrolux/AYP 94914

SCREW, SEMS, TANK BRACKET MOUNT

$

$

Not available

527

Electrolux/AYP 223786

CLAMP BREATHER TUBE

$

$

Not available

528

Electrolux/AYP 231550

TUBE, BREATHER

$

$

Not available

529

Electrolux/AYP 67838

GROMMET, BREATHER TUBE

$

$

Not available

535

Electrolux/AYP 491435

FILTER, AIR

$

$

Not available

536

Electrolux/AYP 494279

AIR CLEANER KIT

$

$

Not available

542

Electrolux/AYP 94897

SCREW

$

$

Not available

552

Electrolux/AYP 231079

BUSHING, GOVERNOR CRANK

$

$

Not available

562

Electrolux/AYP 94907

BOLT, GOVENOR LEVEL

$

$

Not available

592

Electrolux/AYP 231978

NUT, HEX

$

$

Not available

608

Electrolux/AYP 692696

STARTER ASSEMBLY, REWIND

$

$

Not available

611

Electrolux/AYP 231068

PIPE FUEL

$

$

Not available

612

Electrolux/AYP 391813

FUEL PIPE AND CLIP ASSEMBLY

$

$

Not available

613

Electrolux/AYP 93935

SCREW, HEX HEAD

$

$

Not available

614

Electrolux/AYP 93306

COTTER, HAIR PIN

$

$

Not available

616

Electrolux/AYP 495243

CRANK, GOVERNOR

$

$

Not available

621

Electrolux/AYP 396847

SWITCH, STOP

$

$

Not available

623

Electrolux/AYP 94943

P/N CONFLICT - CHECK WITH SUPPLIER

$

$

Not available

634

Electrolux/AYP 271853

WASHER, THROTTLE SHAFT, FOAM

$

$

Not available

635

Electrolux/AYP 66538

ELBOW, SPARK PLUG

$

$

Not available

676

Electrolux/AYP 393757

DEFLECTOR, EXHAUST, SIDE OUTLET

$

$

Not available

679

Electrolux/AYP 270382

WASHER, FOAM

$

$

Not available

680

Electrolux/AYP 221839

WASHER, BRASS

$

$

Not available

689

Electrolux/AYP 263073

SPRING, RETAINER

$

$

Not available

741

Electrolux/AYP 262992

GEAR, TIMING

$

$

Not available

779

Electrolux/AYP 262570

LINK, SPEED CONTROL

$

$

Not available

780

Electrolux/AYP 225029

ANCHOR, SPRING

$

$

Not available

851

Electrolux/AYP 493880

TERMINAL, IGNITION CABLE

$

$

Not available

869

Electrolux/AYP 211787

SEAT, INTAKE VALVE, STANDARD

$

$

Not available

870

Electrolux/AYP 211172

SEAT, INTAKE VALVE, STANDARD

$

$

Not available

871

Electrolux/AYP 262001

GUIDE, EXHAUST VALVE

$

$

Not available

871

Electrolux/AYP 63709

GUIDE, INTAKE VALVE

$

$

Not available

883

Electrolux/AYP 272309

GASKET, EXHAUST

$

$

Not available

916

Electrolux/AYP 280321

RACK, GEAR CONTROL

$

$

Not available

966

Electrolux/AYP 492797

BASE, AIR CLEANER

$

$

Not available

967

Electrolux/AYP 491588

SUB= 3364

$6.49

$

In Stock, Qty 20+

0

968

Electrolux/AYP 495872

COVER, AIR CLEANER

$

$

Not available

969

Electrolux/AYP 490073

SCREW, COVER MOUNTING

$

$

Not available

971

Electrolux/AYP 94902

SCREW, HEX HEAD

$

$

Not available

987

Electrolux/AYP 398970

SEAL, THROTTLE SHAFT

$

$

Not available

995

Electrolux/AYP 225057

LEVER, BRACKET ASSY

$

$

Not available

1012

Electrolux/AYP 490507

RETAINER, LINK

$

$

Not available

1036

Electrolux/AYP 499345

LABEL KIT-EMISSIONS

$

$

Not available

1095

Electrolux/AYP 498529

VALVE OVERHAUL GASKET KIT

$

$

Not available

2500

Electrolux/AYP 137202-1114

ENGINE

$

$

Not available

Electrolux/AYP 491145

SHORTBLOCK

$

$

Not available
