3352 B99 - Electrolux/AYP Tiller (1999) BELT GUARD AND PULLEY ASSEMBLY Parts Diagram

Tiller

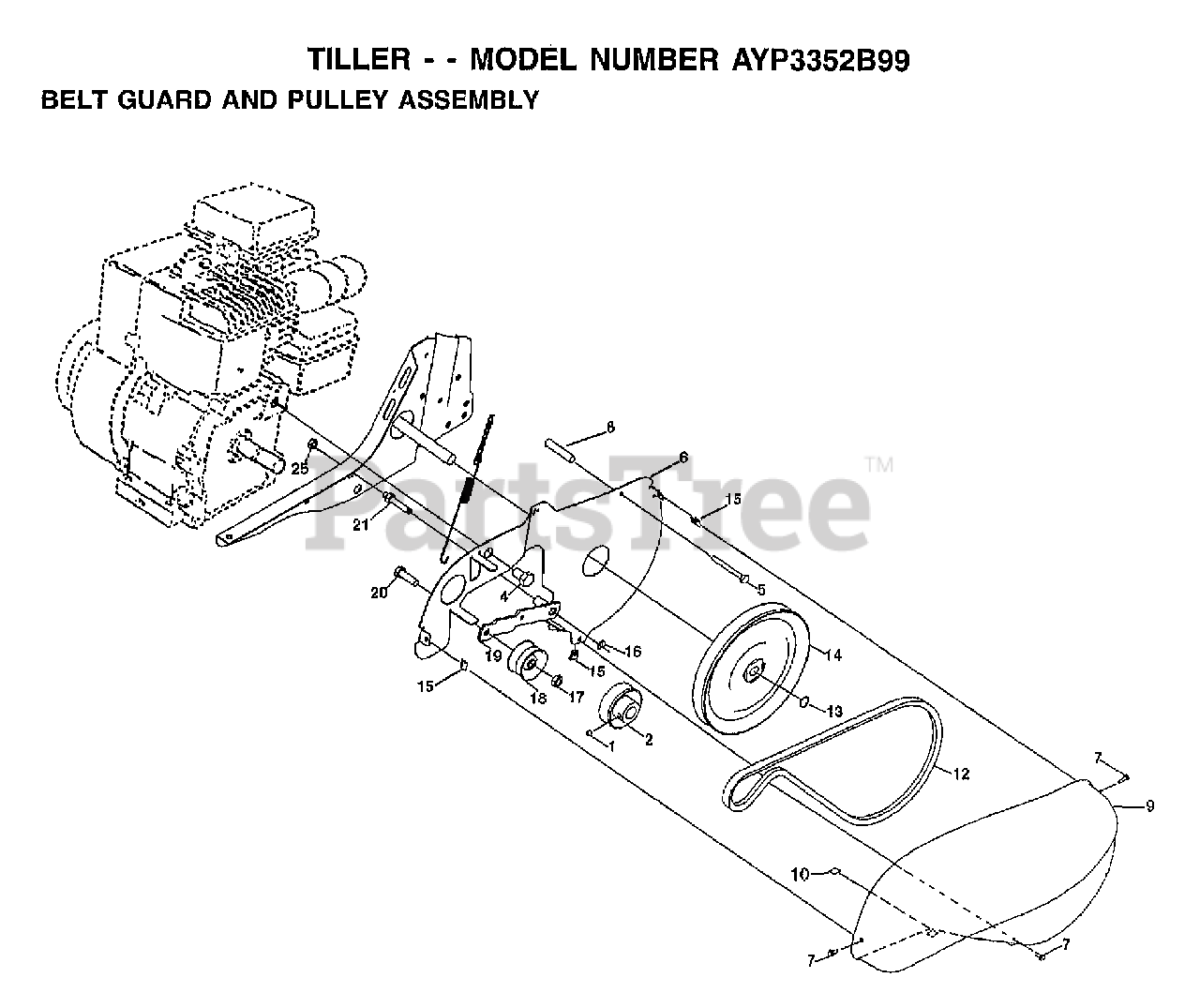

BELT GUARD AND PULLEY ASSEMBLY Parts Diagram

  • Title

1

Electrolux/AYP 23230506

SET SCREW
(Superseded to 823230506)

$4.99

$

In Stock, only 2 left!

0

2

Electrolux/AYP 130812

ENGINE PULLEY
(Superseded to 592642101)

$12.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 74610812

BOLT.HEX.HEAD
(Superseded to 583614001)

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 17490440

BOLT.ROLLER.1/4-20X2 1/2
(Superseded to 583789401)

$4.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 165770

SHEILD.INNER.GUARD
(Superseded to 583017301)

$12.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 165503

SCREW HX WSH.HD#8-18X1/2
(Superseded to 584450201)

$2.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 139155

SPACER.SPLIT
(Superseded to 532139155)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 165768X505

GUARD.PNT.BELT
(Superseded to 583687801)

$30.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 109227X

PAD IDLER TI
(Superseded to 532109227)

$3.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 9180R

V BELT STD
(Superseded to 532009180)

$30.99

$

In Stock, Qty 10

0

13

Electrolux/AYP 12000028

SUB= 2267J
(Superseded to 812000028)

$7.49

$

In Stock, Qty 20+

0

14

Electrolux/AYP 151223

SHEAVE.TRANS
(Superseded to 532151223)

$34.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 165504

NUT J CLIP #8
(Superseded to 574987901)

$

$

Not available

16

Electrolux/AYP 12000036

KLIP RING TI
(Superseded to 812000036)

$6.49

$

In Stock, only 1 left!

0

17

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

18

Electrolux/AYP 161806

"PULLEY,IDLER"
(Superseded to 532161806)

$31.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 162290

"ARM, IDLER"
(Superseded to 583005201)

$5.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

In Stock, only 3 left!

0

21

Electrolux/AYP 106968X

SHAFT IDLER TI
(Superseded to 532106968)

$15.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 73350500

JAM NUT TI
(Superseded to 873350500)

$8.99

$

Usually ships in 3-10 days

0
