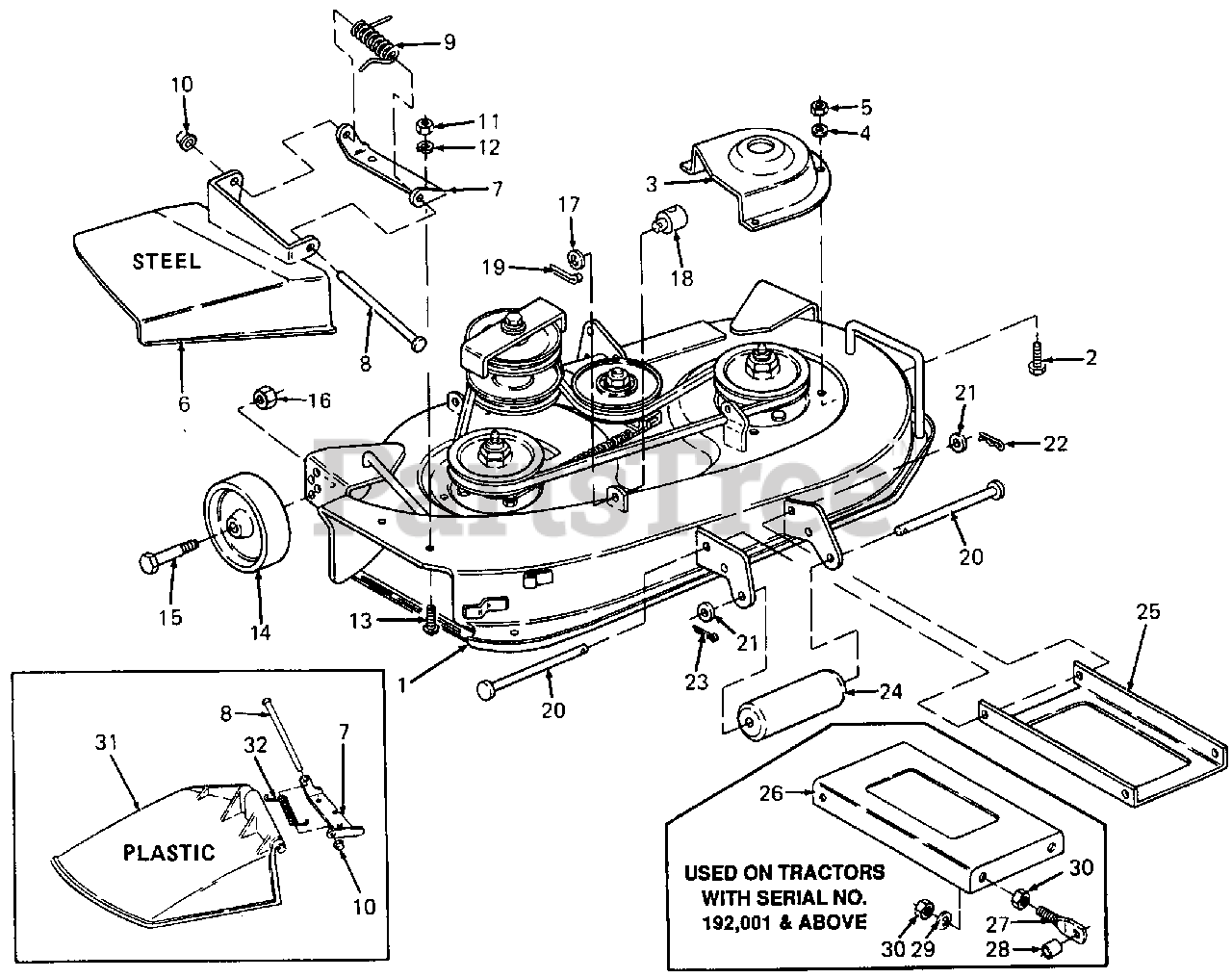

337 (190-337-100) - Cub Cadet 32" Mower Deck Deck & Attachments Parts Diagram

32" Mower Deck

Deck & Attachments Parts Diagram

  • Title

1

Cub Cadet 759-3414

Deck w/Graphics

Note: [Includes Ref No. 2 (Qty 3)]

$

$

Currently unavailable

Cub Cadet 777-6275

Graphic, Thrown Object

$

$

Currently unavailable

Cub Cadet 777-6665

Graphic, 32 in. Do Not Step

$

$

Not available

Cub Cadet 779-3454

Graphic, Manual PTO Warning

$

$

Not available

2

Cub Cadet 710-3021

Screw, Hex Cutting, 5/16-18 X .62 Lg

$

$

Not available

3

Cub Cadet 703-1651

Cover, Belt
(Superseded to 703-1651A-4021)

$

$

Not available

4

Cub Cadet 736-0275

Washer, Flat, .34 X .68 X .06 Thk

$7.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 759-3415

Chute Kit, w/ Graphic (Steel)

Note: [Includes Ref No. 7, 8, 9, 10, 11 (Qty 2), 12 (Qty 2) & 13 (Qty 2)]

$

$

Not available

Cub Cadet 777-2196

Graphic, Danger
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

7

Cub Cadet 703-1693

Bracket, Hinge Mounting
(Superseded to 703-1693A)

$24.99

$

In Stock, only 4 left!

0

8

Cub Cadet 711-3271

Pin, Hinge, .25 Dia X 4.9 Lg

$

$

Not available

9

Cub Cadet 732-0253

Spring, Torsion

$

$

Not available

10

Cub Cadet 726-0106

Nut, Cap Speed

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-0298

Nut, Hex Jam, 1/4-20
(Superseded to 912-0298)

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 16

0

13

Cub Cadet 710-0286

Screw, Truss Machine, 1/4-20 X .50 Lg

$4.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 734-3062

Wheel, Gage, 5 in. Dia

$22.99

$

In Stock, Qty 10

0

15

Cub Cadet 738-0373

Screw, Shoulder
(Superseded to 938-0373)

$9.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0266

Nut, Hex Center Lock Jam, 3/8-16
(Superseded to 712-0266A)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0185

Washer, Flat, .406 X .750 X .06 Thk

$4.49

$

In Stock, only 4 left!

0

18

Cub Cadet 711-0198

Ferrule
(Superseded to 911-0198)

$14.99

$

In Stock, only 2 left!

0

19

Cub Cadet 714-0144

Pin, Cotter

$

$

Not available

20

Cub Cadet 711-3068

Pin, Clevis, 1/2 Dia X 7.68 Lg

$21.99

$

In Stock, only 2 left!

0

21

Cub Cadet 736-0272

Washer, Flat, .510 X 1.0 X .06 Thk

$5.49

$

In Stock, Qty 20+

0

22

Cub Cadet 714-0149

Pin, Internal Cotter
(Superseded to 914-0149B)

$

$

Not available

23

Cub Cadet 714-3002

Pin, Cotter

$3.99

$

In Stock, Qty 7

0

24

Cub Cadet 731-3005

Roller, Front

$30.99

$

In Stock, Qty 20+

0

25

Cub Cadet 703-1293

Bracket, Deck Front Support
(Superseded to 703-1999-0498)

Note: (Used on Tractors w/Serial No. 192,000 & below)

$88.99

$

In Stock, only 1 left!

0

26

Cub Cadet 703-2108

Bracket, Deck Front Support

Note: (Used on Tractors w/Serial No. 192,001 & above)

$

$

Not available

27

Cub Cadet 711-3216

Eye Bolt

Note: (Used on Tractors w/Serial No. 192,001 & above)

$

$

Not available

28

Cub Cadet 711-0313

Sleeve

Note: (Used on Tractors w/Serial No. 192,001 & above)

$

$

Not available

29

Cub Cadet 736-0921

Washer, Lock, 1/2

Note: (Used on Tractors w/Serial No. 192,001 & above)

$4.99

$

In Stock, Qty 17

0

30

Cub Cadet 712-0206

Nut, Hex, 1/2-13 GR5

Note: (Used on Tractors w/Serial No. 192,001 & above)

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 759-3492

Chute Kit w/Graphic (Plastic)
(Superseded to 759-3492P)

Note: [Includes Ref No. 7, 8, 10, 11 (Qty 2), 12 (Qty 2), 13 (Qty 2) & 32]

$

$

Not available

Cub Cadet 777-2196

Graphic, Danger
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

32

Cub Cadet 732-0602

Spring, Torsion
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0
