338 XPT - Husqvarna Chainsaw (2010-02) Carburettor Parts Diagram

Chainsaw

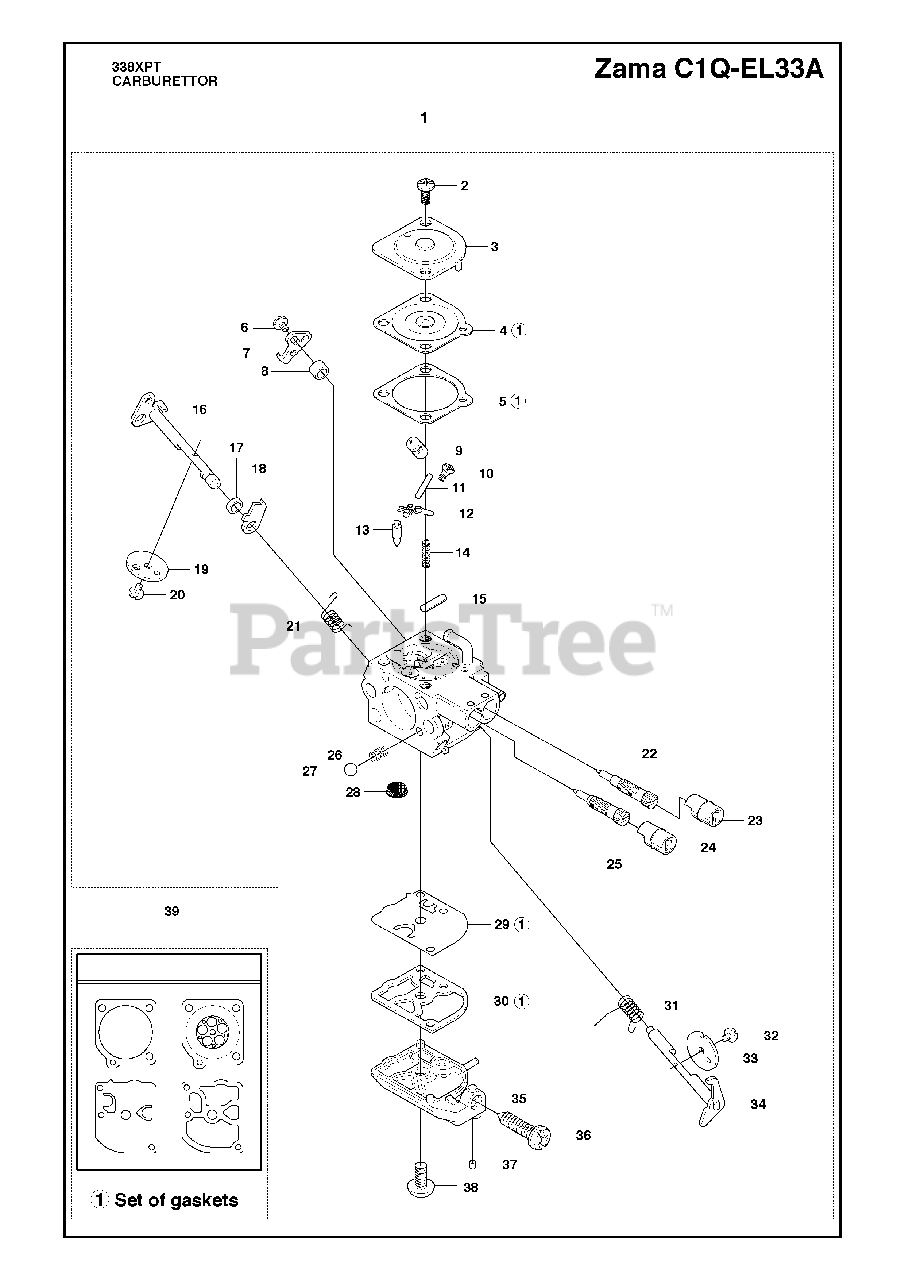

Carburettor Parts Diagram

  • Title

1

Husqvarna 544160901

CARBURETOR

$87.99

$

In Stock, only 1 left!

0

2

Husqvarna 503480501

SCREW

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 503974301

COVER

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 537048901

DIAPHRAGM

$9.99

$

In Stock, Qty 20+

0

5

Husqvarna 537020401

GASKET

$4.99

$

In Stock, Qty 10

0

6

Husqvarna 503479001

SCREW

$3.99

$

In Stock, Qty 11

0

7

Husqvarna 537274101

ARM

$5.58

$

Usually ships in 3-10 days

0

8

Husqvarna 503478901

SPACER

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 537413501

NOZZLE

$14.99

$

Usually ships in 3-10 days

0

10

Husqvarna 503480101

SCREW

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 503480001

PIN FULCRUM
(Superseded to 537020801)

$3.49

$

In Stock, only 1 left!

0

12

Husqvarna 503665901

LEVER

$3.99

$

In Stock, only 3 left!

0

13

Husqvarna 503479701

INLET NEEDLE

$8.99

$

In Stock, only 2 left!

0

14

Husqvarna 537273401

SPRING

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 503535601

PLUG

$7.49

$

In Stock, Qty 6

0

16

Husqvarna 537273801

SHAFT

$

$

Not available

17

Husqvarna 537274401

WASHER

$

$

Not available

18

Husqvarna 537274301

ARM

$

$

Not available

19

Husqvarna 537266801

CHOKE FLAP

$8.99

$

Usually ships in 3-10 days

0

20

Husqvarna 503481801

SCREW

$3.99

$

In Stock, only 1 left!

0

21

Husqvarna 537134901

SPRING

$2.49

$

Usually ships in 3-10 days

0

22

Husqvarna 537416901

IDLE SCREW

Note: L

$15.99

$

Usually ships in 3-10 days

0

23

Husqvarna 537417001

LIMITER CAP KIT

$7.49

$

Usually ships in 3-10 days

0

24

Husqvarna 537417001

LIMITER CAP KIT

$7.49

$

Usually ships in 3-10 days

0

25

Husqvarna 537387501

SCREW

Note: H

$13.41

$

Usually ships in 3-10 days

0

26

Husqvarna 537012601

SPRING

$3.99

$

In Stock, only 1 left!

0

27

Husqvarna 537012501

BALL

$3.99

$

In Stock, Qty 7

0

28

Husqvarna 503535701

STRAINER

$4.99

$

In Stock, only 4 left!

0

29

Husqvarna 537020001

PUMP DIAPHRAGM

$7.49

$

In Stock, Qty 5

0

30

Husqvarna 537020101

GASKET

$4.99

$

In Stock, Qty 15

0

31

Husqvarna 537019701

SPRING THROTTLE

$3.49

$

In Stock, only 1 left!

0

32

Husqvarna 503481801

SCREW

$3.99

$

In Stock, only 1 left!

0

33

Husqvarna 537388301

THROTTLE FLAP

$6.91

$

Usually ships in 3-10 days

0

34

Husqvarna 544119001

Shaft

$19.61

$

Usually ships in 3-10 days

0

35

Husqvarna 537273301

COVER

$33.45

$

Usually ships in 3-10 days

0

36

Husqvarna 537273701

SCREW

$13.84

$

Usually ships in 3-10 days

0

37

Husqvarna 503481101

PLUG

$10.99

$

Usually ships in 3-10 days

0

38

Husqvarna 503479601

SCREW

$3.99

$

In Stock, Qty 5

0

39

Husqvarna 531004552

GASKET KIT (ZAMA GND39)

Note: 1 = Set of gaskets

$10.99

$

Usually ships in 3-10 days

0
