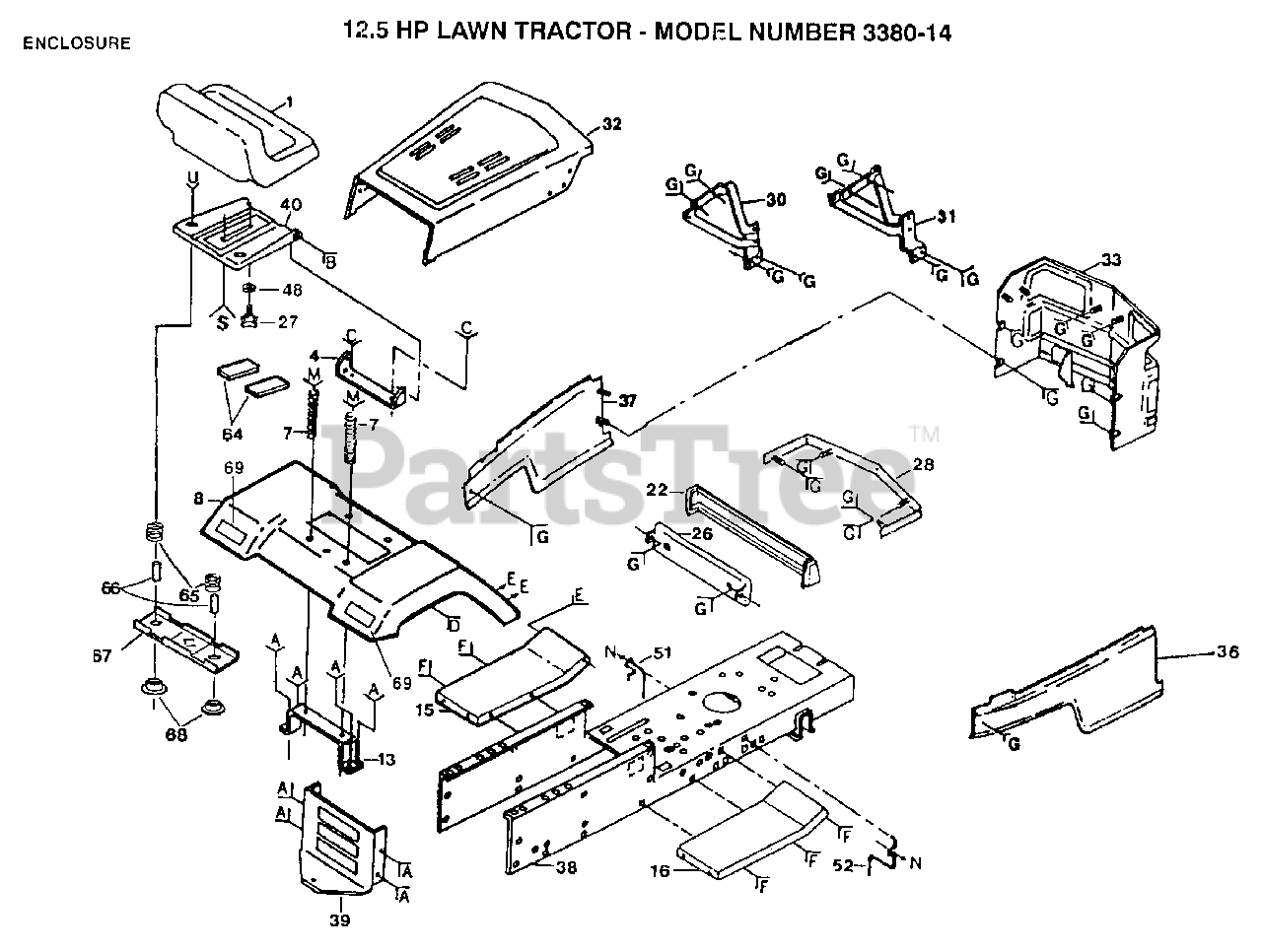

3380-14 - Electrolux/AYP Lawn Tractor (1991) ENCLOSURE Parts Diagram

Lawn Tractor

ENCLOSURE Parts Diagram

  • Title

1

Electrolux/AYP 127429X

SUB= 140121
(Superseded to 532401043)

$

$

Not available

7

Electrolux/AYP 124181X

SPRING COMPRESSIO
(Superseded to 587613301)

$6.49

$

In Stock, Qty 20+

0

8

Electrolux/AYP 109872X424

FENDER

$

$

Not available

13

Electrolux/AYP 109873X

SUB= 136619

$

$

Not available

15

Electrolux/AYP 105465X424

SUB= 145244X424

$

$

Not available

16

Electrolux/AYP 105464X424

SUB= 145243X424

$

$

Not available

22

Electrolux/AYP 124400X

SUB= 133954

$

$

Not available

26

Electrolux/AYP 110897X

SUB= 132257

$

$

Not available

27

Electrolux/AYP 120068X

"KNOB 1/2"" YT"
(Superseded to 532166369)

$10.99

$

In Stock, only 3 left!

0

28

Electrolux/AYP 109745X424

"STRAP,GRILL"

$3.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 105797X

"HINGE,HOOD,LH T"

$

$

Not available

31

Electrolux/AYP 105792X

"HINGE,HOOD,RH T"

$

$

Not available

32

Electrolux/AYP 105682X424

SUB= 128561X424

$

$

Not available

33

Electrolux/AYP 128312

GRILL

$

$

Not available

36

Electrolux/AYP 106927X424

"PANEL,SIDE RH"

$6.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 106929X424

"PANEL,SIDE LH"

$6.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 127168X

CHASSIS ASS'Y

$

$

Not available

39

Electrolux/AYP 127866

DRAWBAR LT/YT
(Superseded to 532121306)

$

$

Not available

40

Electrolux/AYP 124294X

SUB= 155925

$

$

Not available

48

Electrolux/AYP 19171912

WASHER
(Superseded to 819171912)

$7.49

$

In Stock, only 2 left!

0

51

Electrolux/AYP 121440X

BELT GUIDE
(Superseded to 532121440)

$

$

Not available

52

Electrolux/AYP 121441X

BELT GUIDE
(Superseded to 131402)

$

$

Not available

64

Electrolux/AYP 121251X

STRIP FORM
(Superseded to 532121251)

$

$

Not available

65

Electrolux/AYP 123740X

SPRING COMPRESSED
(Superseded to 532123740)

$6.49

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 121249X

SPACER SPLIT
(Superseded to 532121249)

$6.49

$

In Stock, Qty 5

0

67

Electrolux/AYP 121246X

BRKT SWITCH
(Superseded to 532174648)

$8.99

$

In Stock, only 1 left!

0

68

Electrolux/AYP 121248X

BUSHING
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 106202

SUB= 106202X

$

$

Not available

Electrolux/AYP 129685

DECAL, HOOD

$

$

Not available

Electrolux/AYP 109199X

SUB= 146046
(Superseded to 582965201)

$4.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 129686

DECAL, HOOD

$

$

Not available
