339 (190-339-100) - Cub Cadet Dethatcher Attachment (1996) att Tine De-Thatcher Parts Diagram

Dethatcher Attachment

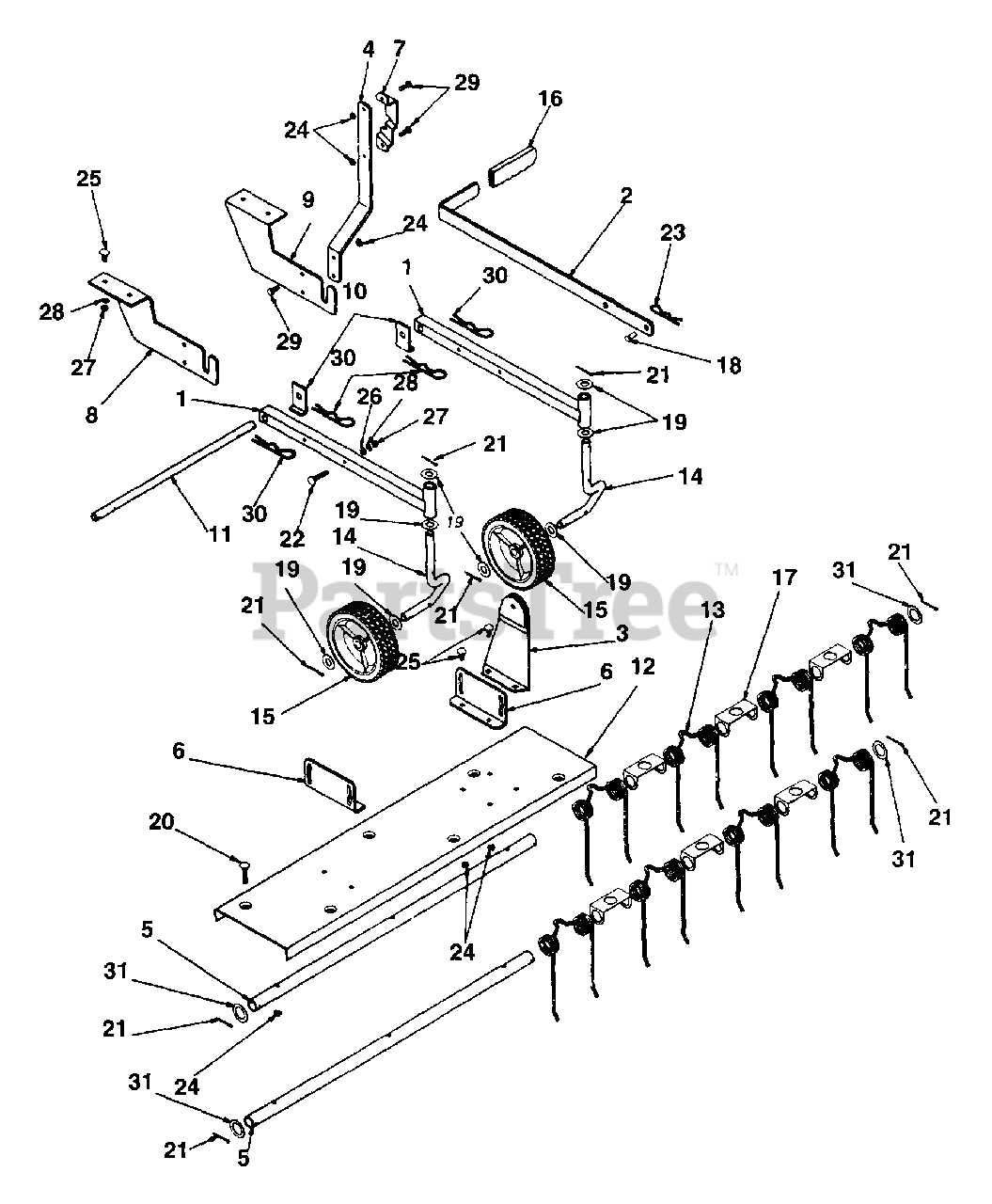

Tine De-Thatcher Parts Diagram

  • Title

1

Cub Cadet AF-62599

Arm, Mounting

$

$

Not available

2

Cub Cadet AF-62608

Handle, Lift

$

$

Not available

3

Cub Cadet AF-62601

Bracket, Lift Handle

$

$

Not available

4

Cub Cadet AF-23674

Arm, Lift Handle

$

$

Not available

5

Cub Cadet AF-23680

Tube, Spring Mounting

$

$

Not available

6

Cub Cadet AF-23666

Bracket, Angle Mounting

$

$

Not available

7

Cub Cadet AF-23673

Bracket, Handle Lock

$

$

Not available

8

Cub Cadet AF-23690

Bracket, R.H.- Hitch

$

$

Not available

9

Cub Cadet AF-23689

Bracket, L.H.- Hitch

$

$

Not available

10

Cub Cadet AF-23676

Keeper, Plate

$

$

Not available

11

Cub Cadet AF-23677

Shaft, Mounting

$

$

Currently unavailable

12

Cub Cadet AF-23679

Shield, Spring Mounting

$

$

Not available

13

Cub Cadet AF-43783

Spring, De-Thatcher

$

$

Not available

14

Cub Cadet AF-44148

Axle

$

$

Not available

15

Cub Cadet AF-44213

Wheel, Cream

$

$

Not available

16

Cub Cadet AF-43943

Grip, Lift Handle

$

$

Not available

17

Cub Cadet AF-44207

Bracket, Spring

$

$

Not available

18

Cub Cadet AF-44044

Pin, Clevis, 3/8" Dia. x .75" Lg.

$1.49

$

Usually ships in 3-6 days

0

19

Cub Cadet AF-R19212016

Washer, Pivot

$1.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-0262

Bolt, Carriage, 5/16-18 x 1.50" Lg.

$3.99

$

In Stock, Qty 14

0

21

Cub Cadet 714-0144

Pin, Cotter, 1/8" Dia. x 1.00" Lg.

$

$

Not available

22

Cub Cadet 710-0458

Bolt, Carriage, 5/16-18 x 1.75" Lg.

$4.49

$

In Stock, only 4 left!

0

23

Cub Cadet HA-3430

Pin, Quick Attach
(Superseded to AF-47134)

$6.49

$

In Stock, only 2 left!

0

24

Cub Cadet 712-0158

Nut, Hex Center Lock, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

25

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet AF-43081

Washer, Flat
(Superseded to 936-0159)

$

$

Not available

27

Cub Cadet 712-0267

Nut, Hex, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 x .75" Lg. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet AF-43343

Cotter, Hairpin, 1/8" Dia.

$11.99

$

Usually ships in 3-6 days

0

31

Cub Cadet AF-43601

Washer, Flat

$8.99

$

Usually ships in 3-6 days

0
