339 XP - Husqvarna Chainsaw (SN: 20100600001 & Above) CARBURETOR Parts Diagram

Chainsaw

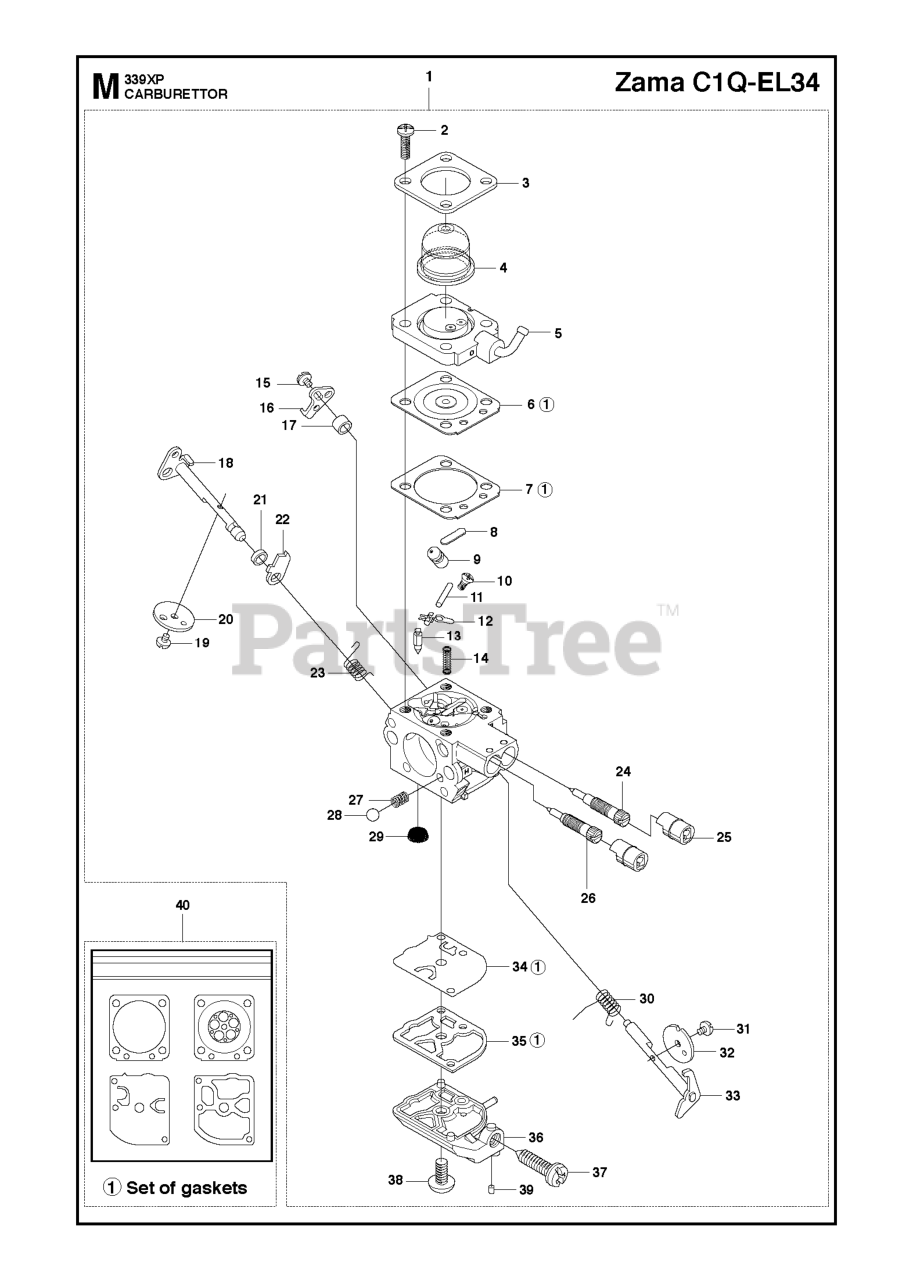

CARBURETOR Parts Diagram

  • Title

17

Husqvarna 503478901

SPACER

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 537416901

IDLE SCREW

$10.99

$

Usually ships in 3-10 days

0

4

Husqvarna 537275001

PURGE

$

$

Not available

36

Husqvarna 537273301

COVER

$

$

Not available

37

Husqvarna 537273701

SCREW

$

$

Not available

16

Husqvarna 537274101

ARM

$

$

Not available

14

Husqvarna 537273401

SPRING

$

$

Not available

31

Husqvarna 503481801

SCREW

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 503665901

LEVER

$4.99

$

In Stock, only 1 left!

0

6

Husqvarna 537274501

DIAPHRAGM

$

$

Not available

26

Husqvarna 537387501

SCREW

$

$

Not available

22

Husqvarna 537274301

ARM

$

$

Not available

28

Husqvarna 537012501

BALL

$4.99

$

In Stock, Qty 6

0

38

Husqvarna 503479601

SCREW

$6.99

$

In Stock, Qty 5

0

21

Husqvarna 537274401

WASHER

$

$

Not available

2

Husqvarna 537274801

SCREW

$

$

Not available

33

Husqvarna 537273101

SHAFT

$

$

Not available

10

Husqvarna 503480101

SCREW

$3.49

$

Usually ships in 3-10 days

0

39

Husqvarna 503481101

PLUG

$4.99

$

In Stock, only 1 left!

0

30

Husqvarna 537019701

SPRING THROTTLE

$5.99

$

In Stock, only 1 left!

0

1

Husqvarna 544112501

CARBURETOR

Note: Zama C1Q-EL34

$

$

Not available

9

Husqvarna 537413501

NOZZLE

$

$

Not available

40

Husqvarna 537241801

GASKET SET

Note: 1 = Set of gaskets

$

$

Not available

11

Husqvarna 503480001

PIN RETAINING SCREW
(Superseded to 537020801)

$3.49

$

In Stock, only 1 left!

0

18

Husqvarna 537273801

SHAFT

$

$

Not available

34

Husqvarna 537020001

PUMP DIAPHRAGM

$9.49

$

In Stock, only 2 left!

0

7

Husqvarna 537274601

GASKET

$

$

Not available

19

Husqvarna 503481801

SCREW

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 503535601

PLUG

$4.99

$

In Stock, Qty 6

0

23

Husqvarna 537274001

SPRING

$

$

Not available

25

Husqvarna 537417001

LIMITER CAP KIT

$11.99

$

Usually ships in 3-10 days

0

5

Husqvarna 537274701

COVER

$

$

Not available

3

Husqvarna 537274901

WASHER

$

$

Not available

35

Husqvarna 537020101

GASKET

$4.99

$

In Stock, Qty 11

0

13

Husqvarna 503479701

INLET NEEDLE

$11.99

$

In Stock, Qty 5

0

29

Husqvarna 503535701

STRAINER

$5.49

$

In Stock, only 2 left!

0

15

Husqvarna 503479001

SCREW

$3.49

$

In Stock, Qty 7

0

32

Husqvarna 537388301

THROTTLE FLAP

$

$

Not available

20

Husqvarna 537273901

WASHER

$

$

Not available

27

Husqvarna 537012601

SPRING

$3.49

$

Usually ships in 3-10 days

0
