33ABA7KS766 (42 E) - Troy-Bilt 42" Super Bronco XP Lawn Tractor, Electric (2023) Dash Parts Diagram

42" Super Bronco XP Lawn Tractor, Electric

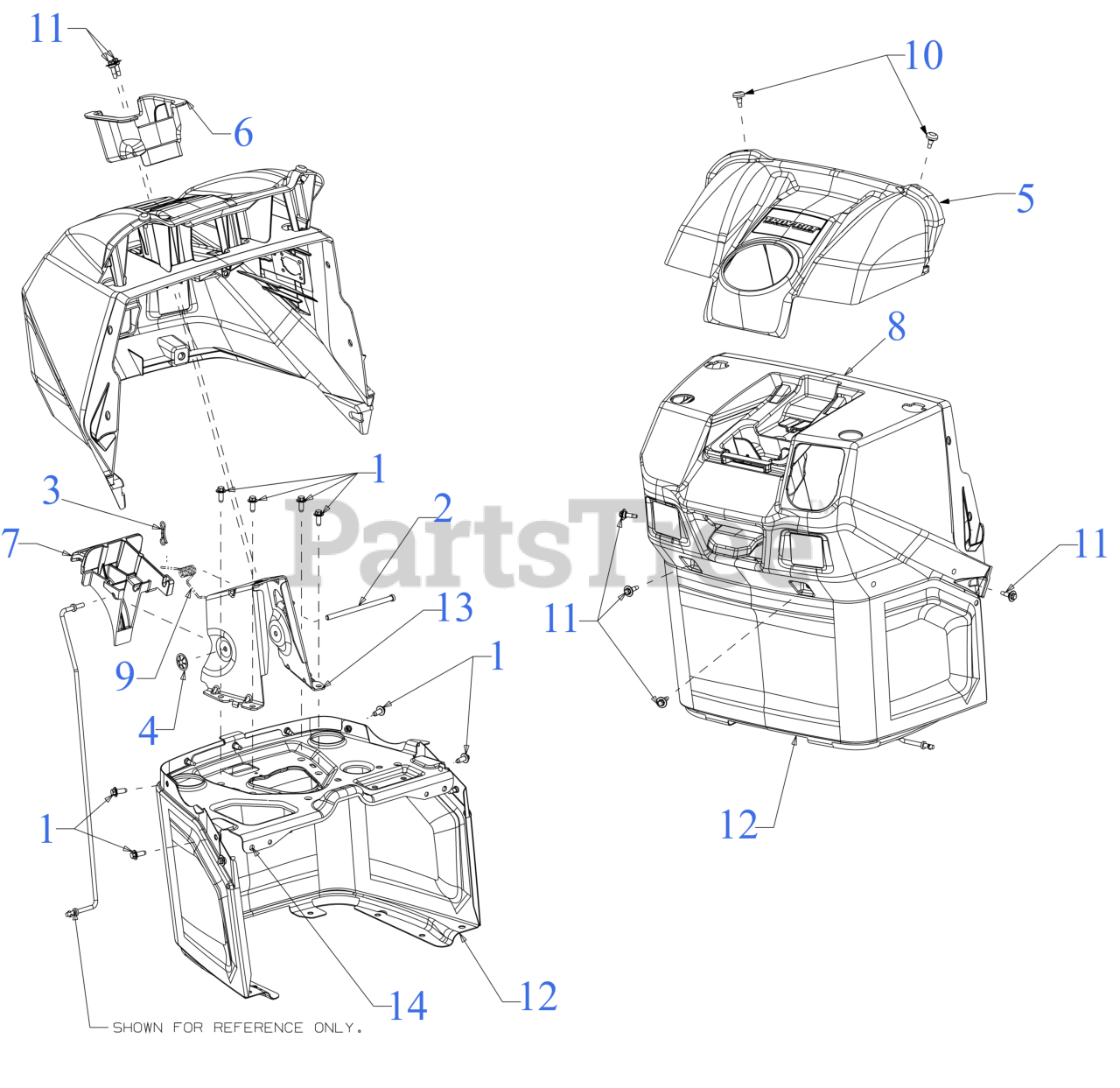

Dash Parts Diagram

  • Title

1

Troy-Bilt 710-06133

SCREW M6-1 x .625

Note: TORQUE TO 55-67 IN-LBS

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 711-06378

HINGE PIN .25 x 4.50

$4.49

$

Usually ships in 3-6 days

0

3

Troy-Bilt 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 726-04012

PUSH ON NUT

$7.49

$

In Stock, only 4 left!

0

5

Troy-Bilt 931-10613C

UPPER DASH CAP

$45.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 731-10618

STEERING SHAFT BEARING

$15.99

$

In Stock, Qty 9

0

7

Troy-Bilt 731-13519

BRAKE LEVER

$7.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 731P26296A

DASHBOARD (UPPER) (NO USB)

$74.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 732-05199

TORSION SPRING .330 ID

$3.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 735-0199A

RUBBER BUMPER

$8.49

$

In Stock, Qty 18

0

11

Troy-Bilt 738-05090

SHOULDER SCREW M6-1 .368 X.115

$3.49

$

In Stock, only 1 left!

0

12

Troy-Bilt 783-08391B

LOWER DASH

Note: *CHOOSE COLOR WHEN ORDERING*

$51.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 783-08538A

STEERING MOUNT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

783-08538A-0637

Troy-Bilt 783-08538A-0637

Steering Bearing Mounting Bracket - POWDER BLACK (0637)

$33.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 783-09546B

DASH/FUEL TANK PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

$23.99

$

Usually ships in 3-6 days

0
