33ABA7KS766 (42 E) - Troy-Bilt 42" Super Bronco XP Lawn Tractor, Electric (2023) Electrical Parts Diagram

42" Super Bronco XP Lawn Tractor, Electric

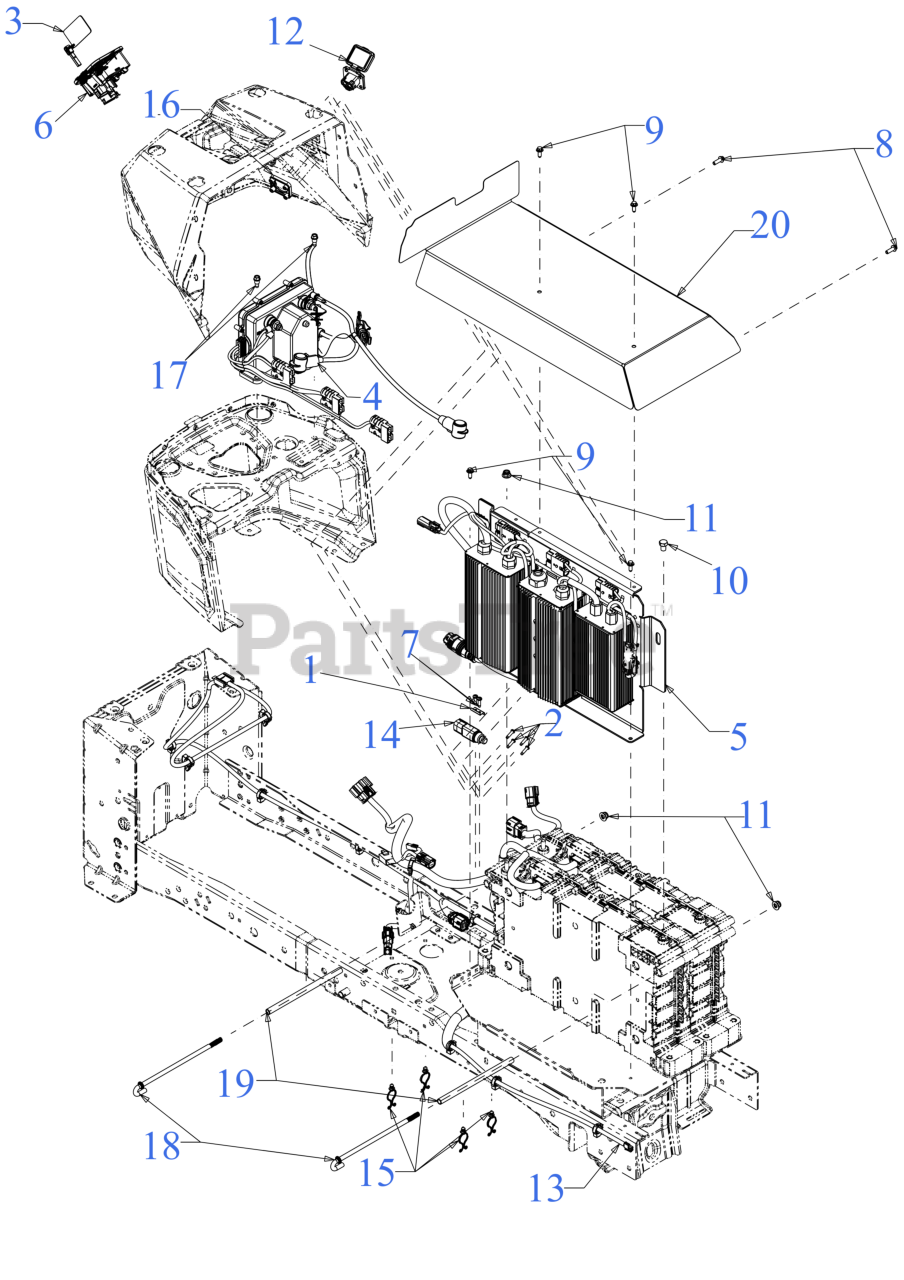

Electrical Parts Diagram

  • Title

1

Troy-Bilt 17962

PLATE-SWITCH

$5.49

$

In Stock, Qty 12

0

2

Troy-Bilt 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 625-06990A

MAGNETIC KEY
(Superseded to 625-06990B)

$12.99

$

In Stock, Qty 16

0

4

Troy-Bilt 625P08310B

PDM HOUSING ASSEMBLY

$404.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 625P08838

MOTOR PANEL

$2408.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 625P08881

VCM SWITCH (UL G2)

Note: (10/1/2023 & Before)

$477.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 625P09023

SWITCH ASSEMBLY

Note: (10/1/2023 & After)

$413.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 791-182195

SCREW #10-24X11/16 T-25

Note: TORQUE 30-45 IN-LB

$7.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-05108

SCREW 1/4 x .750

Note: TORQUE 45-55 IN-LBS

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-06133

SCREW M6-1 x .625

Note: TORQUE 100-125 IN-LB

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-08794

SCREW 3/8-24 x .50" GR5 STD

Note: TORQUE 90-110 IN-LB

$2.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 725P17073B

CHARGER PORT HARNESS (8-PIN)
(Superseded to 725P17073C)

$202.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 725P17131A

HARNESS (VCM/PDM/GEN2)

$245.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 929-05136

SEALED PLUNGER SWITCH

$45.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 729-07541

TWIST LOCK CLIP

$3.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 731-26236

CHARGING PORT ADAPTER

$10.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 738-04425

SHOULDER SCREW

Note: TORQUE 70-85 IN-LB

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 747-08510A

BATTERY ROD

$19.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 750-08150

SPACER- .322" x .438" x 7.71"

$7.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 783-13967

BATTERY COVER

Note: *CHOOSE COLOR WHEN ORDERING*

$116.99

$

Usually ships in 3-6 days

0
