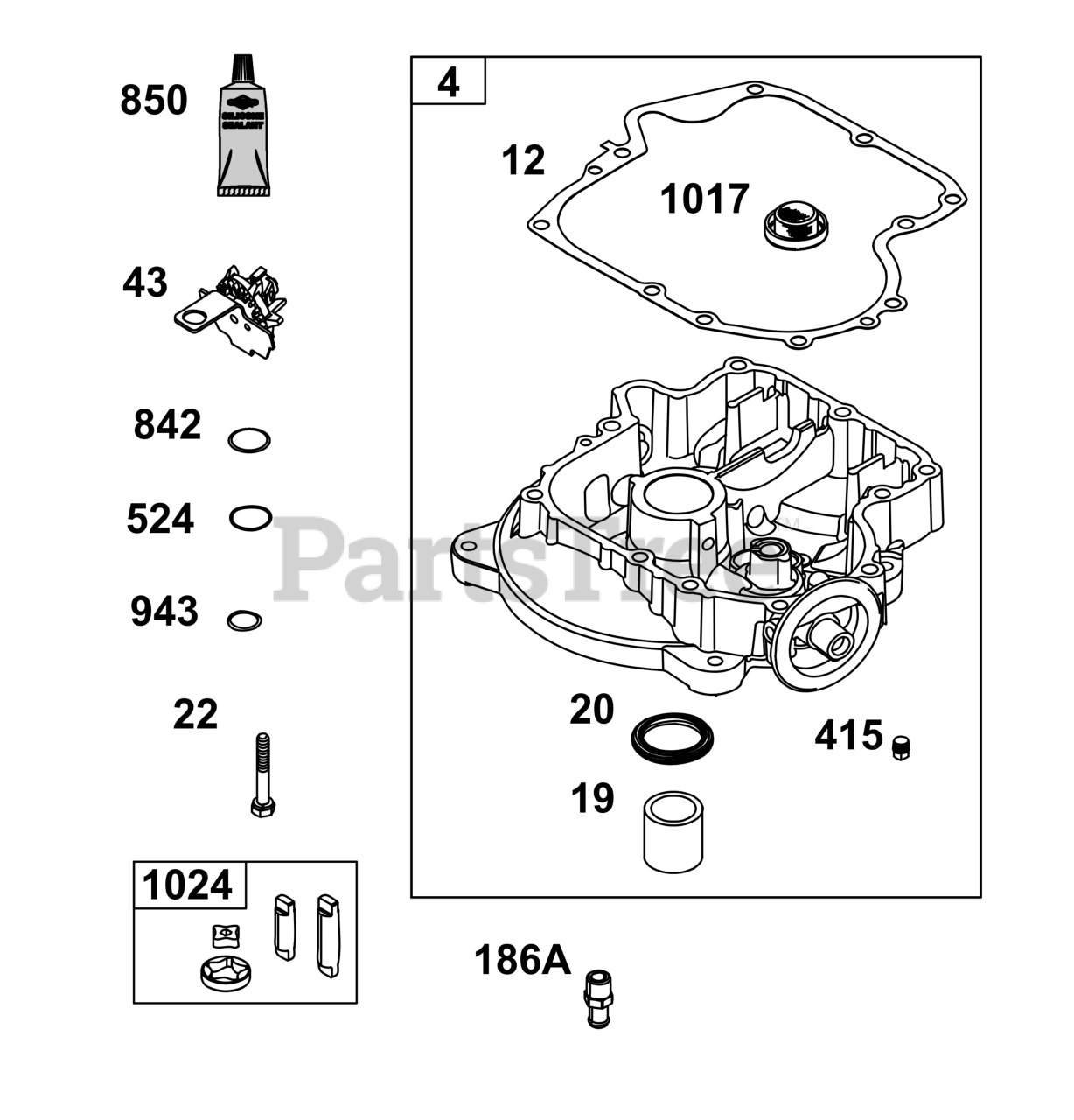

33S877-0044-G1 - Briggs & Stratton Vertical Engine Crankcase Cover/Sump Group Parts Diagram

Vertical Engine

Crankcase Cover/Sump Group Parts Diagram

  • Title

4

Briggs & Stratton 591009

SUMP, Engine

$325.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 697110

GASKET, Crankcase

$7.99

$

In Stock, Qty 20+

0

19

Briggs & Stratton 591010

KIT, Bushing/Seal

Note: (PTO Side)

$24.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton 795387

SEAL, Oil

Note: (PTO Side)

$7.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 692125

SCREW

Note: (Crankcase Cover/Sump)

$4.99

$

In Stock, only 3 left!

0

43

Briggs & Stratton 691968

SLINGER, Governor/Oil

Note: (Part information located in Lubrication Group.)

$41.99

$

In Stock, Qty 6

0

186A

Briggs & Stratton 796532

CONNECTOR, Hose

$11.99

$

In Stock, only 4 left!

0

415

Briggs & Stratton 794903

PLUG

$5.99

$

In Stock, Qty 8

0

524

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

842

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

850

Briggs & Stratton 100106

SEALANT, Liquid

$14.99

$

In Stock, only 3 left!

0

943

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

1017

SCREEN, Oil Pump

Note: (Part information located in Lubrication Group.)

$

$

Not available

1024

PUMP, Oil

Note: (Part information located in Lubrication Group.)

$

$

Not available
